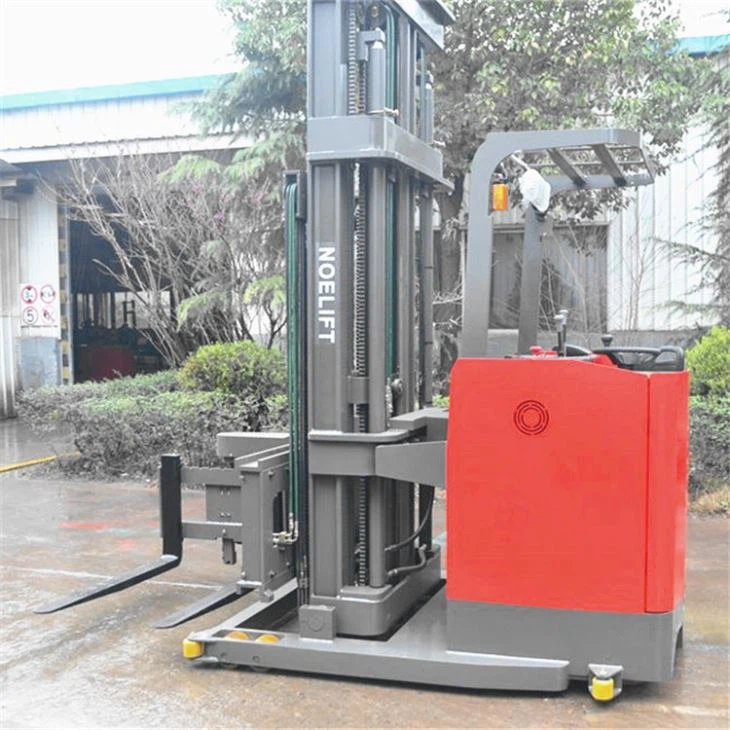

Narrow Aisle Stacker 3 Way Forklift Truck 9.5m Reach Height
Narrow Aisle Stacker 3 Way Forklift Truck 9.5m Reach Height suppliers
Narrow Aisle Stacker 3 Way Forklift Truck 9.5m Reach Height factory
Narrow Aisle Stacker 3 Way Forklift Truck 9.5m Reach Height Manufacturers
Narrow Aisle Stacker 3 Way Forklift Truck 9.5m Reach Height for sale
Narrow Aisle Stacker 3 Way Forklift Truck 9.5m Reach Height
Advantages:
1,Japan TCM forklift system technology, a leading international level.
2,the forklift with the principle of human engineering, fully humanized design.
3, the entire forklift used Japanese imports of seal, bearing and electrical components, further to ensure the reliability of the forklift
Certification:
Our factory :
| Specification | ||||
| Manufacturer | - | Noelift | Noelift | |
| Operation type | - | Standing posture | Standing posture | |
| Model | - | TC10-60 | TC15-60 | |
| Power type | - | Full-Electric | Full-Electric | |
| Capacity | kg | 1000 | 1500 | |
| Max lifting height | mm | 6000 | 6000 | |
| Load center | mm | 500 | 500 | |
| Wheel type | - | Pu solid tire | Pu solid tire | |
| Fork dimensions | mm | 1070*100*35 | 1070*125*50 | |
| Fork spread | - | 260-820 | 265-760 | |
| Overall length including fork | mm | 2890 | 3010 | |
| Overall width | mm | 1370 | 1550 | |
| Height-mast Lowered | mm | 3250 | 3125 | |
| Turning radius | mm | 1880 | 2000 | |
| The height of overhead guards | mm | 2325 | 2280 | |
| Min ground clearance | mm | 40 | 40 | |
| Max travel speed | km/h | 7.0/8.0 | 6.8/7.8 | |
| Lifting speed | mm/s | 180/315 | 120/270 | |
| Total weight | kg | 5250 | >5600 | |
| Driving wheel | mm | Φ380×165 | Ø382*142 | |
| front wheel | mm | Φ140×100 | Ø145*100 | |
| Balance wheel | mm | Φ204×76 | Ø180*76 | |
| Battery capacity | V/Ah | 48V /400 AH | 48/400 | |
| Charger-intelligent | V/A | 48V /50 A | 48/50 | |
| Driving motor | kw | 5.5 (AC) | 5.0(AC) | |
| Lifting motor | kw | 7.5 | 7.5(DC) | |
| Transmission controller type | - | Electric | Electric | |
| Walking adjustable type | - | Holzer type accelerator | Holzer type accelerator | |
| Braking type | - | Electromagnetic | Electromagnetic | |
Hot Tags: narrow aisle stacker 3 way forklift truck 9.5m reach height, China narrow aisle stacker 3 way forklift truck 9.5m reach height manufacturers
