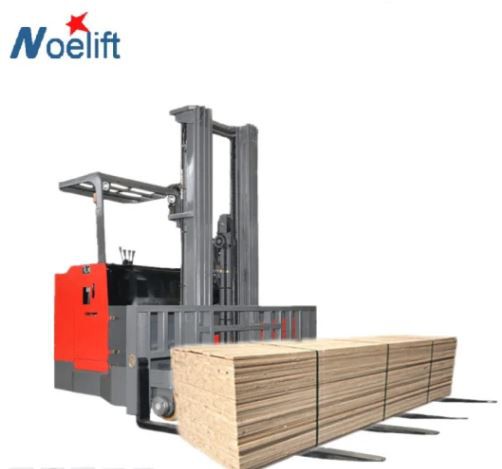

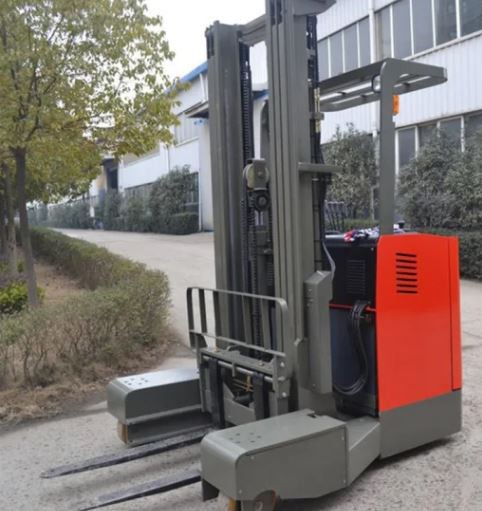

Vna 4 Way Electric Reach Truck Forklift
Low noise and non-pollution electricity enegy adopted ensure Noelift 4-direction electric reach truck Environment-Friendly.
Send Inquiry
Product Introduction
DETAILS
PS: color monitor+camera equipped when lift height ≥4.5m.
SPECIFICATIONS
| Manufacturer/brand | NOELIFT | ||
| Description | 4-direction electric reach truck | ||
| Model | TFB15 | TFB20 | TFB25 |
| Loading capacity Kg | 1500 | 2000 | 2500 |
| Loading center mm | 500 | 500 | 500 |
| Lifting height mm | 3000 | 3000 | 3000 |
| Fork size mm | 1070×100×35 | 1070×100×45 | 1070×100×45 |
| Overall length(with forks) mm | 2267 | 2488 | 2488 |
| Overall width mm | 1640 | 1800 | 1800 |
| Overhead guard height mm | 2320 | 2320 | 2320 |
| Mast forwarding length mm | 545 | 710 | 710 |
| Total weight(with battery) Kg | 2808 | 3480 | 3814 |
| Battery Ah | 48V/300Ah | 48V/400Ah | 48V/400Ah |
| Driving motor Kw | 5.5(AC) | 5.5(AC) | 5.5(AC) |
| Lifting motor Kw | 6.3 | 7.5 | 7.5 |
| Mast | Full free | Lifting height | Lowered height of mast | Free lift height | Loading capacity @ MAX. height | |
| TFB15 | TFB20 | |||||
| Duplex | NO | 3000mm | 2120mm | 0mm | 1500kg | 2000kg |
| NO | 3500mm | 2370mm | 0mm | 1200kg | 1500kg | |
| NO | 4000mm | 2620mm | 0mm | 1000kg | 1200kg | |
| Triplex | YES | 5000mm | 2340mm | 1670mm | 900kg | 1000kg |
| YES | 5500mm | 2450mm | 1850mm | 800kg | 900kg | |
| YES | 6000mm | 2680mm | 2000mm | 700kg | 800kg | |
