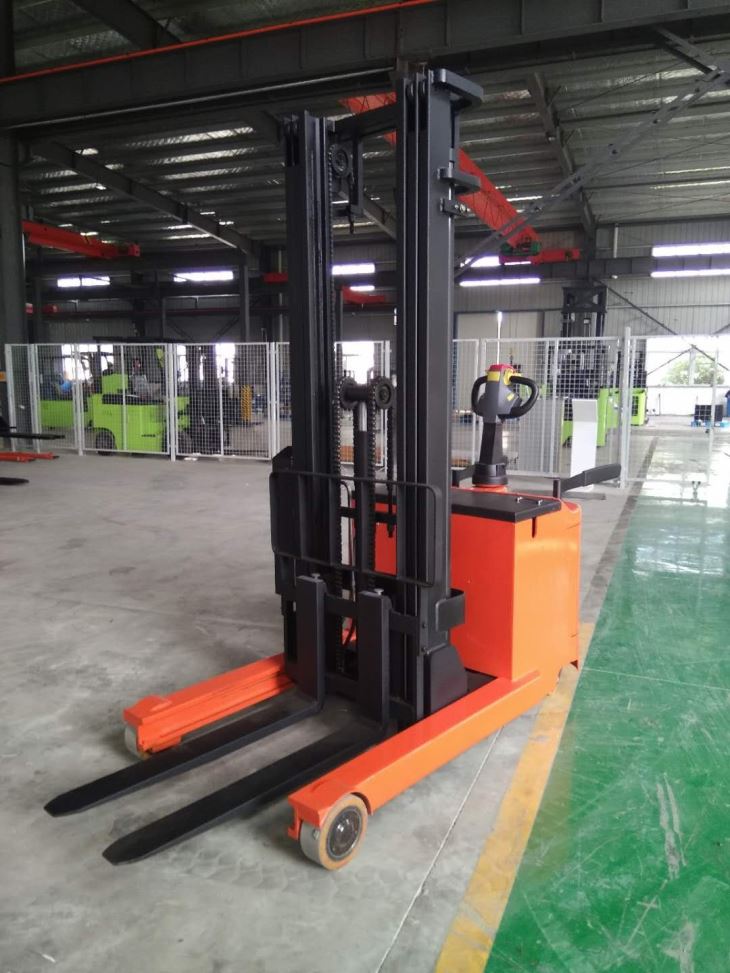

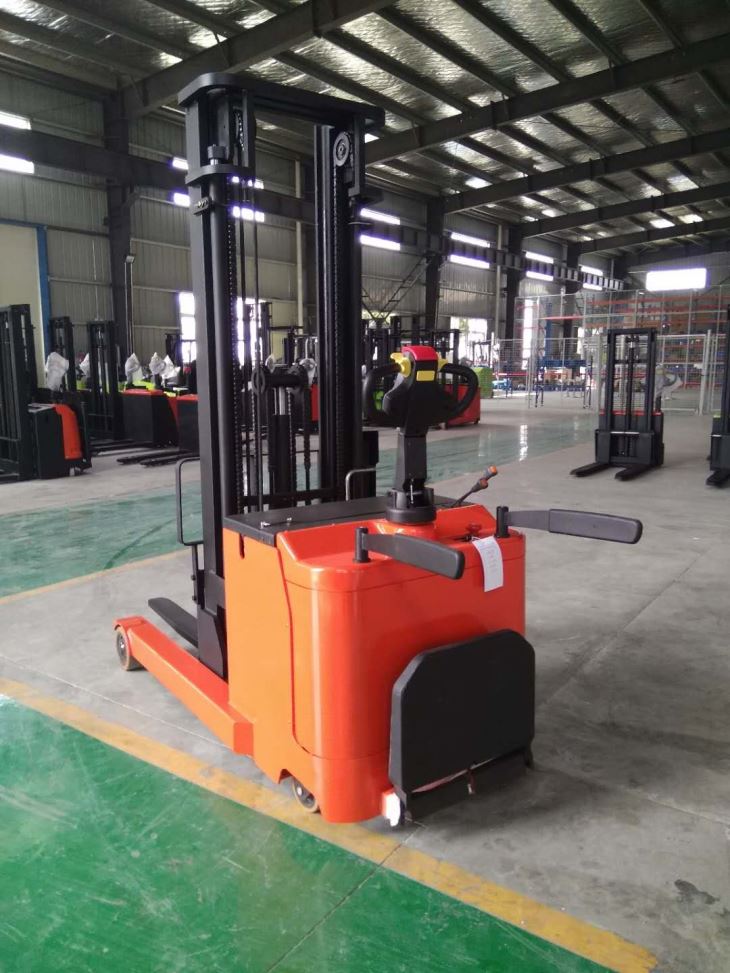

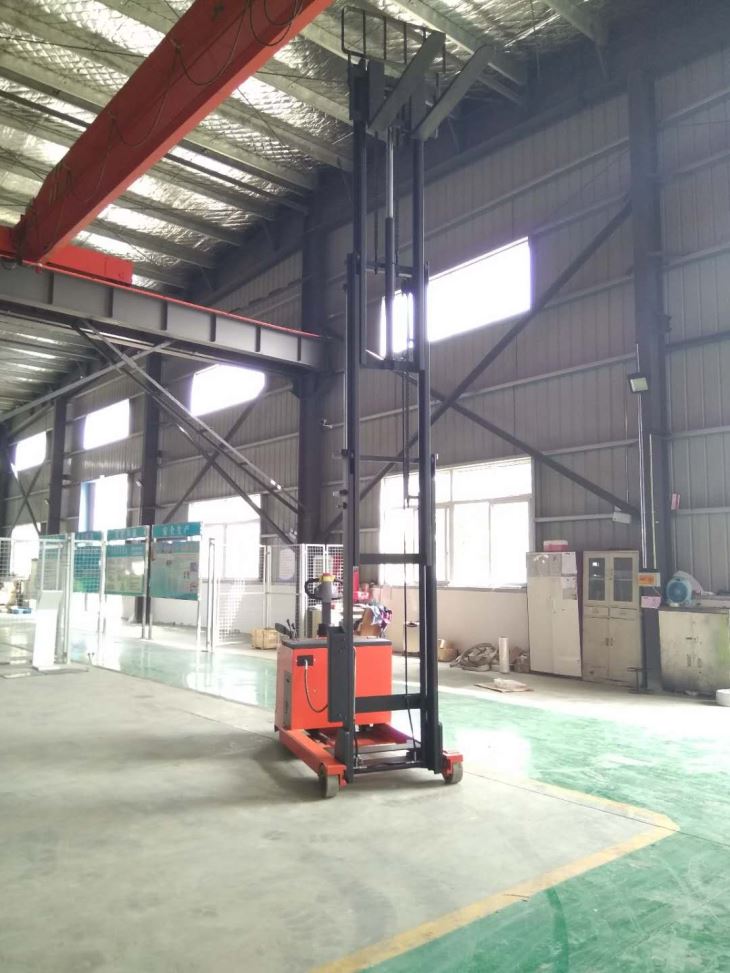

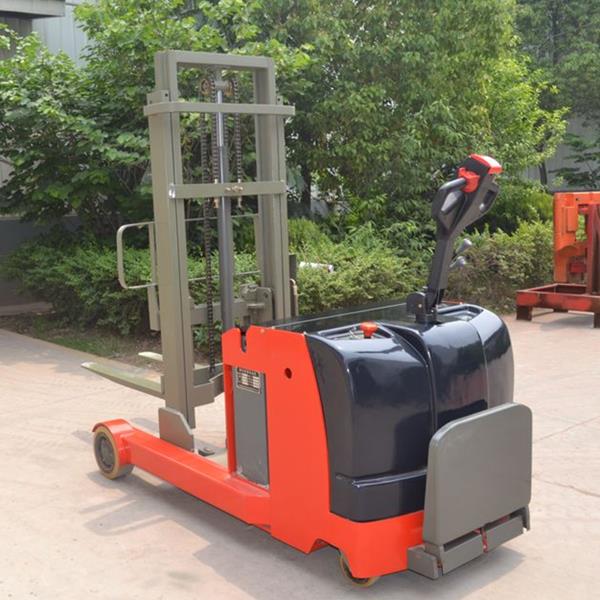

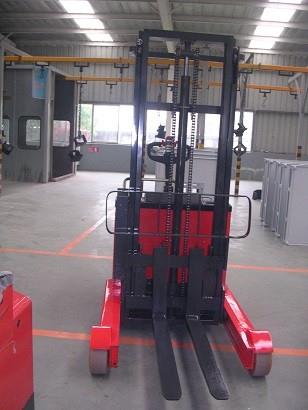

China Cheap Factory Price Electric Reach Truck(24V)
TFA Series rated Load Capacity: 1000-2000kg,
lift height: 3000mm; Max. lifting height is 5500mm.
Electric reach stacker Specifications
24V Electric reach stacker
TFA Series rated Load Capacity: 1000-2000kg,
lift height: 3000mm; Max. lifting height is 5500mm.
1.Speed Limited for high position,to aviod the possibility of products' overturning when high speed in high position;
2.Curve safe control,the forklift will reduce the speed automatic when turning, to aviod the ejection of operator and products from the vehicle by the high speed;
3.Regenerative braking function to reduce the operation cost;
4.Safe cutoff valve,to protect the operator and goods in well condition; 5.Shock Absorption of Pedal,to ensure the comfortable of working and reduce the fatigue.
Specifiction parameters
| Standard特性 | |||||
| 1.1 | Brand | NOELIFT | NOELIFT | NOELIFT | |
| 1.2 | Model | TFA15 (Single cylinder, single mast) (Single cylinder, duplex mast) |
TFA15 (Double cylinders, duplex mast) |
TFA15 (Triplex mast) |
|
| 1.3 | Power type | Battery | Battery | Battery | |
| 1.4 | Operation type | Stand-on | Stand-on | Stand-on | |
| 1.5 | Rated capacity | Q(kg) | 1500 | 1500 | 1500 |
| 1.6 | Load center | C(mm) | 500 | 500 | 500 |
| 1.7 | Front overhang | x(mm) | 120 | 130 | 130 |
| 1.8 | Wheelbase | y(mm) | ≤1480 | ≤1480 | ≤1480 |
| Weight重量 | |||||
| 2.1 | Service weight(incl.battery) | kg | 1850 | 2100 | 2150 |
| Wheel车轮 | |||||
| 3.1 | Wheel type | PU | PU | PU | |
| 3.2 | Load wheel | mm | φ210×85 | φ210×85 | φ210×85 |
| 3.3 | Drive wheel | mm | φ230×75 |
φ230×75 |
φ230×75 |
| 3.4 | Auxiliary wheel | mm | φ150×50 | φ150×50 | φ150×50 |
| 3.5 | Number of wheels,front/rear(X=drive wheel) | 2/1x+2 | 2/1x+2 | 2/1x+2 | |
| 3.6 | Wheel tread, drive side | b10(mm) | 678 | 678 | 678 |
| 3.7 | Wheel tread, load side | b11(mm) | / | / | / |
| Size尺寸 | |||||
| 4.1 | Fork tilting | α/β(°) | / | / | / |
| 4.2 | Mast closed height | h1(mm) | Refer to mast specification | Refer to mast specification | Refer to mast specification |
| 4.3 | Free lift height | h2(mm) | / | / | / |
| 4.4 | Lift height | h3(mm) | Refer to mast specification | Refer to mast specification | Refer to mast specification |
| 4.5 | Mast extended height with load-backrest | h4(mm) | Refer to mast specification | Refer to mast specification | Refer to mast specification |
| 4.6 | Pedal height | h7(mm) | 170 | 170 | 170 |
| 4.7 | Support leg height | h8(mm) | 245 | 245 | 245 |
| 4.8 | Overall length(pedal off/on) | L1(mm) | ≤2400* | ≤2400* | ≤2450* |
| 4.9 | Overall width | b1/b2(mm) | 900/≤1120* | 900/≤1120* | 900/1105 |
| 4.10 | Fork size | l/e/s(mm) | 1070/100/35 | 1070/100/35 | 1070/100/35 |
| 4.11 | Installation class | 2A | 2A | 2A | |
| 4.12 | Fork outside width | b5(mm) | 220-610 | 220-610 | 220-710 |
| 4.13 | Reach stroke | l4(mm) | ≤620 | ≤620 | ≤620 |
| 4.14 | Mast ground clearance | m1(mm) | 50 | 50 | 50 |
| 4.15 | Aisle width for pallet 1000*1200mm | Ast(mm) | 2690* | 2690* | 2690* |
| 4.16 | Aisle width for pallet 800*1200mm | Ast(mm) | 2710* | 2710* | 2710* |
| 4.17 | Turning radius | Wa(mm) | 1760* | 1760* | 1760* |
Products Certifications
FAQ
Q1. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q2. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q3. How about your delivery time?
A: Generally, it will take 20 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q5: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
Our services
1. One-stop solutions offer
2. OEM services offer
3. 24 hours non stop service offer
4. Track the products for you once every two days, until you get the products.
5. During warrarnty, spare parts delivery within one week for free.
Products Information
NOELIFT EQUIPMENT CO.,LTD, works in forklift industrial for more than 10 years. we have agent in Malaysia and Peru and Canada. if you are looking for long-term cooperation, welcome to grow up together with us!
