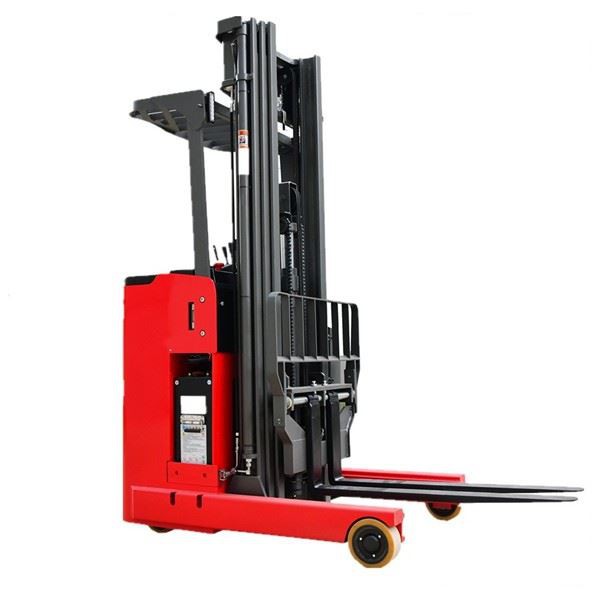

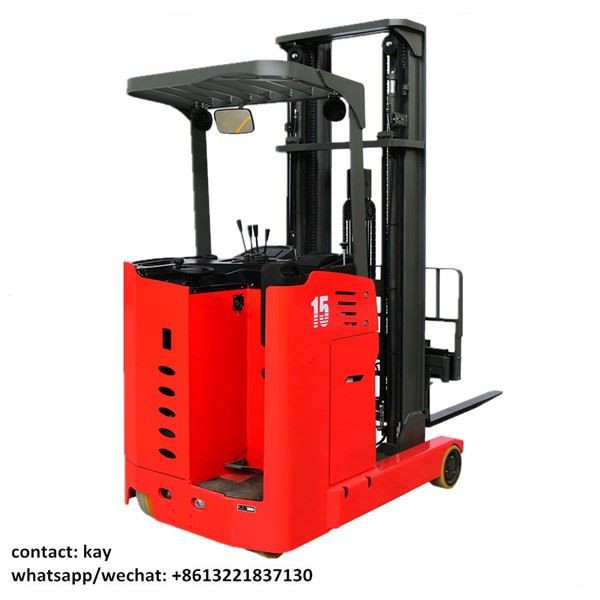

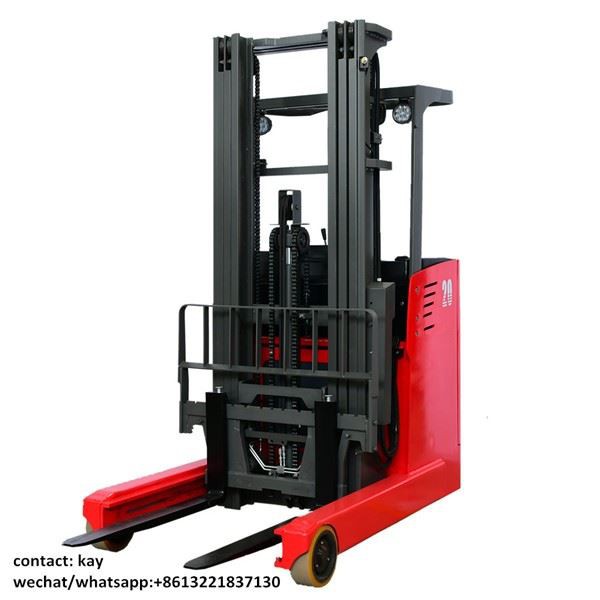

Electric Reach Forklift Truck
Advantages
1) Clear view fixed mast
2) Diagnostics,via a CAN bus connection, enable rapid servicing and maximum uptime
3) Maximum residual capacities at high lift
4) Large capacity Lifting Motor
5) Safety design, reach ISO & CE
Parameters
| 1 | Description | Electric reach truck | ||
| 2 | Model | TF15-30 | TF20-30 | TF25-30 |
| 3 | Load capacity Kg | 1500 | 2000 | 2500 |
| 4 | Load center mm | 500 | 500 | 500 |
| 5 | Max. lifting height mm | 3000 | 3000 | 3000 |
| 6 | Tilting angle (forward- backward) deg | 3/5 | 3/5 | 3/5 |
| 7 | Wheel type | Polyurethane solid tire | ||
| 8 | Mast forwarding length mm | 560 | 675 | 675 |
| 9 | Fork size LxWxTmm | 1070x100x35 | 1070x122x40 | 1070x122x40 |
| 10 | Fork spread mm | 220-740 | 220-900 | 220-900 |
| 11 | Overall length(with forks)mm | 2240 | 2450 | 2450 |
| 12 | Overall width mm | 1090 | 1250 | 1250 |
| 13 | Overall height mast closed mm | 2100 | 2100 | 2100 |
| 14 | Overall height fork raised(with backrest)mm | 3900 | 3900 | 3900 |
| 15 | Overhead guard height mm | 2340 | 2340 | 2340 |
| 16 | Outside turning radius mm | 1615 | 1965 | 1965 |
| 17 | Min. intersecting aislemm | 2608 | 2879 | 2879 |
| 18 | Max. walking speeds km/h | 7.5/8.5 | 7.0/8.0 | 7.0/8.0 |
| 19 | Lifting speeds (Loaded/ Unloaded) mm/s | 117/243 | 110/243 | 110/243 |
| 20 | Grade abitity % | ≤10 | ≤10 | ≤10 |
| 21 | Total weight( with battery) Kg | 2300 | 2600 | 2600 |
| 22 | Driving wheel mm | Φ343*108 | Φ343*108 | Φ343*108 |
| 23 | Front wheel mm | Φ267*114 | Φ267*114 | Φ267*114 |
| 24 | Balance wheel mm | Φ180*76 | Φ180*76 | Φ180*76 |
| 25 | Min. under-clearance mm | 80 | 80 | 80 |
| 26 | Service brake | mechanical + electric | ||
| 27 | Parking brake | mechanical | ||
| 28 | Battery V/Ah | 48/300 | 48/400 | 48/400 |
| 29 | Charger V/A | 48/40 | 48/50 | 48/50 |
| 30 | Driving motor Kw | 5.5 AC | 5.5 AC | 5.5 AC |
| 31 | Lifting motor Kw | 6.3 | 7.5 | 7.5 |
| 32 | Control system | MOSFET | ||
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufacturer and trading company
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-35 days if the goods are not in stock, it is according to quantity.
Q: What's you warranty period?
A: 1 year or 12 months from B/L date.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment. We also accept other reasonable terms of payment.
