1.5Ton Electric Reach Truck
Rated Capacity: 1,500-2000 kg (1.5-2.0 Ton)
Lifting Height Range: 1,600 mm to 6,000 mm
Aisle Efficiency: Ideal for narrow aisles (VNA) with small turning radius
Control System: Premium 48V AC Drive Motor with CURTIS Speed Controller
Steering & Operation: Electric Power Steering (EPS) with intuitive multi-function control handle

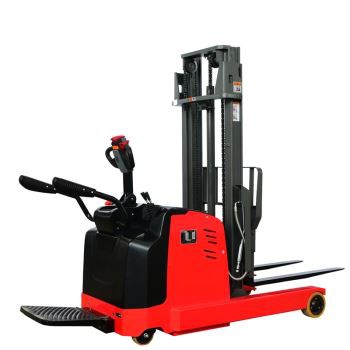

Noelift 1.5 -2.0Ton Electric Reach Truck (Narrow Aisle High-Lift Stacker)
The Noelift 1.5-2.0 Ton Electric Reach Truck is the ultimate narrow-aisle warehousing solution designed for precision handling, smooth maneuverability, and optimized vertical storage. Engineered for light-to-medium heavy duty loads, it features an advanced 48V AC drive motor, imported CURTIS controller, and Electric Power Steering (EPS). With lifting heights up to 6.0 meters and a compact chassis design, this 1.5-2.0T reach truck allows operators to stack pallets safely and efficiently in extremely tight aisle configurations.
Key Features & Advantages
Stable High-Reach Mast Technology
Crafted from high-tensile German mast steel with wide-view visibility. Minimizes mast swaying at maximum lift heights (up to 6m), ensuring maximum stability and safety when loading upper rack levels.
Energy-Efficient 48V AC Motor & Regenerative Braking
Powered by a maintenance-free 48V AC system that recovers energy during deceleration. Delivers smooth acceleration, strong slope performance, and longer battery shifts per charge cycle.
Compact Design for Narrow Aisle Optimization
Engineered with a streamlined frame and small turning radius, enabling seamless navigation through tight rack aisles. Maximizes warehouse floor space utilization by allowing narrower storage lanes.
Safety
One-touch emergency stop, metal arm guard
Specifiction parameters
| Product Model | TFA15 | TFA20 |
|---|---|---|
| Rated Load (kg) | 1500 | 2000 |
| Fork Dimensions (L×W×H, mm) | 1070/100/35 | 1070/122/40 |
| Overall Length (pedal folded, mm) | ≤2400* | ≤2530* |
| Overall Width (mm) | 1105 | 1105 |
| Lift Height (m) | 1.6–5.5 | 1.6–5.5 |
| Minimum Turning Radius (pedal folded, mm) | 1760* | 1760* |
| Battery (Li‑ion optional) | Lead‑acid 24V 210Ah | Lead‑acid 24V 210Ah |
| Reach Distance (mm) | 570 | 685 |
|
Right‑Angle Stacking Aisle Width (1200×1200, 1200 across forks C500, pedal folded, mm) |
2690* | 2790* |
|
Right‑Angle Stacking Aisle Width (800×1200, 1200 across forks C600, pedal folded, mm) |
2690* | 2790* |
| Fork Outer Width (mm) | 220–710 | 242–732 |
Target Applications & Industries
Food & Beverage Warehouses
Maneuvering through narrow temperature-controlled storage rooms.
Pharmaceutical & Chemical Storage
Clean, zero-emission electric operation for sensitive goods.
Light Manufacturing
Transporting raw materials and palletized parts along production aisles.
Supermarket&warehousing&retail logistics
Enabling rapid pallet access and high-density rack storage in order fulfillment centers.
Products Certifications
FAQ
Q1. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q2. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q3. How about your delivery time?
A: Generally, it will take 20 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
