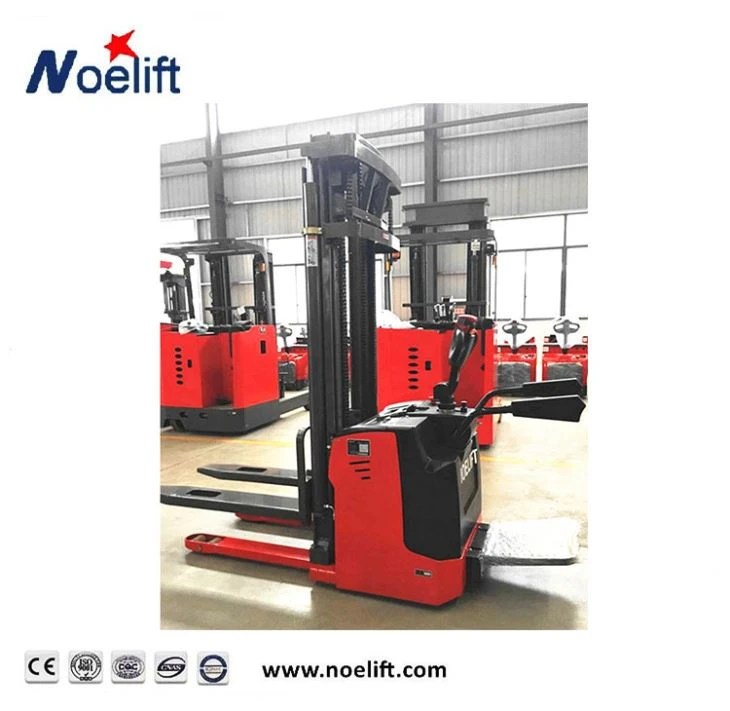

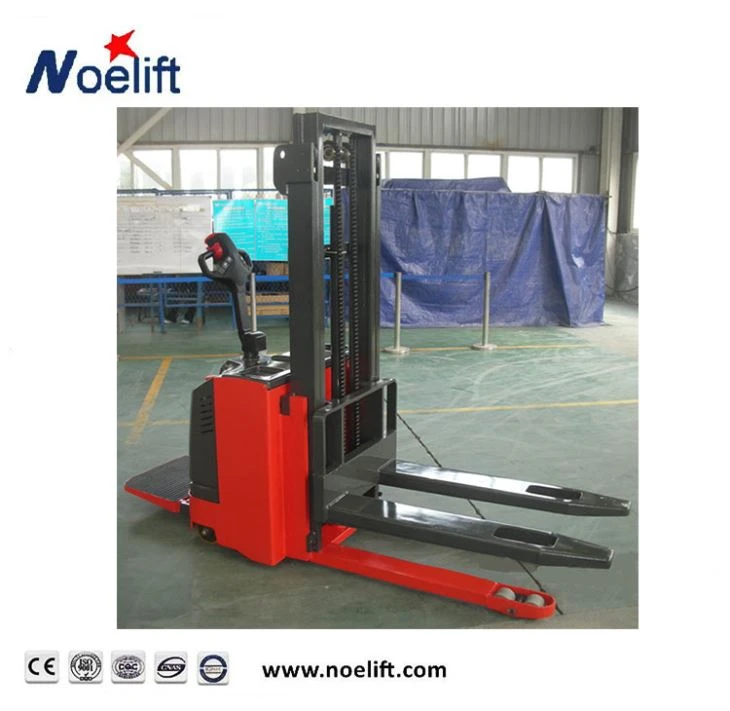

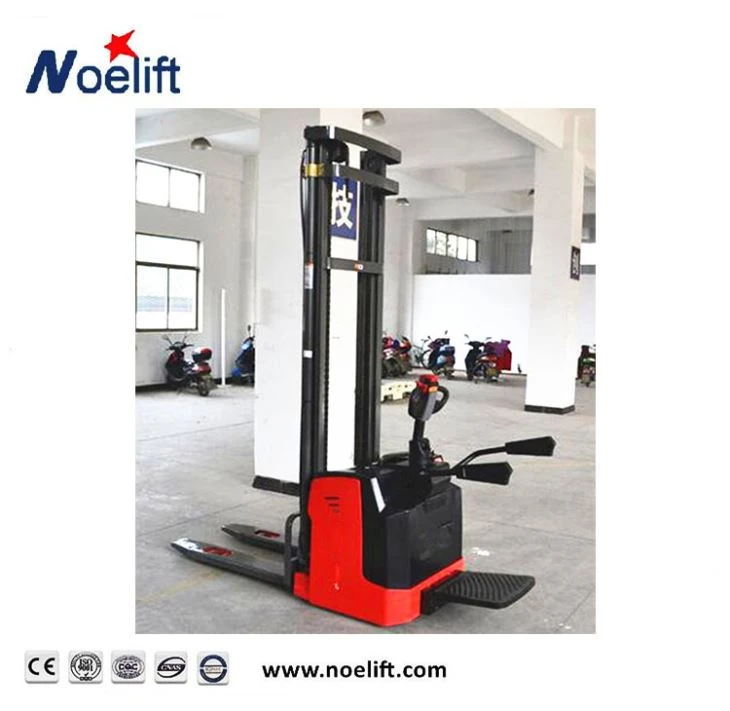

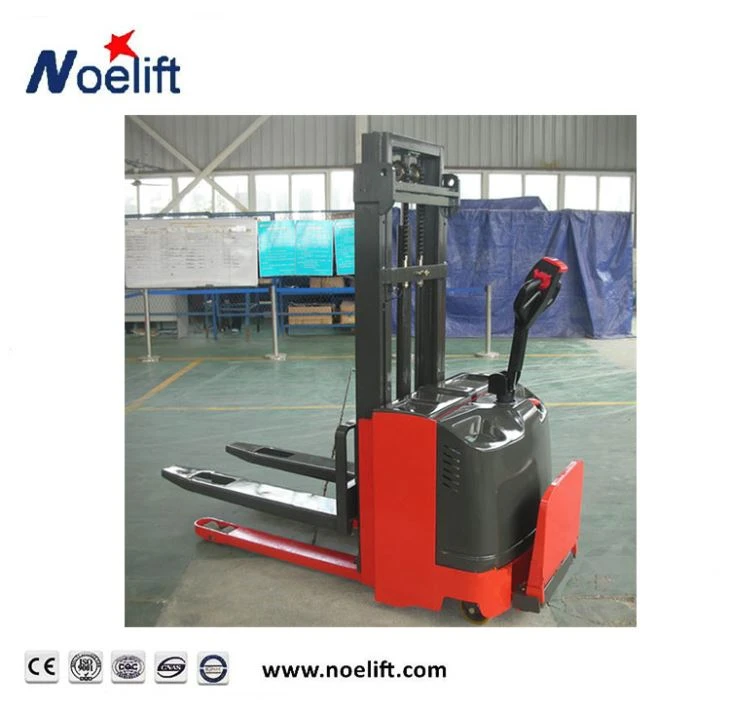

Stand On Type Electric Pallet Stacker
2. American Curtis controller, AMP waterproof and dustproof plug-in, provides reliable circuit protection and greatly reduces electrical faults;
3. Maintenance-free battery, super endurance, more worry saving, built-in charger, more convenient charging;
4. Delicate structure, excellent details, easy disassembly and installation of components, easy maintenance;
ELECTRIC PALLET STACKER FEATURE
TB series steering wheel pallet stacker, rated load capacity:1000-2500kg, Max. lift height: 4500mm, used for single face pallet;
1. Suitable for floor operation, sleeve cargo fork can be folded, convenient to enter the elevator, similar products, smaller turning radius and channel;
2. American Curtis controller, AMP waterproof and dustproof plug-in, provides reliable circuit protection and greatly reduces electrical faults;
3. Maintenance-free battery, super endurance, more worry saving, built-in charger, more convenient charging;
4. Delicate structure, excellent details, easy disassembly and installation of components, easy maintenance;
5. Man-machine designed operation tiller, simple and beautiful, all operation functions are independent and easy to realize.
ELECTRIC PALLET STACKER SPECIFICATIONS
1 | Description | Electric pallet stacker | ||||||
2 | Model | TB10 | TB10 | TB10 | TB10 | TB15 | TB15 | TB20 |
-16 | -25 | -30 | -35 | -25 | -30 | -16 | ||
3 | Load capacity Kg | 1000 | 1000 | 1000 | 1000 | 1500 | 1500 | 2000 |
4 | Load center mm | 500 | 500 | 500 | 500 | 500 | 500 | 500 |
5 | Max. lifting height mm | 1600 | 2500 | 3000 | 3500 | 2500 | 3000 | 1600 |
6 | Free lift mm | 0 | ||||||
7 | Wheel type | Polyurethane solid tire | ||||||
8 | Pedal length mm | 500 | 500 | 500 | 500 | 500 | 500 | 500 |
9 | Fork size(LxW)mm | 1150*190 | ||||||
10 | Width of forks(aptotic) mm | 680 | 680 | 680 | 680 | 680 | 680 | 680 |
11 | Overall length(The pedal is closed) mm | 2023 | 2023 | 2023 | 2023 | 2023 | 2023 | 2023 |
12 | Overall width mm | 850 | 850 | 850 | 850 | 850 | 850 | 850 |
13 | Overall height(mast closed)mm | 2080 | 1795 | 2045 | 2295 | 1795 | 2040 | 2080 |
14 | Overall height fork raised(with backrest) mm | 2080 | 2970 | 3410 | 3910 | 2970 | 3220 | 2080 |
15 | Outside turning radius mm | 1720 | 1720 | 1720 | 1720 | 1720 | 1720 | 1720 |
16 | Front wheel to fork tip mm | 330 | 330 | 330 | 330 | 330 | 330 | 330 |
17 | Min. intersecting aisle(1000*1000pallet)mm | 2450 | 2450 | 2450 | 2450 | 2450 | 2450 | 2450 |
18 | Max. walking speeds Km/h | 4.0/5.8 | 4.0/5.8 | |||||
19 | Grade abitity % | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
20 | Total weight( with battery) Kg | ~880 | ~935 | ~950 | ~975 | ~940 | ~950 | ~905 |
21 | Driving wheel mm | Φ215*75 | ||||||
22 | Front wheel mm | Φ80*70 | ||||||
23 | Balance wheel mm | Φ150*50 | ||||||
24 | Battery V/Ah | 24/210 | ||||||
25 | Charger V/A | 24/30 | ||||||
26 | Driving motor Kw | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 |
CAPACITY CHART
