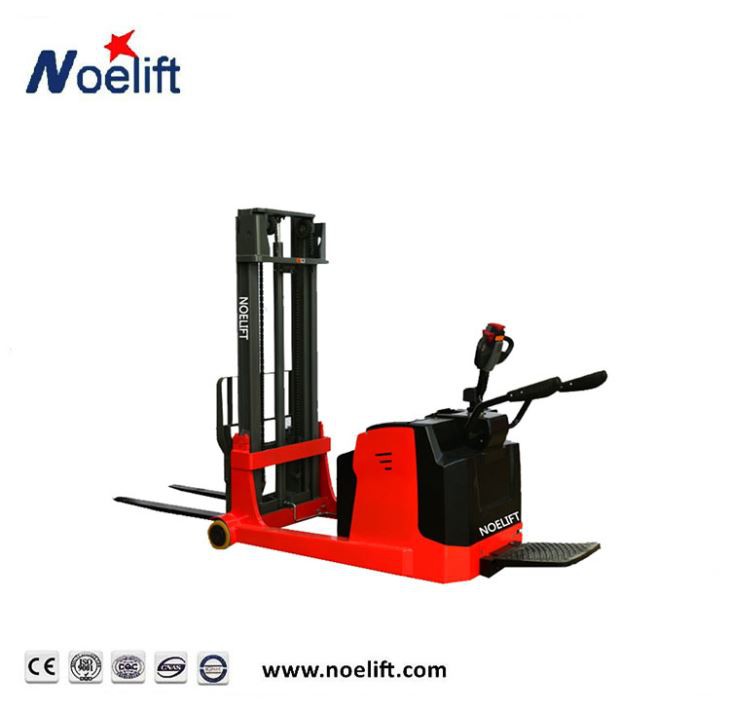

Electric Counterbalance Pallet Stacker
2.Regenerative braking function to reduce the operation cost;
3.Speed Limited for high position, to aviod the possibility of products' overturning when high speed in high position;
4.Shock Absorption of Pedal, to ensure the comfortable of working and reduce the fatigue;
5.Reinforced Mast, to ensure the mast are not out of shape and lift the goods smoothly;
6.Ergonomics multi-functional operation handle to increase the comfortable degree.
Electric counterbalance pallet stacker feature
TBB Series is counterbalance pallet stacker, rated load capacity: 1000KG, lift height: 3000mm, used for double/single face pallet;
1.Vertical Drive system,to save the energy and have long time working;
2.Regenerative braking function to reduce the operation cost;
3.Speed Limited for high position, to aviod the possibility of products' overturning when high speed in high position;
4.Shock Absorption of Pedal, to ensure the comfortable of working and reduce the fatigue;.
5.Reinforced Mast, to ensure the mast are not out of shape and lift the goods smoothly;
6.Ergonomics multi-functional operation handle to increase the comfortable degree.
ELECTRIC PALLET STACKER SPECIFICATIONS
Description | Electric pallet stacker with counterbalance-TBB | ||
Model | TBB10-16 | TBB10-25 | TBB10-30 |
Load capacity Kg | 1000 | 1000 | 1000 |
Load center mm | 500 | 500 | 500 |
Max. lifting height mm | 1600 | 2500 | 3000 |
Wheel type | Polyurethane solid tire | ||
Fork size(LxW)mm | 1070*100 | 1070*100 | 1070*100 |
Overall length mm | 2560 | 2560 | 2560 |
Overall width mm | 994 | 994 | 994 |
Overall height mast closed mm | 2090 | 1760 | 2010 |
Overall height fork raised(with backrest) mm | 2500 | 3400 | 3900 |
Outside turning radius mm | 1415 | 1415 | 1415 |
Total weight( with battery) Kg | 1680 | 1760 | 1790 |
Battery V/Ah | 24/210 | 24/210 | 24/210 |
CAPACITY CHART
