Speed Capacity High Pallet Stacker
High Lifting Height: 1,600 mm up to 6,000 mm with minimal capacity loss
Core Advantage: High travel and lift/lower speeds engineered for high-density storage
Operator Interface: Ride-on foldable platform
Power & Drive: Advanced Full AC Drive System with fast-charge lithium-ion battery option

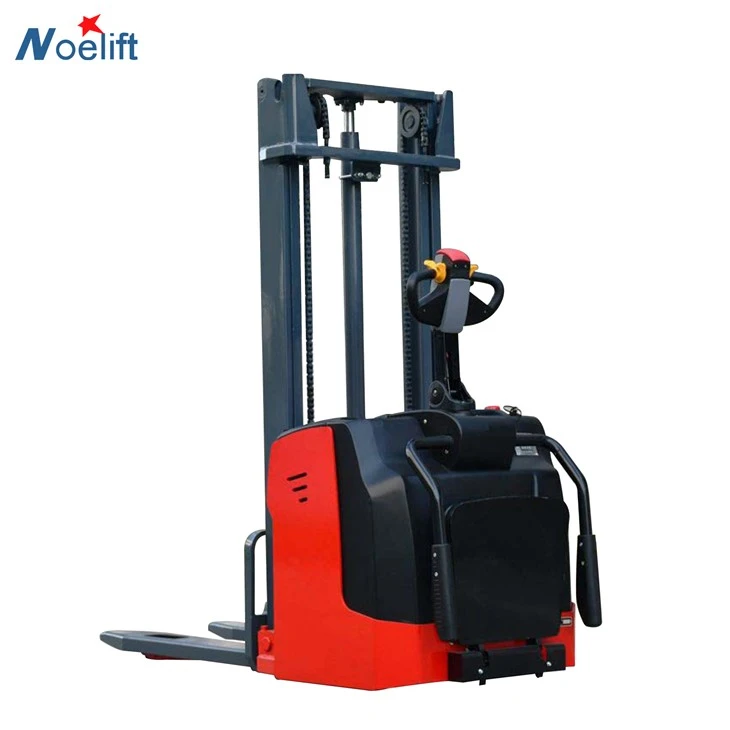

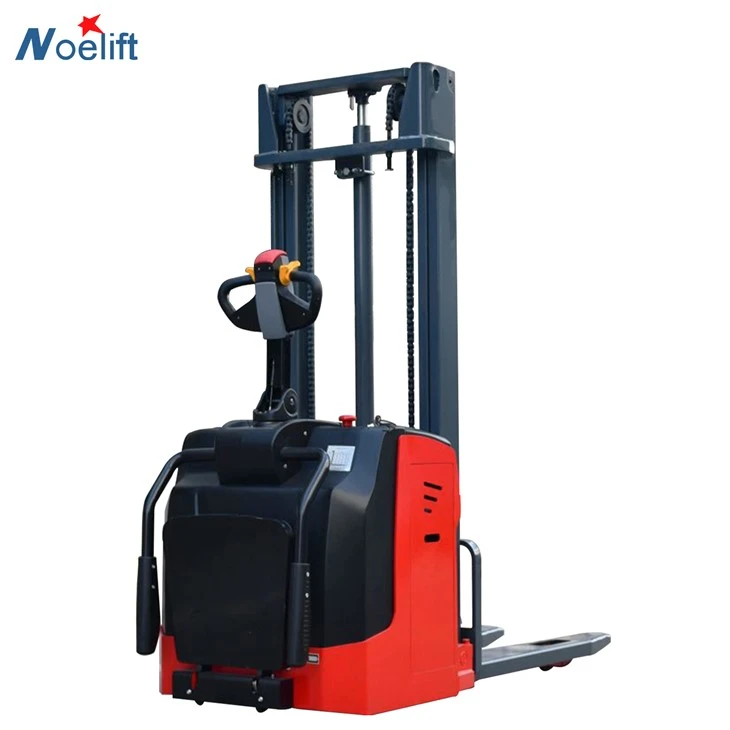

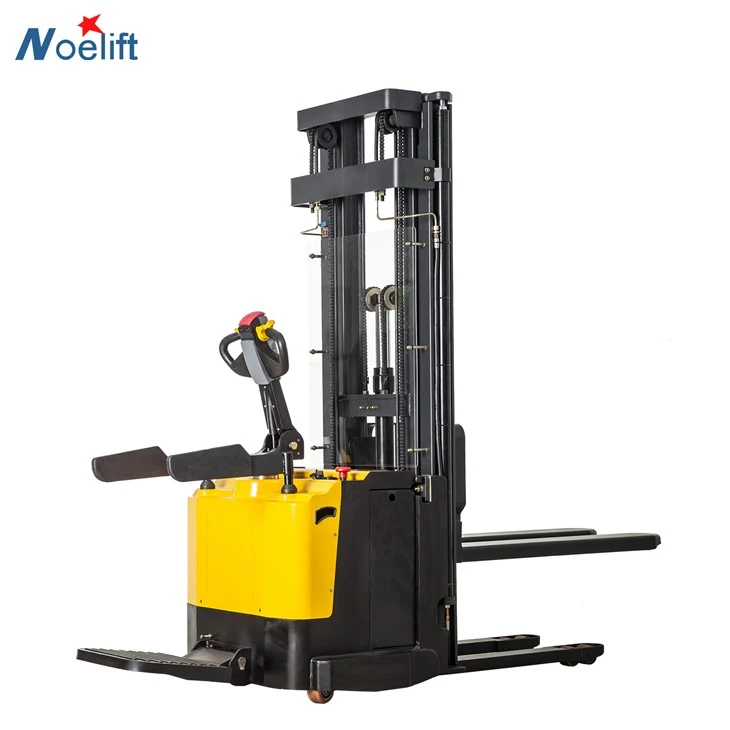

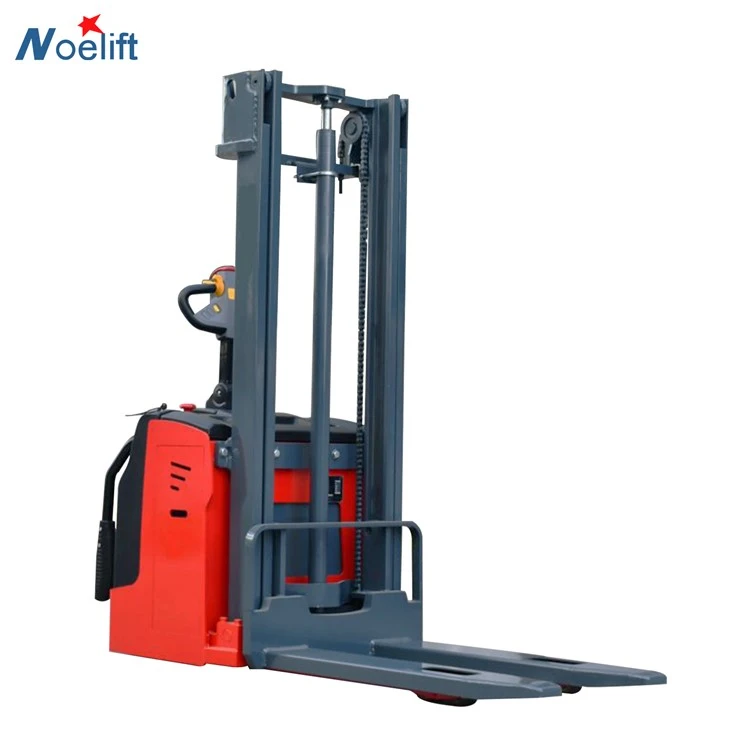

Noelift High-Speed High-Capacity Electric Pallet Stacker
Engineered for demanding high-throughput warehouse environments, the Noelift High-Speed High-Capacity Electric Pallet Stacker redefines heavy-duty indoor material handling. Combining powerful dual-AC driving technology with ultra-fast hydraulic lifting, this stacker handles heavy loads up to 3.0 tons and reaches lifting heights up to 6.0 meters with outstanding speed and stability. Built for multi-shift operations, it significantly shortens cycle times and boosts daily pallet turnover in busy distribution centers.
Key Features & Advantages
Specifiction parameters
|
Model |
|
TB1530AF02 |
TB2030AF02 |
TB1530A |
TB2030A |
TB1545AS |
TB2045AS |
|
Power type |
|
Battery |
Battery |
Battery |
Battery |
Battery |
Battery |
|
Driving type |
|
Stand on |
Stand on |
Stand on |
Stand on |
Stand on |
Stand on |
|
Load capacity |
Q(kg) |
1500 |
2000 |
1500 |
2000 |
1500 |
2000 |
|
Load center distance |
C(mm) |
600 |
600 |
600 |
600 |
600 |
600 |
|
Service weight (incl. battery) |
kg |
1100 |
1115 |
1270 |
1300 |
1450 |
1550 |
|
Lift height |
h3(mm) |
3000 |
3000 |
3000 |
3000 |
4500 |
4500 |
|
Overall length |
l1(mm0 |
2110 |
2110 |
2130 |
2130 |
2130 |
2130 |
|
Overall width |
b1/b2(mm) |
850/1000 |
850/1000 |
850/1000 |
850/1000 |
850/1000 |
850/1000 |
|
Fork dimensions |
l/e/s(mm) |
1150/190/56 |
1150/190/56 |
1150/190/56 |
1150/190/56 |
1150/190/56 |
1150/190/56 |
|
Fork outside spread |
b5(mm) |
680/570 |
680/570 |
680/570 |
680/570 |
680/570 |
680/570 |
|
Turning radius |
Wa(mm) |
1655 |
1655 |
1655 |
1655 |
1655 |
1655 |
|
Travelling speed, laden/unladen |
km/h |
5.0/6.0 |
5.0/6.0 |
5.0/6.0 |
5.0/6.0 |
5.0/6.0 |
5.0/6.0 |
Target Applications & Industries
High-Throughput Logistics Centers
Rapid moving and stacking of heavy goods in busy distribution hubs
Manufacturing & Raw Material Warehouses
Transporting heavy metal, machinery, or liquid containers to high rack levels
Cold Storage & Food Logistics
Reliable performance in multi-shift cold environments requiring high battery endurance
Narrow-Aisle High-Density Racking
Maximizing vertical cube space with high-reach stability
Products Certifications
FAQ
Q1. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q2. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q3. How about your delivery time?
A: Generally, it will take 20 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
