3000lbs 3meter Electric Pallet Stacker With Straddle Legs And Adjustable Forks
Customized 3000lbs 3meter Electric Pallet Stacker With Straddle Legs And Adjustable Forks
cheap 3000lbs 3meter Electric Pallet Stacker With Straddle Legs And Adjustable Forks
china 3000lbs 3meter Electric Pallet Stacker With Straddle Legs And Adjustable Forks
wholesale 3000lbs 3meter Electric Pallet Stacker With Straddle Legs And Adjustable Forks
3000lbs 3meter Electric Pallet Stacker With Straddle Legs And Adjustable Forks suppliers
3000lbs Electric Straddle Pallet Stacker
Cheap Small Economic Full Electric Pallet stacker 1000kg 1200kg 1500kg
max. lifting height 1.6m to 3.5m
Electric straddle stacker for handling double sides pallets,
hot sale for the USA.
small size, adjustable legs and adjustable forks.
3: small turning radius, saving warehouse space.

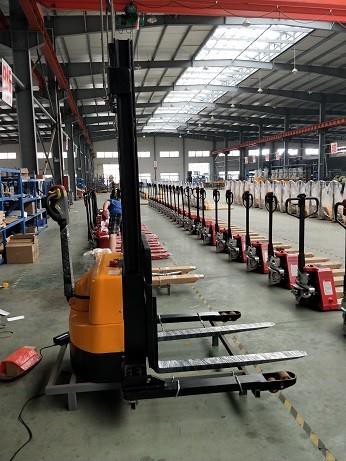

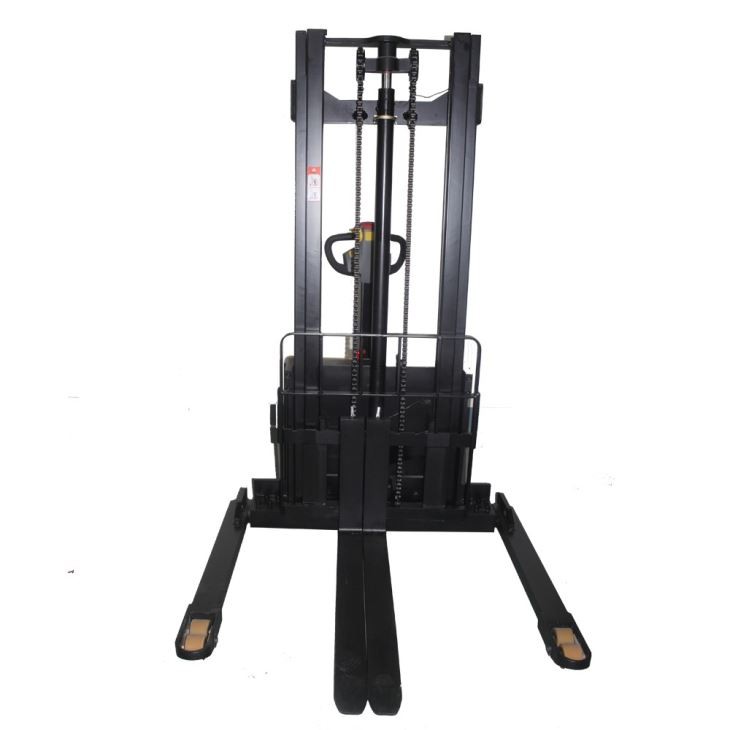

Electric stacker stacker photo:
Electric straddle legs pallet stacker parameters：
| 1 | Model | ES15MS | |
| 2 | Operation type | Walkie | |
| 3 | Power Type | ELECTRIC | |
| 4 | Rated Capacity | kg | 1500 |
| 5 | Load Centre | mm | 500 |
| 6 | * Lift Height | mm | 3000 duplex masts |
| 7 | Wheel type | PU | |
| 8 | Wheelbase | mm | 1230 |
| 9 | Forks length | mm | 1150x160x50 |
| 10 | Forks overall width | mm | 200-800 |
| 11 | Interier legs width | mm | 970-1250 |
| 12 | Overall length | mm | 1705 |
| 13 | Overall Width | mm | 820 |
| 14 | Mast Lowered height | mm | 2015 |
| 15 | Mast extended height | mm | 3880 |
| 16 | Min. aisle width for pallets 800x1200, crossways | mm | 2510 |
| 17 | Max. Gradeability | % | 5/7 |
| 18 | Service weight | kg | 670 |
| 19 | Controller | Curtis | |
| 20 | lifting motor | kw | 2.2 DC |
| 21 | drive motor | kw | 0.65 DC |
| 22 | battery | V/Ah | 24/120 |
| 23 | Charger | with | |
| 24 | Parking brake | Electromagnetic |
