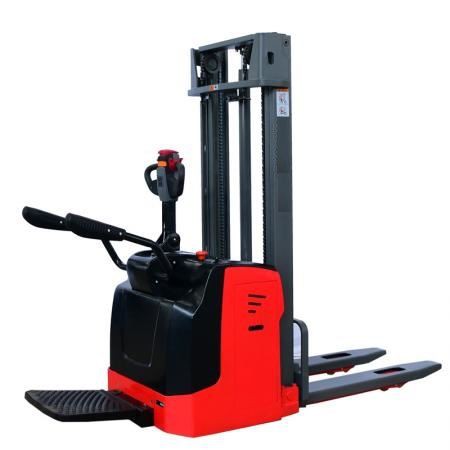

1.5 Ton Full Electric Pallet Truck
1.5 ton full electric pallet truck
TB15/20 is a platen pallet stacker with a rated load of 1500k/2000kg. Itis mainly suitable for flat ground operation or floor and container operation
Main features
TB series steering wheel pallet stacker, rated load capacity:1000-2500kg, Max. lift height: 4500mm, used for single face pallet; 1. With EPS steering system, easier to operation; 2. Electronic type braking; 3. To use intelligent charger,auto analysis the residual energy and optimizing the charging process, without manual operation and extend the battery working life effectively;
| Manufacturer | NOELIFT | NOELIFT | NOELIFT | |
| Model | TB1530 | TB1530 | TB1545 | |
| Power type | Battery | Battery | Battery | |
| Driving style | Stand on | Stand on | Stand on | |
| Rated load | Q(kg) | 1500 | 1500 | 1500 |
| Load center | C(mm) | 600 | 600 | 600 |
| Front overhang | x(mm) | 737 | 722 | 712 |
| Wheelbase | y(mm) | 1390 | 1390 | 1390 |
| Service Weight(incl.battery) | kg | 1100 | 1270 | 1450 |
| wheel type | PU | PU | PU | |
| Load wheel size | mm | Φ80×70 | Φ80×70 | Φ80×70 |
| Drive wheel size | mm | Φ230×75 | Φ230×75 | Φ230×75 |
| Lift height | h3(mm) | 3000 | 3000 | 4500 |
| Mast extended height with load-backrest | h4(mm) | 3506 | 3490 | 5076 |
| Battery weight | kg | 200 | 200 | 200 |
| Battery replacement method | Side pull | Side pull | Side pull | |
| Mast series | Single cylinder duplex mast | Double cylinders duplex mast | Double cylinders triplex mast |
Our Service
NOELIFT service cover the whole life of the machine you purchase.When you first inquire our machine,we provide the full data and information to make sure this is the best choice for you.When the machine deliver to you,we will have professional maintenance advice and service manual to help you keep the machine under very good operation condition.Even if the machine have problem,we have a full time service system to make sure no deplay happen and minimize the downtime and maximize the machine efficiency.
