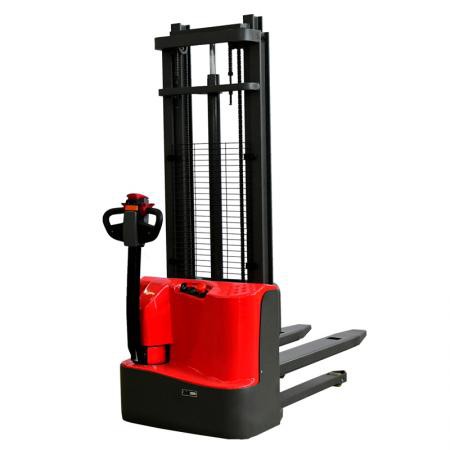

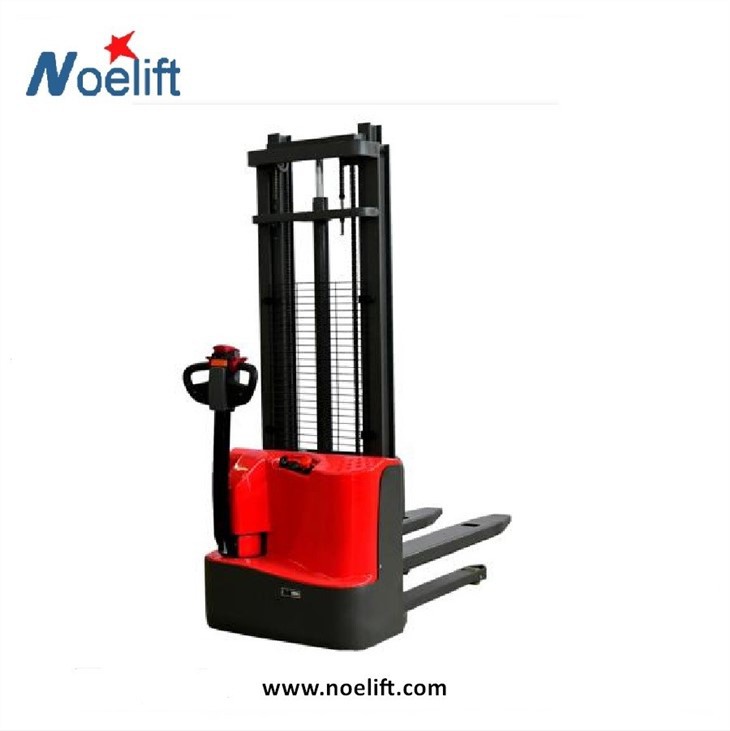

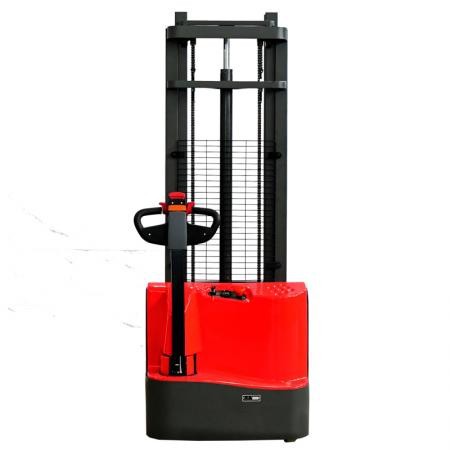

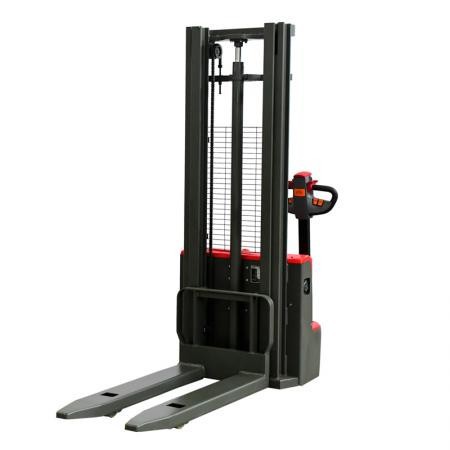

WALKING PALLET STACKING VEHICLE
Lifting height: 3000mm
Walkie Pallet Stacker Specifications
WALKING PALLET STACKING FORKLIFT TBD12 / 15
TBD12/15 is a walking pallet stacker with a rated load of 1200kg/1500kg.
The vehicle is compact and flexible, with good mobility, and can work efficiently and freely in narrow space.
product advantage
1.H-type hot-rolled door channel steel, the strong portal frame enables the vehicle to have better stability and longer service life.
2.The material used for mechanical structure is firm, and the key parts are made of high strength steel plate, which is durable and strong.
3.I Emergency Reverse Driving Function, Emergency ofHandle Head
4.The reverse button can effectively avoid injuries to the driver when driving backward in case of emergency.
Specifiction parameters
| Standard 标准 | ||||
| 1.1 | Manufacturer | NOELIFT | NOELIFT | |
| 1.2 | Model | TBD12 | TBD15 | |
| 1.3 | Power type | Battery 蓄电池 | Battery 蓄电池 | |
| 1.4 | Driving style | Walkie 步行式 | Walkie 步行式 | |
| 1.5 | Rated load | Q(kg) | 1200 | 1500 |
| 1.6 | Load center | C(mm) | 500 | 500 |
| 1.7 | Wheelbase | y(mm) | 1200 | 1200 |
| Weights 重量 | ||||
| 2.1 | Service Weight(incl.battery) | kg | 560 | 590 |
| Wheels 车轮 | ||||
| 3.1 | wheel type | PU | PU | |
| 3.2 | Load wheel size | mm | Φ80×70 | Φ80×70 |
| 3.3 | Drive wheel size | mm | Φ210×70 | Φ210×70 |
| 3.4 | Stabilizing wheel size | mm | Φ125×50 | Φ125×50 |
| 3.5 | Number of wheels,front/rear(x=drive wheel) | 2/1x+1 | 2/1x+1 | |
| 3.6 | Wheel base,drive-bearing side | b10(mm) | / | / |
| 3.7 | Wheel base, load-bearing side | b11(mm) | 400 | 400 |
| Size 尺寸 | ||||
| 4.1 | Mast closed height | h1(mm) | Refer to the mast specification 见门架参数 |
Refer to the mast specification 见门架参数 |
| 4.2 | Lift height | h3(mm) | Refer to the mast specification 见门架参数 |
Refer to the mast specification 见门架参数 |
| 4.3 | Mast extended height with load-backrest | h4(mm) | Refer to the mast specification 见门架参数 |
Refer to the mast specification 见门架参数 |
| 4.4 | Handle height(min/max) | h14(mm) | 800/1200 | 800/1200 |
| 4.5 | Minimum height of fork surface | h13(mm) | 85 | 85 |
| 4.6 | Overall length | l1(mm) | 1750 | 1750 |
| 4.7 | Overall width | b1(mm) | 800 | 800 |
| 4.8 | Fork size | l/e/s(mm) | 1150/160/60 | 1150/160/60 |
| 4.9 | Fork outside width | b5(mm) | 560* | 560* |
| 4.10 | Mast ground clearance | m1(mm) | 30 | 30 |
| 4.11 | Aisle width (pallet 1000x1200)Load center C500mm | Ast(mm) | 2050 | 2050 |
| 4.12 | Right-angle stacking aisle width (pallet 800x1200)Load center C600mm | Ast(mm) | 2100 | 2100 |
| 4.13 | Turning radius | Wa(mm) | 1440 | 1440 |
Products Certifications
FAQ
Q1. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q2. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q3. How about your delivery time?
A: Generally, it will take 20 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q5: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
Our services
1. One-stop solutions offer
2. OEM services offer
3. 24 hours non stop service offer
4. Track the products for you once every two days, until you get the products.
5. During warrarnty, spare parts delivery within one week for free.
Products Information
NOELIFT EQUIPMENT CO.,LTD, works in forklift industrial for more than 10 years. we have agent in Malaysia and Peru and Canada. if you are looking for long-term cooperation, welcome to grow up together with us!
