Name: China Cheap Three Way Stacker Manufacturers - Wholesale Three Way Stacker Made in China
Brand: Noelift
SKU: 158597752

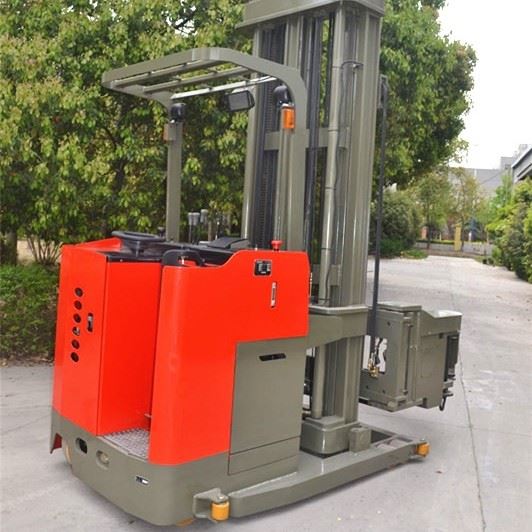

The series forklift is a high-position three-way stacker used in narrow roadways. The lifting height is 2.5-7.5m. The body does not need to be turned. The forklift can be rotated by 180° and left and right to realize the stacking and loading and unloading of goods on both sides of the roadway.

Send Inquiry

Product Introduction

PRODUCT DESCREPTION

3-WAY ELECTRIC PALLET STACKER FEATURES

1. Loaded Capacity: 1000kg. Optional lift height: 3000-7500mm.

2. Environment-Friendly:

Low noise and non-pollution electricity enegy adopted ensure Noelift 3-way electric pallet stacker Environment-Friendly.

3. Reliability:

3.1: Rear axle locked, it enhanced vehicle safety, ensure forklift stable when the forks lifting and side shift operating.

3.2: Modern AC truck with good performance, reliability and serviceability. Regenerative braking and lowering extend the operating time per battery charge.

3.3: Improved forks device, it could load and unload the goods from side when the fork landing, easy to take the goods from racks bottom.

3.4: Side pull high capacity battery, easy maintenance and replacement, and improve work efficiency.

3.5: Net width of the aisleis only 1480mm.

4. Labor-Saving:

Strong industrial 48V battery, 5.5V strong driving motor ensure Lalor-Saving.

5. Strict Quality Inspection System:

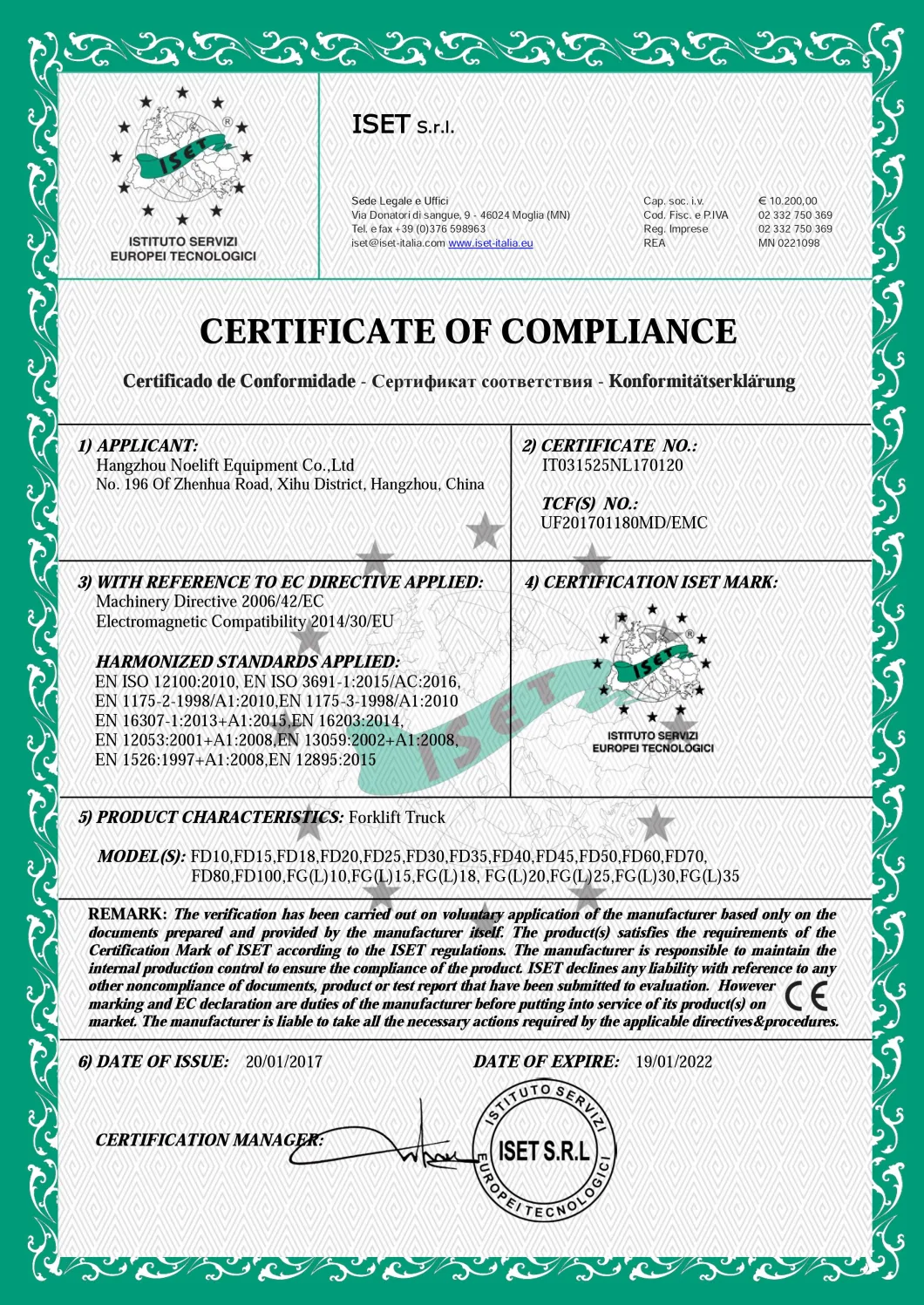

ISO9001-2008, CE approved.

3-WAY ELECTRIC PALLET STACKER DETAILS

202110251029069691560

P.S. When lift height ≧4.5m, the equipment with colored monitor.

3-WAY ELECTRIC PALLET STACKER SPECIFICATIONS

Manufacturer/brand		NOELIFT
Model		TC10	TC10SQ
Power type		Battery	Battery
Operation type		Stand-on	Stand-on
Loading capacity	kg	1000	1000
Loading center	mm	500	500
Tire type front/rear		solid PU/solid PU	solid PU/solid PU
Lifting height	mm	3000	4500
Mast height(closed)	mm	2570	2750
Overhead guard height	mm	2320	2320
Overall length	mm	3375	3454
Overall width	mm	1450	1450
Fork size	mm	1070×100×35	1070×100×35
Fork spread	mm	260～820	260～820
Aisle(1000×1000 pallet)	mm	1480	1480
Turning radius	mm	1880	1880
Min. width aisle	mm	1480	1480
Total weight(inclue battery)	kg	3226	3920

HIGH MAST PARAMETER

Mast	Full free	Lifting height	Lowered height of mast	Free lift height	Loading capacity @ MAX. height
					TC10
Duplex	NO	3000mm	2570mm	100mm	1000kg
	NO	3500mm	2820mm	100mm	1000kg
	NO	4000mm	3070mm	100mm	1000kg
Triplex	YES	5000mm	2920mm	1670mm	1000kg
	YES	5500mm	3090mm	1850mm	1000kg
	YES	6000mm	3250mm	2000mm	1000kg
	YES	6500mm	3420mm	2200mm	900kg
	YES	7000mm	3580mm	2400mm	800kg
