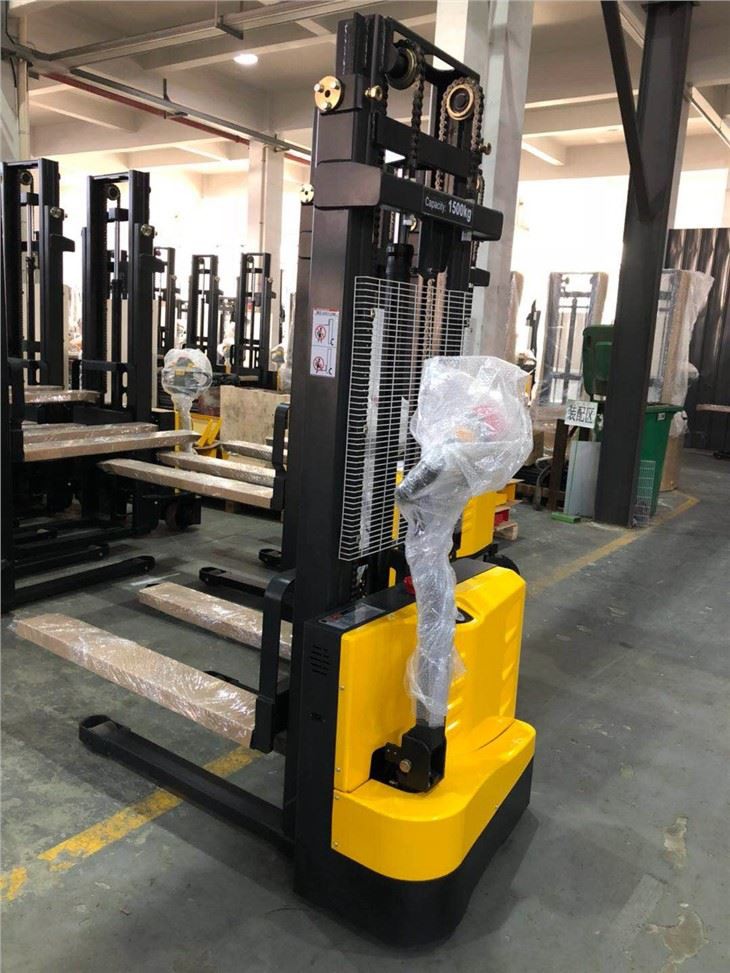

Electric Pallet Stacker With Capacity 1500kg Lift 1600mm-3300mm
It adopts the streamlined industrial design concept, with smart appearance and small turning radius.
It is widely used in various industries such as warehouses, supermarkets and workshops.
Economical Electric Pallet Stacker Specifications
An affordable pallet stacker with a narrow turning radius and a stylish look embraces the idea of streamlined industrial design. It is extensively utilised in many different industries, including factories, supermarkets, and warehouses. robust power, able to handle loads ranging from one to 1.5 tonnes, to satisfy most customers' needs,The car incorporates slope protection and regenerative braking.
Advantage:
1. The chassis is secure and stable due to its well-designed four-wheel construction.
2. Superior C-shaped gantry alloy steel, with a 30% increase in stiffness above regular carbon steel.
3. Integrated sealed high-energy battery, long-term maintenance-free operation; no need to add water or liquid while the device is in use.
4.Steppenwolf speed control to accommodate varying driving styles.
5. The entire vehicle's part and pipeline layout makes sense, maintenance is easy, and similar vehicles can be maintained without any issues.
6. The car has lovely contours and an elegant appearance.
7. Even in the event that the pipe bursts, the mast won't fall off quickly because to the explosive-proof valve at the bottom of the cylinder.
8. The controversy of Curtis.
9. The side-mounted operating handle allows operators to work with better eyesight.
10. To avoid damaging the motor, a precise electronic limit switch is used to raise the maximum lifting height.
11. Truck circuit lines with nylon casings are resistant to wear, oil, corrosion, and cleaning.
12. Reverse switch for emergencies.Disconnect the power in an emergency.


Specifiction parameters
| Manufacturer | NOELIFT | NOELIFT | NOELIFT | NOELIFT | NOELIFT | |
| Model | ESC10M16 | ESC10M25 | ESC10M30 | ESC10M33 | ESC10M35 | |
| Driving style | Walkie | Walkie | Walkie | Walkie | Walkie | |
| Rated load | kg | 1000 | 1000 | 1000 | 1000 | 1000 |
| Load center | mm | 600 | 600 | 600 | 600 | 600 |
| Wheelbase | mm | 1245 | 1245 | 1245 | 1245 | 1245 |
| Service Weight (without battery) | kg | 450 | 500 | 520 | 550 | 580 |
| Service Weight (incl.battery) | kg | 500 | 550 | 570 | 600 | 630 |
| Wheel type | PU | PU | PU | PU | PU | |
| Front wheel size | mm | φ78 | φ78 | φ78 | φ78 | φ78 |
| Drive wheel size | mm | φ210 | φ210 | φ210 | φ210 | φ210 |
| Stabilizing wheel size | mm | 124 | 124 | 124 | 124 | 124 |
| Number of wheels | psc | 6 | 6 | 6 | 6 | 6 |
| Mast closed height | mm | 2065 | 1785 | 2035 | 2185 | 2260 |
| Mast extended height with load-backrest | mm | 2065 | 3000 | 3500 | 3800 | 3975 |
| Lift height | mm | 1600 | 2500 | 3000 | 3300 | 3500 |
| Overall length | mm | 1770 | 1770 | 1770 | 1770 | 1775 |
| Overall width | mm | 820 | 820 | 820 | 820 | 820 |
| Fork width | mm | 160 | 160 | 160 | 160 | 160 |
| Fork length | mm | 1150 | 1150 | 1150 | 1150 | 1150 |
| Fork outside width | mm | 560/680 | 560/680 | 560/680 | 560/680 | 560/680 |
