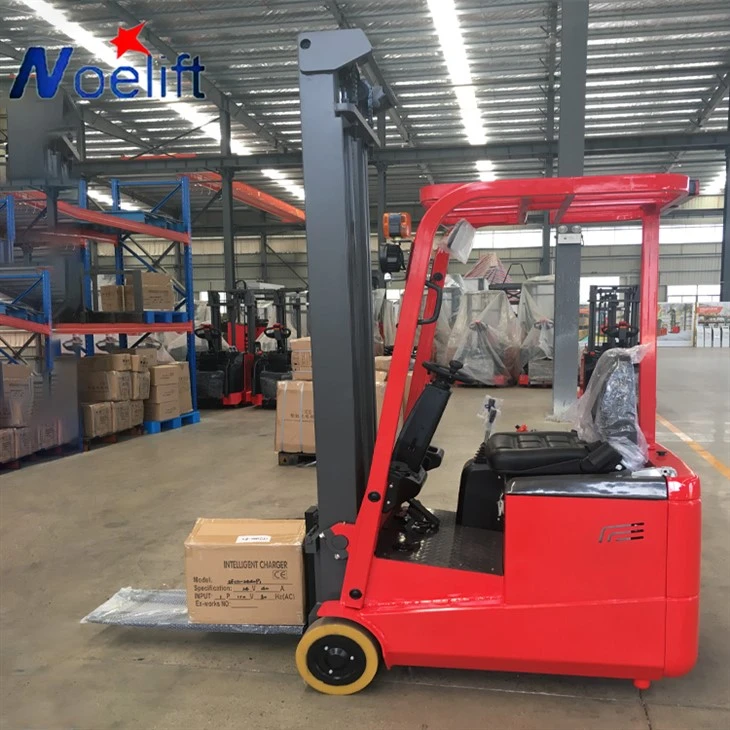

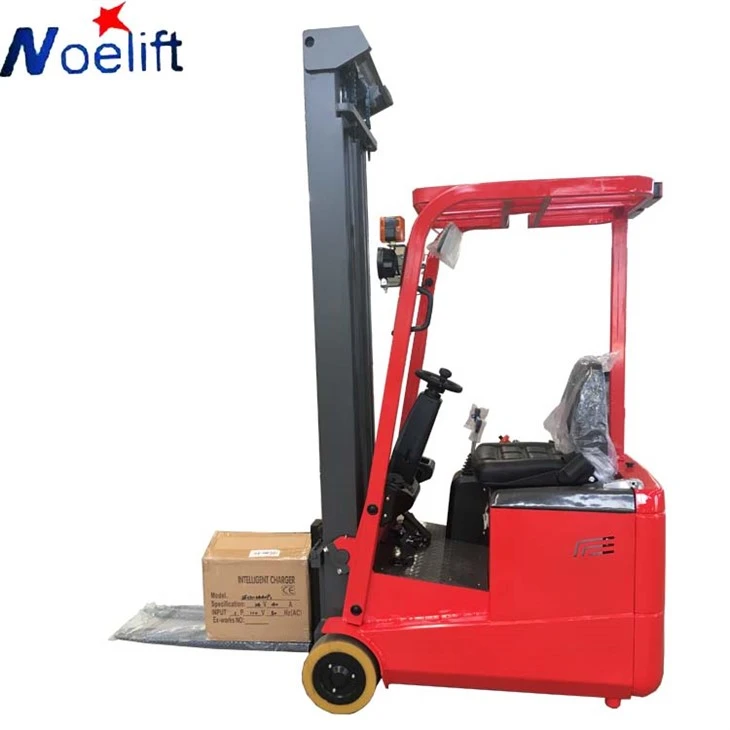

Three Fulcrum Forklift Electric Forklift Light
due to its small size,
Light weight,
more suitable for small spaces and floor work
three-pivot forklift Description
Advantage：
Lid can be opened easily by adjusting the level forward
Front dual split motor
panoramic rearview mirror
Small turning radius, suitable for narrow passages
Features may include:
1. appearance
Compact design meets operating requirements in limited space. The eye-catching smooth contour design and exposed metal materials provide the T-series three-point electric counterbalanced forklift with a solid structure.
2. Controllability
The front dual separate drive motor allows the wheels to move forward or backward independently, with a small turning radius, suitable for narrow passages; imported reducer, high-power drive motor, reliable and powerful performance.
3. high efficiency
The high-power pump motor and low-noise gear pump not only increase the lifting speed, but also improve the work efficiency.
Regenerative braking during deceleration is more energy-saving and effective.
4. Comfortable
Thanks to the newly designed adjustable lever, the operator can work more comfortably. The newly designed instrument panel is clear at a glance, friendly to human-computer interaction, and has running time, self-diagnosis function and battery power display.
Both the steering column and seat are easily adjustable so every operator can find the optimal driving position.
Low vibration and suspension seats reduce driver fatigue.
5. Stablize
The sunken battery layout provides good stability, especially when cornering.
The soft landing system prevents the forks from hitting the ground.
6. Safety
The emergency switch is of standard specification and complies with European safety regulations.
Both electronic and hydraulic systems are equipped with overload protection systems.
Driving speed is automatically reduced when turning.
7. maintain
Fully opening battery cover allows for easy battery maintenance and replacement.
Service engineers can remove the front floor without any tools for easy maintenance.
8. technology progress
It adopts world-famous brand controllers, connectors, battery plugs, and emergency switches to ensure reliable performance and easy maintenance.
The high-frequency MOSFET integrated control system accurately controls travel and lifting, has better adjustment performance, and better matches the motor. Due to the MOSFET controller, there is also no ramp rollback. Motor braking is used for regenerative braking when decelerating, changing direction, and going downhill.
Important parameters
Three fulcrum Electric forklift
| Standard | |||
| 1.1 | Manufacturer | NOELIFT | |
| 1.2 | Model | TKA10 | |
| 1.3 | Power Type | Battery | |
| 1.4 | Operation Type | Driving style | |
| 1.5 | Rated Capacity | Q(kg) | 1000 |
| 1.6 | Load Center | C(mm) | 500 |
| 1.8 | Front Overhand | x(mm) | 168 |
| 1.9 | Wheelbase | y(mm) | 975~990~1020 |
| Weight | |||
| 2.1 | Service Weight(incl.battery) | kg | 1700 |
| 2.2 | Weight distribution when loaded，drive side/load side | kg | 335 /2365 |
| 2.3 | Weight distribution when unloaded，drive side/load side | kg | 1045 /655 |
Products Certifications
RFQ
1. What is the warranty time for our products?
Within 1 year or 2,000 working hours since the products are on board.
2. How is the delivery time?
Normally the delivery time is 20 ~ 30 days after order confirmed and advanced deposit received. For the standard products, if we
have stock, the delivery time would be shorter.
Port of Loading: Guangzhou, Shenzhen
3. How is our MOQ?
For the standard products, we don't request any MOQ. If you need OEM service, MOQ is required. Please contact us for more details.
4. Q: I want to transport the truck by container, is it ok?
A: Yes, it is ok .But we need take apart the truck.You should reinstall in your country.
5. Q:How about your product quality?
A: All our spare parts are from the original manufacturers, the quality is 100% guaranteed.
6. Q:I want to be your agent in my country , is that ok?
A:It’s ok, If your quantity is big, we will consider. For the first time 50 units is ok.
7. Q: I want the front two tyres are bias tyre and the rear 9 tyres are radial tyres, is it ok?
A: We can make the tyres as your requirement to suit your country's need.
Company Information
NOELIFT EQUIPMENT CO.,LTD, works in forklift industrial for more than 10 years. we have agent in Malaysia and Peru and Canada. if you are looking for long-term cooperation, welcome to grow up together with us!
