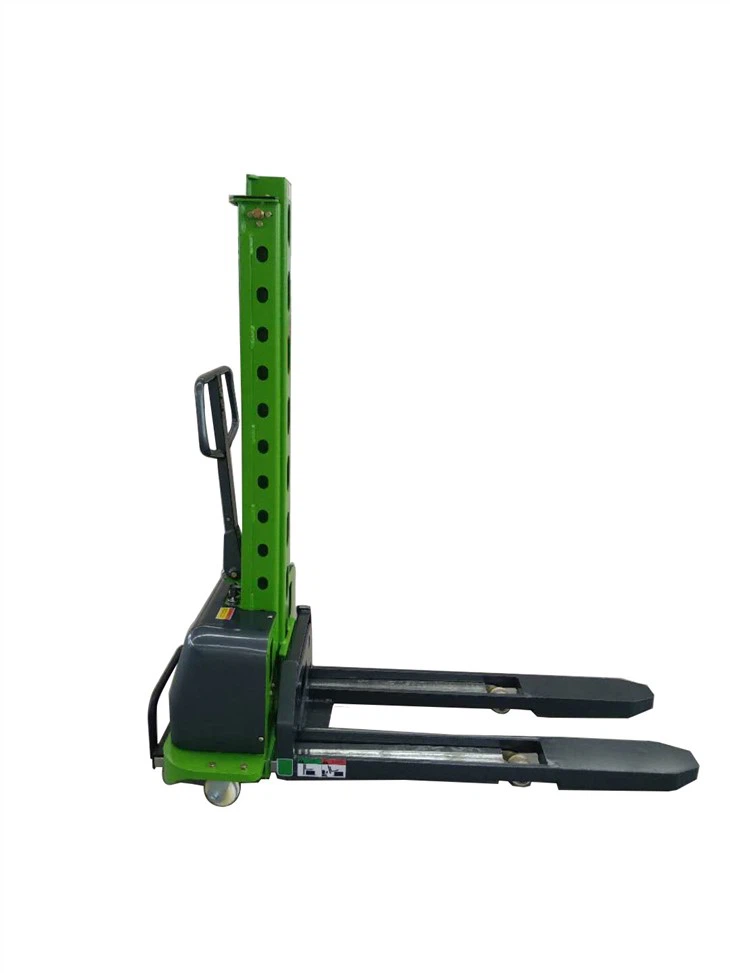

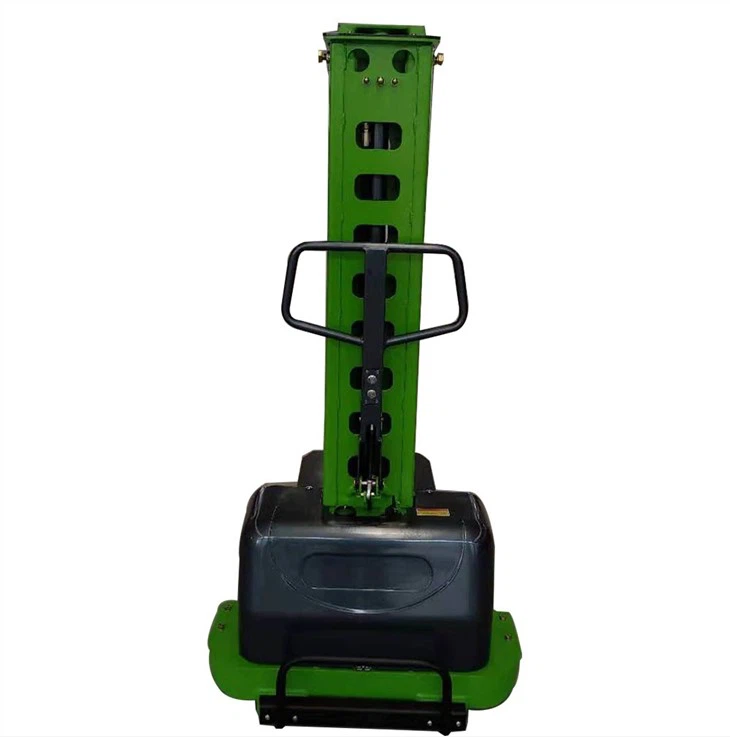

Semi-Electric Pallet Stacker Series CDD05

Features of portable electric stacker
Carrying capacity: The Noelift CDD series portable electric jack-up stacker has a carrying capacity of 500-1000 kg and is suitable for loading, unloading and handling of small and medium-sized goods.
Lifting height: These stackers can achieve a lifting height of up to 1.6 meters, allowing you to easily lift your goods to the desired height.
Portability: Due to their portable design, these stackers are very easy to carry and store, providing a more flexible way of use.

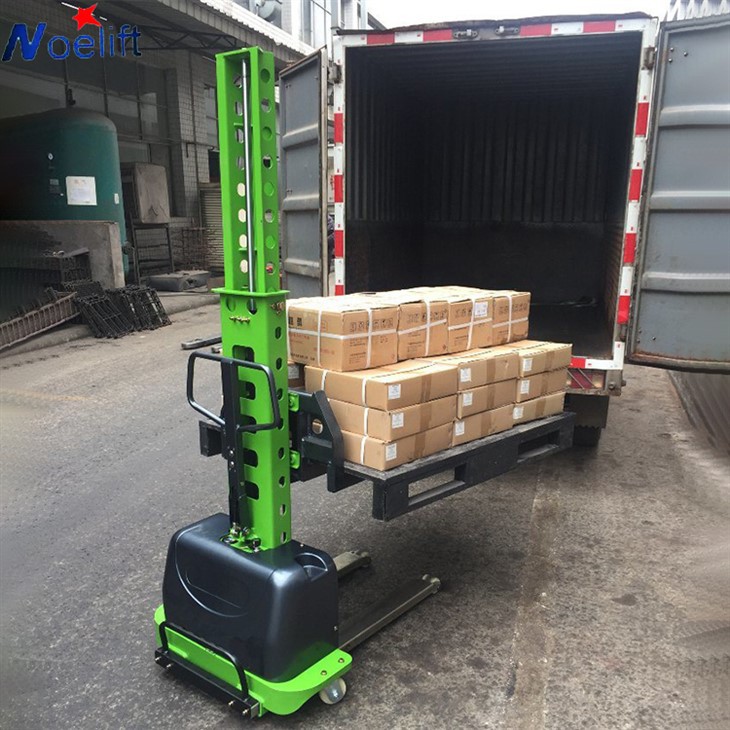

Applicability: Noelift CDD series stacker cranes can perform loading and unloading operations next to trucks, making your work more efficient and convenient.
Replaces traditional tail lifts: For less heavy cargo, these stackers can completely replace traditional tail lifts, allowing for a simpler and safer loading and unloading process.
The portable electric jack-up stacker is Noelift's professional product, providing you with efficient and flexible cargo handling solutions. Whether in a warehouse, factory or logistics center, our stackers provide you with outstanding performance and convenient operation. Choose Noelift for a high-quality portable stacker.





Manufacturer		NOELIFT	NOELIFT	NOELIFT	NOELIFT	NOELIFT	NOELIFT
Model		CDD0508	CDD0509	CDD0510	CDD0511	CDD0512	CDD0513
Power type		Battery	Battery	Battery	Battery	Battery	Battery
Driving style		Walkie	Walkie	Walkie	Walkie	Walkie	Walkie
Rated load	kg	500	500	500	500	500	500
Load center	mm	400	400	400	400	400	400
Wheelbase	mm	758	758	758	758	758	758
Total Weight(Include Battery)	KG	230	235	240	245	250	255
Battery weight	KG	13.5	13.5	13.5	13.5	13.5	13.5
Bearing wheel size	mm	φ70*60	φ70*60	φ70*60	φ70*60	φ70*60	φ70*60
Balanced wheel size	mm	φ100*45	φ100*45	φ100*45	φ100*45	φ100*45	φ100*45
Number of wheels(universal/bearing)		2/2	2/2	2/2	2/2	2/2	2/2
Min.Fork Height	mm	85	85	85	85	85	85
Max. Fork Height	mm	800	900	1000	1100	1200	1300

NOELIFT EQUIPMENT CO.,LTD, works in forklift industrial for more than 10 years. we have agent in Malaysia and Peru and Canada. if you are looking for long-term cooperation, welcome to grow up together with us!
