Full Electric Pallet Stacker With Capacity Of 2000kg
IT is a platen pallet stacker with a rated load of 1500k/2000kg. Itis mainly suitable for flat ground operation or floor and container operation.
Send Inquiry
Product Introduction

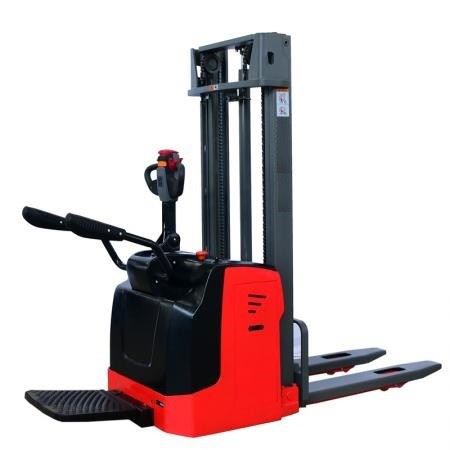

Full electric pallet stacker with capacity of 2000kg
| Manufacturer | NOELIFT | NOELIFT | NOELIFT | |
| Model | TB2030 | TB2030 | TB2045 | |
| Power type | Battery | Battery | Battery | |
| Driving style | Stand on | Stand on | Stand on | |
| Rated load | Q(kg) | 2000 | 2000 | 2000 |
| Load center | C(mm) | 600 | 600 | 600 |
| Service Weight(incl.battery) | kg | 1115 | 1300 | 1550 |
| wheel type | PU | PU | PU | |
| Load wheel size | mm | Φ80×70 | Φ80×70 | Φ80×70 |
| Drive wheel size | mm | Φ230×75 | Φ230×75 | Φ230×75 |
| Mast closed height | h1(mm) | 2025 | 2025 | 2100 |
| Free lift height | h2(mm) | / | / | / |
| Lift height | h3(mm) | 3000 | 3000 | 4500 |
| Mast extended height with load-backrest | h4(mm) | 3506 | 3490 | 5076 |
| Handle height(min/max) | h14(mm) | 1100/1390【1】 | 1100/1390【1】 | 1100/1390【1】 |
| Minimum height of fork surface | h13(mm) | 90 | 90 | 90 |
| Fork size | l/e/s(mm) | 1150/190/56 | 1150/190/56 | 1150/190/56 |
| Fork outside width | b5(mm) | 680/570【3】 | 680/570【3】 | 680/570【3】 |
| Mast ground clearance | m1(mm) | 30 | 30 | 30 |
