Four Wheel Electric Forklift Lifter Stacker

The advanced Curtis controller is more stable and safer. The wide view door frame design improves the work efficiency. The layout of the whole vehicle is more reasonable, with low center of gravity, small size and low weight.

Send Inquiry

Product Introduction

Parameter

Manufacturer		NOELIFT
Model		TK1530	TK1545	TK2030	TK2045	TK2530
Mast		maststd	full free Three stages mast	maststd	full free Three stages mast	maststd
Power unit		ELECTRIC	ELECTRIC	ELECTRIC	ELECTRIC	ELECTRIC
Operation		SEAT TYPE	SEAT TYPE	SEAT TYPE	SEAT TYPE	SEAT TYPE
Driving motor	Kw	AC6.8	AC6.8	AC6.8	AC6.8	AC6.8
Lifting motor	Kw	DC8.2	DC8.2	DC8.6	DC8.6	DC8.6
Capacity	kg	1500	1500	2000	2000	2500
Load center	mm	500	500	500	500	500
Tyre		Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic
front tire	mm	16*6-8-10PR	16*6-8-10PR	18*7-8-14PR	18*7-8-14PR	18*7-8-14PR
rear tire	mm	6.00-9-10PR	6.00-9-10PR	21*8-9-16PR	21*8-9-16PR	21*8-9-16PR
Lift Height	mm	3000	4500	3000	4500	3000
Overhead guard height	mm	2100	2100	2100	2100	2100
Seat height	mm	1090	1090	1090	1090	1090
Overall Length	mm	3205	3205	3410	3410	3410
Overall width	mm	1110	1110	1160	1160	1160
weight (including battery)	kg	2900	2900	3380	3380	3820
Fork size	mm	1070/100/35	1070/100/35	1070/100/40	1070/100/40	1070/100/45
Fork span	mm	1040	1040	1040	1040	1040
steering system		hydraulic	hydraulic	hydraulic	hydraulic	hydraulic
Battery	V/Ah	48/400	48/400	48/490	48/490	48/560
Controller		US CURTIS	US CURTIS	US CURTIS	US CURTIS	US CURTIS

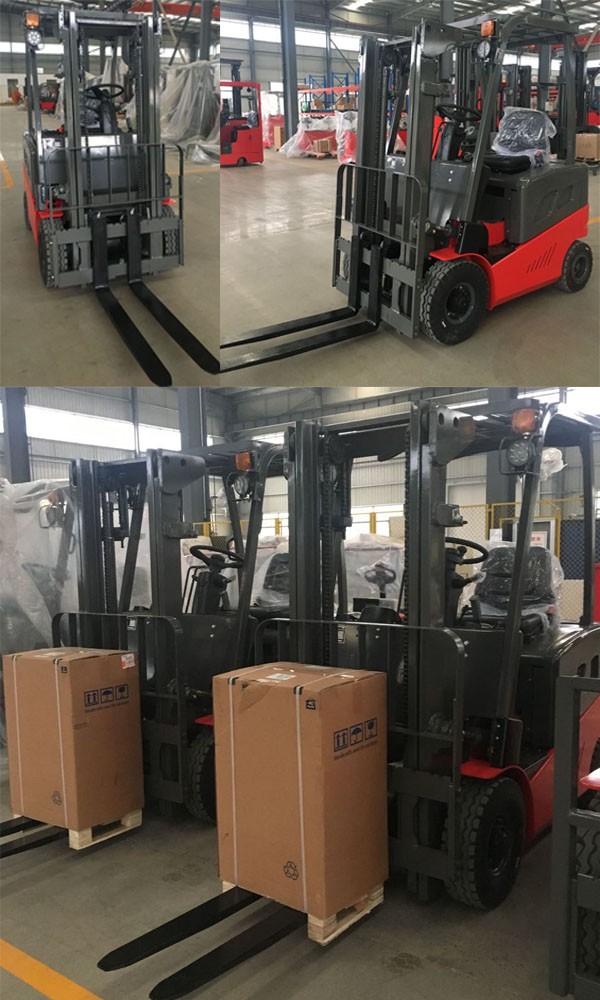

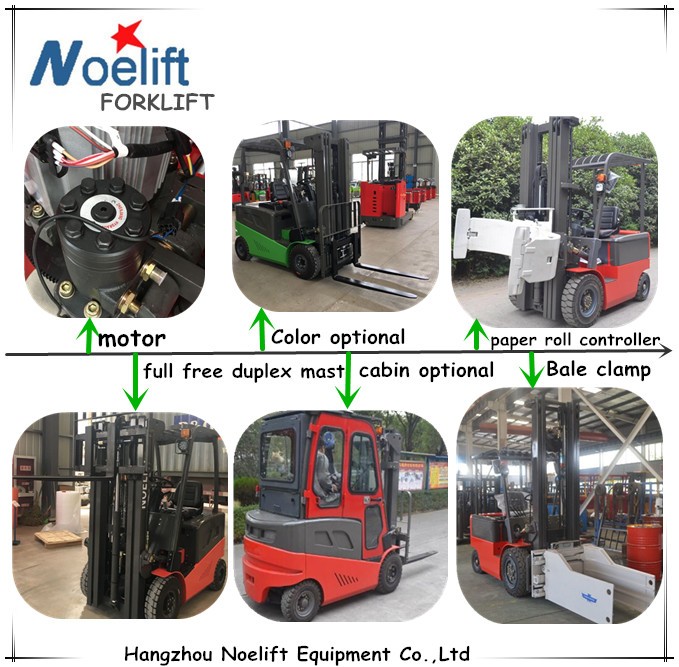

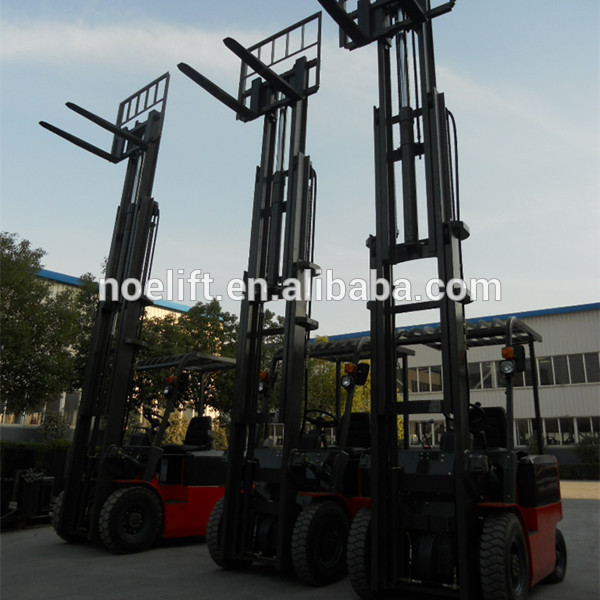

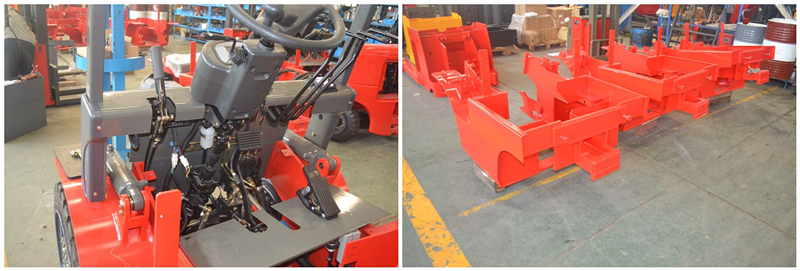

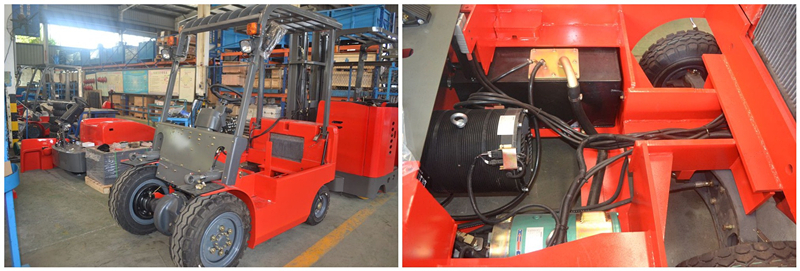

Detailed Images

Detailed Images Four Wheel Loading And Unloading Machine Mounted Forklift Electric Telehandler
