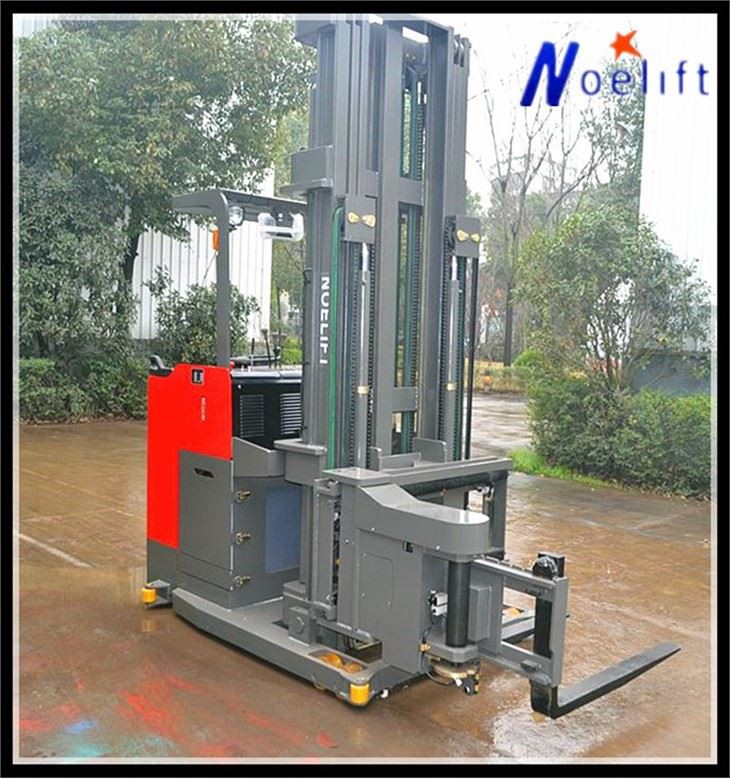

Good Price 1Ton 3-way Pallet Stacker

1. Loaded Capacity: 1000kg. Optional lift height: 3000-7500mm. 2. Environment-Friendly: Low noise and non-pollution electricity enegy adopted ensure Noelift 3-way electric pallet stacker Environment-Friendly. 3. Reliability: 3.1: Rear axle locked, it enhanced vehicle safety, ensure forklift stable when the forks lifting and side shift operating. 3.2: Modern AC truck with good performance, reliability and serviceability. Regenerative braking and lowering extend the operating time per battery charge. 3.3: Improved forks device, it could load and unload the goods from side when the fork landing, easy to take the goods from racks bottom. 3.4: Side pull high capacity battery, easy maintenance and replacement, and improve work efficiency. 3.5: Net width of the aisleis only 1480mm.
Send Inquiry
Product Introduction

Model

TC10(Double Mast)

TC10(Triplex Full Free Mast)

Power Type

Battery

Battery

Battery

Rated Capacity

1000KG

1000kg

Load Center

500MM

500MM

500MM

Front Overhand

657MM

657MM

Wheelbase

1605MM

1605MM

Service Weight(incl.battery)

4235KG

4775KG

Wheel Types

Pneumatic tire

0Free lift height

0MM

1690MM

Lift height

3000MM

4500MM

Overall length

2906MM

Overall width

1450MM

Turning radius

1880MM

Driving motor

(S2-60min)

AC5.5 KW

Lifting motor

(S3-15%)

AC8.6 KW

Battery weight

650KG

2021111216232458fa5eadc3324d778091c93e5d37c202

20211112162327504605790e994a24a0250a4afb7419c0

20211112162327e73e5dfbed5346a794de7574960b49a5

202111121623284e9ed5cc15454b709414eb6c4a22dda0

Certifications

202111121624402224627
