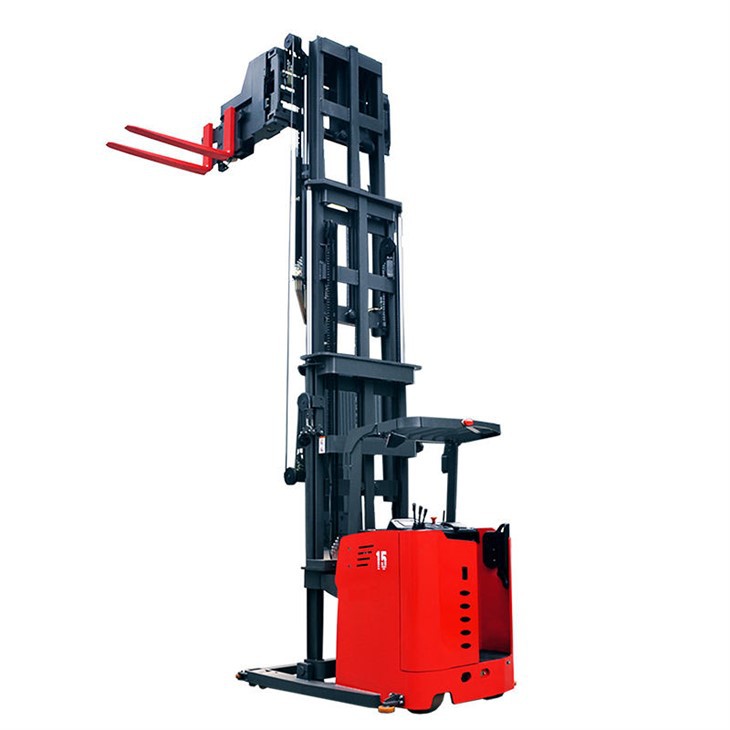

Very Narrow Aisle Vna Forklift 3 Way Electric Stacker

Main Features:

1.3-way pallet stacker forks can rotate 180°and do left-right side shift without body turning, with high strength mast design. Min. net channel: 1500mm; Max. lifting height: 9000m. The 3-way pallet stacker can improve space utlization and increase the storage capacity.

2.Advanced Curtis controller and more stable, safer whole-AC system for high efficency, energy conservation and environmental protection.

3.Maintenance-free whole-AC driving system for quick and accurate reaction. Maintenance-free motor, with long service life and low noise and low maintenance cost.

4.Standard electric power steering is safe and reliable, with easy and comfortable operation.

5.Large section mast structure design to ensure the rigidity of mast and improve loading performances, which is very suitable to high shelf storage.

6.Imported hydraulic parts for stable and reliable hydraulic system.

7.Side pull type battery for convenient charging and maintenance.

Standard
1.1	Brand		Noelift	Noelift
1.2	Model		TC15 (Duplex mast)	TC15 (Triplex full free mast)
1.3	Power type		Battery	Battery
1.4	Operation type		Stand on	Stand on
1.5	Rated capacity	Q(kg)	1500	1500
1.6	Load center	C(mm)	600	600
1.7	Front overhang	x(mm)	670	670
1.8	Wheelbase	y(mm)	1700	1700
Weight
2.1	Service weight(incl.battery)	kg	4715	5545
Wheel
3.1	Wheel type		PU	PU
3.2	Load wheel	mm	φ140×127	φ140×127
3.3	Drive wheel	mm	φ380×165	φ380×165
3.4	Auxiliary wheel	mm	φ204×76	φ204×76
3.5	Number of wheels,front/rear(x=drive wheel)		4 /1x+2	4 /1X+2
3.6	Wheel tread,drive side	b10(mm)	726	726
3.7	Wheel tread,load side	b11(mm)	1280	1280
Size
4.1	Mast closed height	h1(mm)	2570	2817
4.2	Free lift height	h2(mm)	0	1750
4.3	Lift height	h3(mm)	3000	4500
4.4	Mast extended height with load backrest	h4(mm)	4040	5555
4.5	Overhead guard height	h6(mm)	2260/2300	2260/2300
4.6	Stand board height	h7(mm)	355	355
4.7	Overall length	l1(mm)	2985	2985
4.8	Overall width	b1(mm)	1550	1550
4.9	Fork size	l/e/s(mm)	1200/125/50	1200/125/50
4.10	Installation level		II A	II A
4.11	Fork outside width	b5(mm)	265~760	265~760
4.12	Min.ground clearance	m1(mm)	40	40
4.13	Aisle width for pallet 1000x1000mm	Ast(mm)	1600	1600
4.14	Turning radius	Wa(mm)	1980	1980

Q1. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q2. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q3. How about your delivery time?
A: Generally, it will take 20 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q5: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.

1. One-stop solutions offer

2. OEM services offer

3. 24 hours non stop service offer

4. Track the products for you once every two days, until you get the products.

5. During warrarnty, spare parts delivery within one week for free.

NOELIFT EQUIPMENT CO.,LTD, works in forklift industrial for more than 10 years. we have agent in Malaysia and Peru and Canada. if you are looking for long-term cooperation, welcome to grow up together with us!
