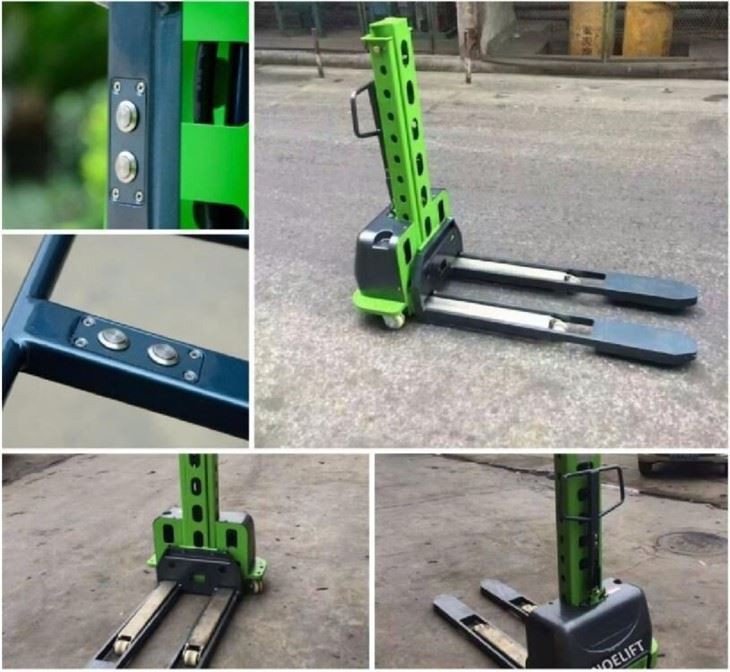

500kg Semi-electric Pallet Stacker Series 0.8m Forklift Stacker
Semi-electric pallet stacker Series CDD
Power type Battery
Driving style Walkie
Length of Fork mm 1150
Width of Fork mm 155
Overall Length mm 1570
Width mm 786
Overall Height(Mast Closed) mm 1097
Send Inquiry
Product Introduction
Product Description
Specification
| Manufacturer | NOELIFT | NOELIFT | NOELIFT | NOELIFT | NOELIFT | NOELIFT | |
| Model | CDD0508 | CDD0509 | CDD0510 | CDD0511 | CDD0512 | CDD0513 | |
| Power type | Battery | Battery | Battery | Battery | Battery | Battery | |
| Driving style | Walkie | Walkie | Walkie | Walkie | Walkie | Walkie | |
| Rated load | kg | 500 | 500 | 500 | 500 | 500 | 500 |
| Load center | mm | 400 | 400 | 400 | 400 | 400 | 400 |
| Wheelbase | mm | 758 | 758 | 758 | 758 | 758 | 758 |
| Total Weight(Include Battery) | KG | 230 | 235 | 240 | 245 | 250 | 255 |
| Battery weight | KG | 13.5 | 13.5 | 13.5 | 13.5 | 13.5 | 13.5 |
| wheel type | Nylon | Nylon | Nylon | Nylon | Nylon | Nylon | |
| Bearing wheel size | mm | φ70*60 | φ70*60 | φ70*60 | φ70*60 | φ70*60 | φ70*60 |
| Balanced wheel size | mm | φ100*45 | φ100*45 | φ100*45 | φ100*45 | φ100*45 | φ100*45 |
| Number of wheels(universal/bearing) | 2/2 | 2/2 | 2/2 | 2/2 | 2/2 | 2/2 | |
| Min.Fork Height | mm | 85 | 85 | 85 | 85 | 85 | 85 |
| Max. Fork Height | mm | 800 | 900 | 1000 | 1100 | 1200 | 1300 |
| External Distance Between Forks | mm | 535 | 535 | 535 | 535 | 535 | 535 |
| Length of Fork | mm | 1150 | 1150 | 1150 | 1150 | 1150 | 1150 |
| Width of Fork | mm | 155 | 155 | 155 | 155 | 155 | 155 |
| Overall Length | mm | 1570 | 1570 | 1570 | 1570 | 1570 | 1570 |
| Width | mm | 786 | 786 | 786 | 786 | 786 | 786 |
| Overall Height(Mast Closed) | mm | 1097 | 1197 | 1297 | 1397 | 1497 | 1597 |
| Overall Height(Min. Fork Height) | mm | 1118 | 1218 | 1318 | 1418 | 1518 | 1618 |
| Min.Turning Radius | mm | 1100 | 1100 | 1100 | 1100 | 1100 | 1100 |
