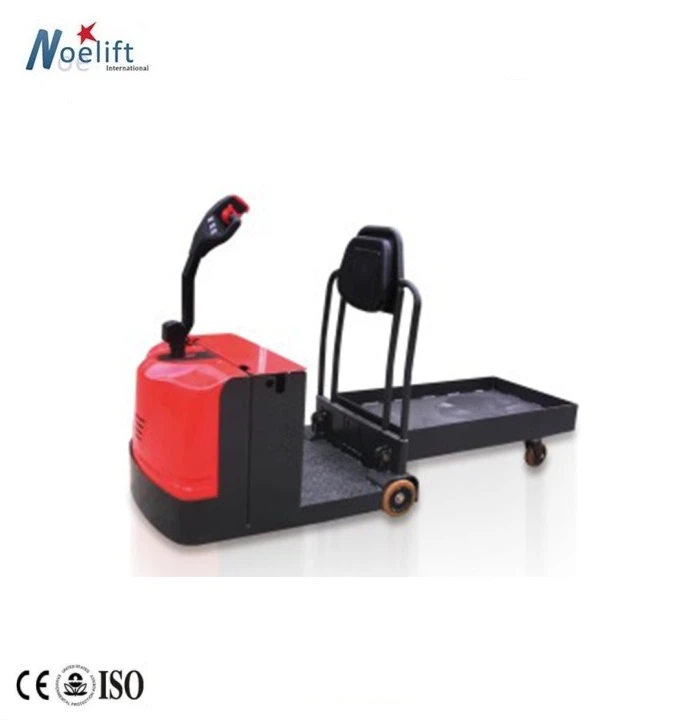

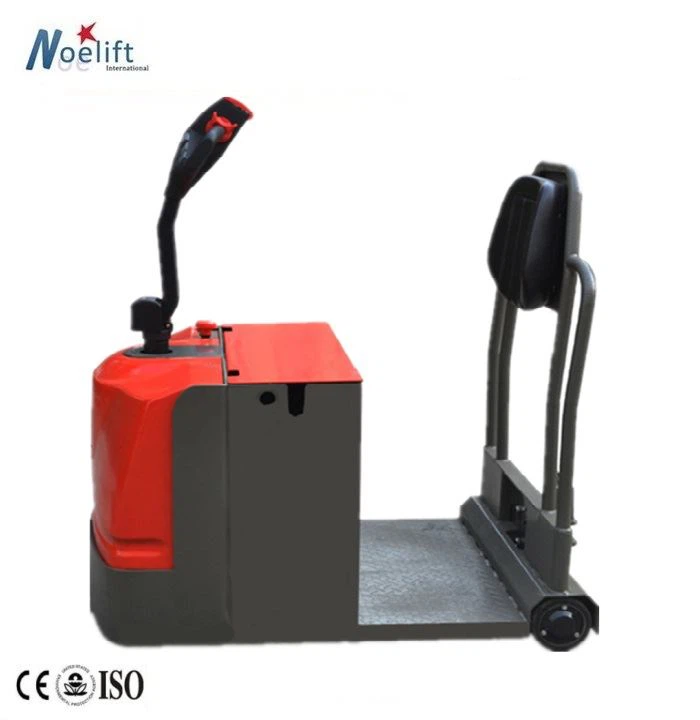

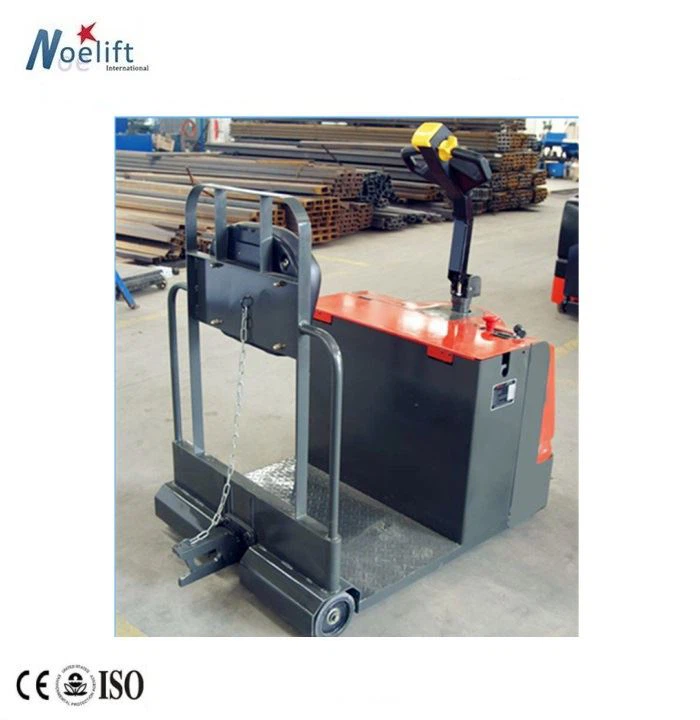

3ton Warehouse Trailer Electric Tow Tractor
Product introduce
3ton Warehouse Trailer Electric Tow Tractor
1.Maintenance-free high-power AC drive system provides reliable transmission power; 210AH large-capacity battery, strong endurance.
2.Standard configuration American CURTIS controller and instrument, reliable and durable.
3.The American AMP waterproof and dustproof plug-in provides reliable protection of the circuit and greatly reduces electrical failure.
4.Smart charger, convenient and fast charging, can well protect the battery.
5.Electromagnetic brake, automatic brake when power off, to ensure that the car will not slip when parking.
6.Integrated operating handle, safe, labor-saving, flexible operation.
Special Feature
1.Figure for standard truck version may vary according to equipment.
2.Optional configuration and non-standard customization:
3.Different capacity batteries:140-280Ah,Battery replaces:Side pull
4.Colors and specifications are subject to change without notice.
Product specification
1.Power:battery
2.Operation:stand-on
3.Wheelbase:975mm
4.Service weight with battery:550kg
5.Tyre:rubber
6.Axle loading ,unladen drive loading side:350/200kg
7.towing coupling height:140-240mm
8.Ground clearance,centre of wheelbase:50mm
9.Drive motor:AC1.5

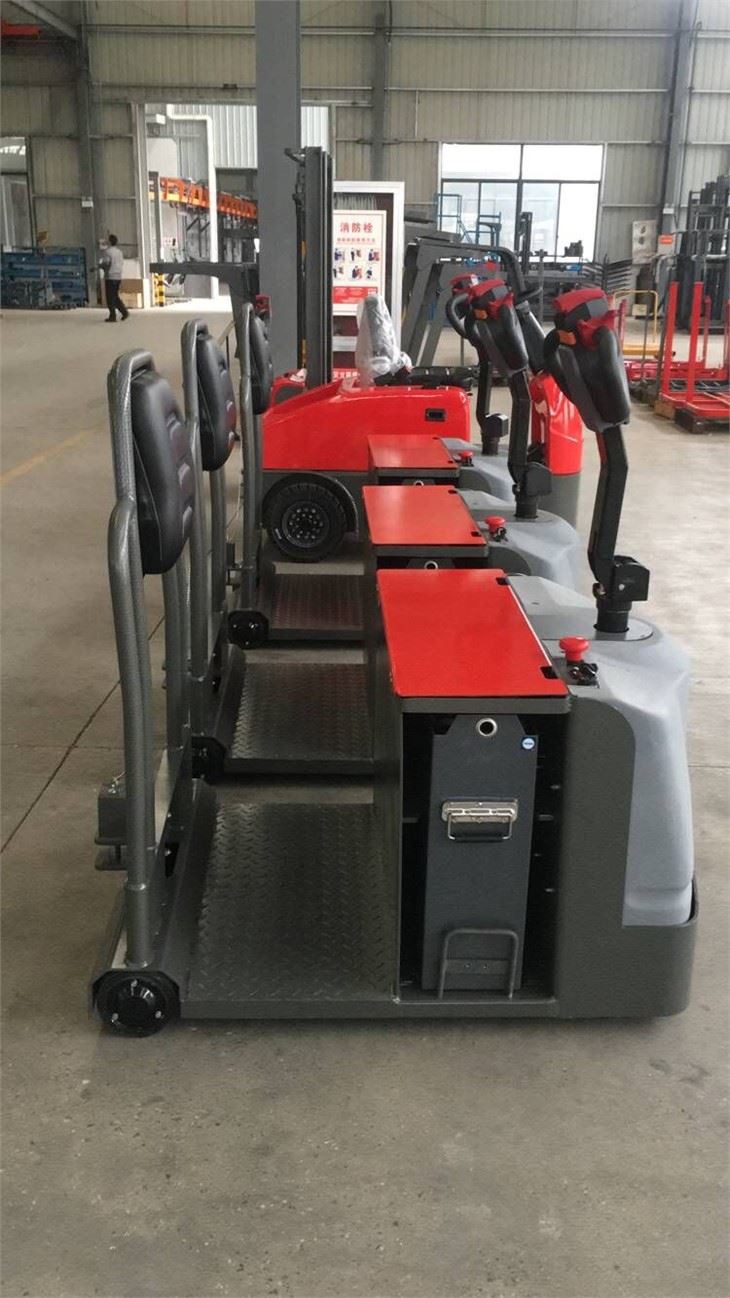

Product Photo




Company profile

Similar product

![1]3TIO0FU3VEW5H$5}JWMLB](/Content/uploads/2020513492/2020110311402893b1b6b453014ecd919c8afcab9c3c37.jpg)
| Model: | TG30 |
| Power type: | Battery |
| Operation: | stand-on |
| Wheelbase: | 975mm |
| Service weight(with battery): | 550kg |
| Battery weight: | 200kg |
| Tyre: | rubber |
| Overall height: | 1361mm |
| stand height: | 97mm |
| Overall length: | 1238mm |
| Overall width: | 850mm |
| Turning radius: | 1160mm |
| Battery voltage/rated capacity: | 24V/210Ah |
| Drive motor rating(S2-60 min): | 1.5kw |
