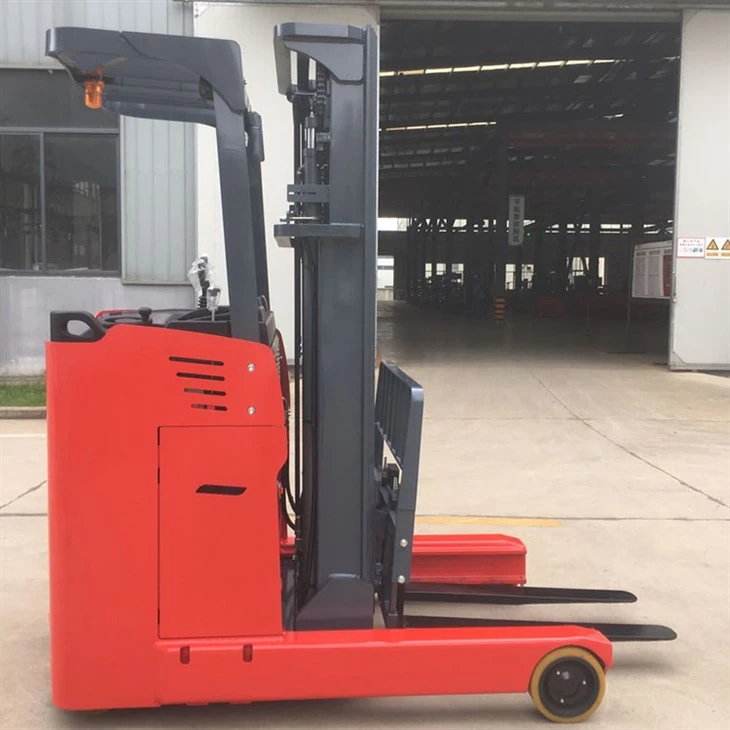

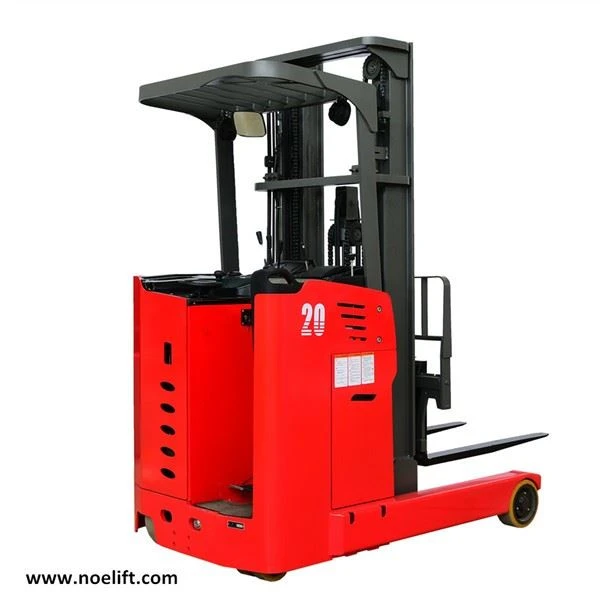

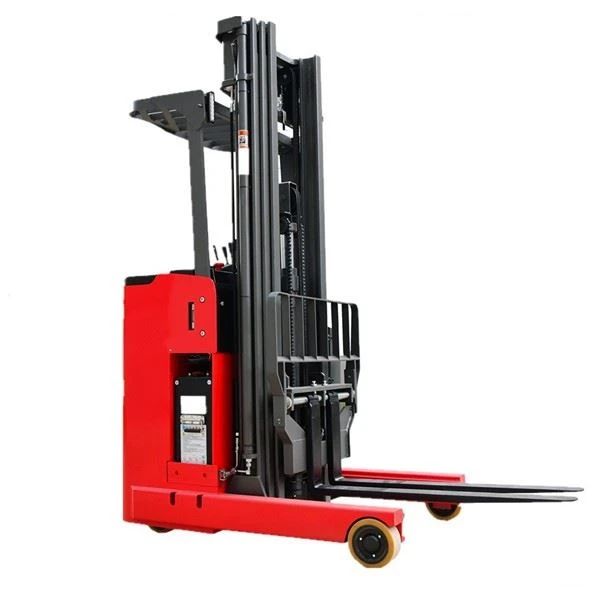

Standing Up Reach Forklift
The mast can be moved forward or retracted as a whole,
with a smaller body and turning radius and higher efficiency.
Standing Up Reach Forklift Description
Safety
Three braking systems. They can provide the necessary protection to machine or operator whatever the forklift is running or not. Ramp assist control system. It will provide reverse force on the tire immediately to prevent the vehicle backward when it starts on the ramp.
Comfortable
Buffering technology can reduce the vibration when the mast lifts up to the top or down to the bottom, and make goods less damaged and operator feel more comfortable.
Man-machine engineering design for the small steering wheel coordinating with the panel can provide a comfortable, safe and high efficiency environment for operators.
Energy save
Optimized structure and matching degree with standard AC driving and EPS(save the energy 20%) to make the forklift with better life time.
Electric reach truck, reach forklift, reach truck parts, warehouse forklift, forklift truck for sale
Important parameters
|
Model Number
|
TF25
|
Type of tyres
|
PU
|
|
Color
|
Red
|
Load center
|
500mm
|
|
Rated Loading Capacity
|
3000kg
|
Front
|
267x114mm
|
|
Max. Lifting Height
|
7200mm
|
Rear
|
343x108mm
|
|
Drive motor
|
AC
|
Fork Length
|
1070mm
|
|
lift motor
|
DC
|
MOQ
|
1 Piece
|
|
Battery
|
48/400 V/Ah
|
Turning radius
|
1965mm
|
|
Controller
|
American CURTIS
|
Travel speed(full load/no load)
|
7.5/8.5 km/h
|
certification
Our serivce
24+1 hours online services
one stop solution advisor.
tracking goods service untill client receive machine.
Company Information
NOELIFT EQUIPMENT CO.,LTD, works in forklift industrial for more than 10 years. we have agent in Malaysia and Peru and Canada. if you are looking for long-term cooperation, welcome to grow up together with us!
Hot Tags: standing up reach forklift, China standing up reach forklift manufacturers
