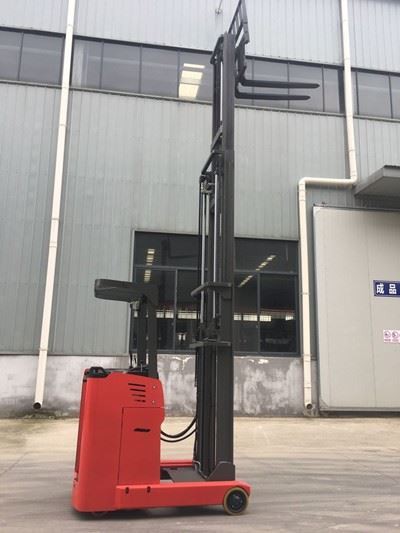

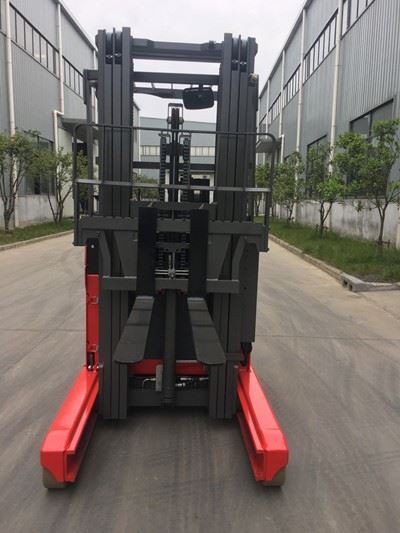

New Type 1.5ton Electric Reach Truck Small Electric Truck
The TF series is a new forward-moving forklift with a carrying capacity of 1.2 to 3.0 tons. The mast can be moved forward or retracted as a whole, with a smaller body and turning radius and higher efficiency.
Send Inquiry
Product Introduction
Product Description
Specification
| Brand | NOELIFT | NOELIFT | NOELIFT | NOELIFT | NOELIFT | |
| Model | TF15D(Duplex mast) | TF15D(Triplex full free mast) | TF15(Duplex mast) | TF15(Triplex full free mast) | TF20(Duplex mast) | |
| Power type | Battery | Battery | Battery | Battery | Battery | |
| Operation type | Stand on | Stand on | Stand on | Stand on | Stand on | |
| Rated capacity | Q(kg) | 1500 | 1500 | 1500 | 1500 | 2000 |
| Load center | C(mm) | 500 | 500 | 500 | 500 | 500 |
| Front overhang | x(mm) | 140 | 140 | 180 | 180 | 180 |
| Wheelbase | y(mm) | 1345 | 1345 | 1345 | 1345 | 1545 |
| Service weight(incl. battery) | kg | 2100 | 2350 | 2450 | 2850 | 2750 |
| Axle capacity with no load,drive side/load size | kg | / | / | 1625/825 | 1900/950 | / |
| Axle capacity with full load(fork forward)drive side/load size | kg | / | / | 660/3290 | 600/3750 | / |
| Axle capacity with full load(fork backward)drive side/load size | kg | / | / | 1510/2440 | 1600/2750 | / |
| Wheel type | PU | PU | PU | PU | PU | |
| Front wheel | mm | Φ210×85 | Φ210×85 | Φ254×104 | Φ254×104 | Φ254×104 |
| Drive wheel | mm | Φ230×110 | Φ230×110 | Φ343×108 | Φ343×108 | Φ343×108 |
| Auxiliary wheel | mm | Φ180×76 | Φ180×76 | Φ180×76 | Φ180×76 | Φ180×76 |
| Number of wheels-front/rear (x=drive wheel) | 2/1 x+2 | 2/1 x+2 | 2/1 x+2 | 2/1 x+2 | 2/1 x+2 | |
| Wheel tread,drive side | b10(mm) | 615 | 615 | 680 | 680 | 680 |
| Wheel tread,load side | b11(mm) | 999 | 999 | 964 | 1064 | 1064 |
Company profile
Certificate
Our Service
1. ONE-STOP SHOP service
2.Customized service
3. 12 months warranty, free spare parts delivery within one week.
