Hydraulic Stacker Forklift Semi Electric Pallet Stackers
Details Images

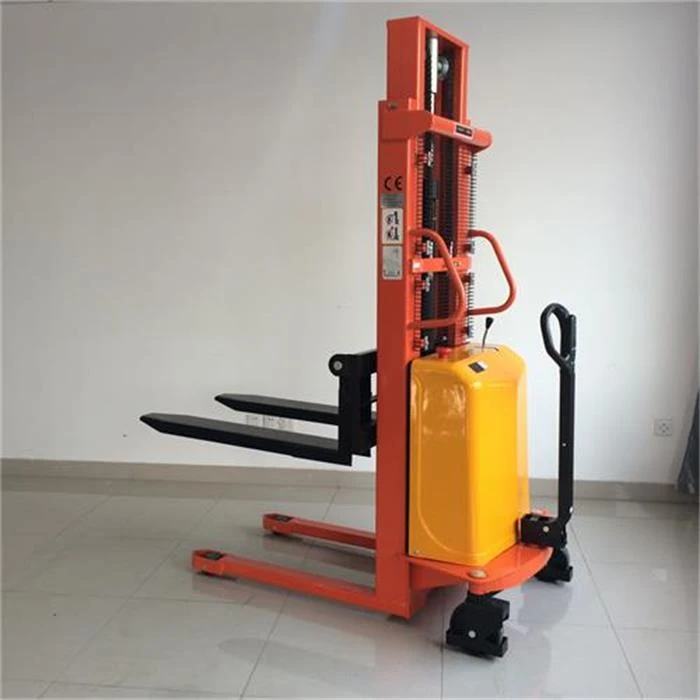

wide leg of semi electric pallet stacker
Certifications
1. beautiful outline, streamline contour manke it extraordinary and outstanding.
2. high quality steel ensures that pallet truck has stable and remarkable strength.
3. mechanical brake mechanism can safely stop pallet truck under any circumstances.
4. steering wheel protection and safety hood make your operation to be more trustworthy.
5. higher strength strucural design.
6. rated capacity from 1 ton to 2 ton
Single mast series
| 项目 | 单位 | 型号 Model | ||
Item | Unit | DYC1016 | DYC1516 | DYC2016 |
额定载荷 Rated capacity | kg | 1000 | 1500 | 2000 |
载荷中心 Load center | mm | 400 | ||
货叉最大高度 Max.fork height | mm | 1600 | ||
机器最大高度 Max.machine height | mm | 2010 | ||
货叉尺寸 Fork size | mm | 1150*160 | ||
货叉外宽 Fork width | mm | 可调节货叉 adjusting width （340-760） 固定货叉 fixed width（540） | ||
支腿外宽 Outer width of front leg | mm | 630/490 | ||
电机 Battery | V/KW | 12/1.5-1.6 | ||
免维护电池 Aneroid battery | V/AH | 12/120 | ||
充电器 Charger | V/A | 12/15 | ||
整机长度 Overall length | mm | 1660 | ||
整机宽度 Overall width | mm | 800 | ||
整机高度 Overall height | mm | 2060 | ||
整机重量 Overall net weight | kg | 350 | 365 | 390 |
Double mast series
| 项目 | 单位 | 型号 Model | ||||
Item | Unit | DYC1020/1520 | DYC1025/1525 | DYC1030/1530 | DYC1030/1530 | DYC1030/1530 |
额定载荷 Rated capacity | kg | 1000/1500 | 1000/1500 | 1000/1500 | 1000/1500 | 2000 |
载荷中心 Load center | mm | 400 | ||||
货叉最大高度 Max.fork height | mm | 2000 | 2500 | 3000 | 3500 | 2000 |
机器最大高度 Max.machine height | mm | 2560 | 3060 | 3560 | 4060 | 2560 |
货叉尺寸 Fork size | mm | 1150*160 | ||||
货叉外宽 Fork width | mm | 可调节货叉 adjusting width （340-760） 固定货叉 fixed width（540） | ||||
支腿外宽 Outer width of front leg | mm | 630/490 | ||||
电机 Battery | V/KW | 12/1.5-1.6 | ||||
免维护电池 Aneroid battery | V/AH | 12/120 | ||||
充电器 Charger | V/A | 12/15 | ||||
整机长度 Overall length | mm | 1660 | ||||
整机宽度 Overall width | mm | 800 | ||||
整机高度 Overall height | mm | 1580 | 1830 | 2080 | 2330 | 1580 |
整机重量 Overall net weight | kg | 425 | 450 | 470 | 500 | 470 |
