Electric Counterbalance Forklift Truck MK30/35/40/45/50
Send Inquiry
Product Introduction

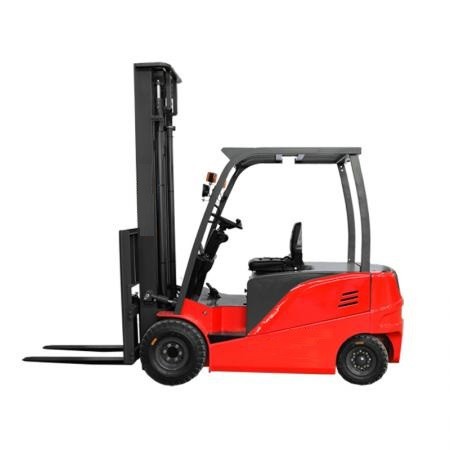

Electric Forklift Truck MK30/35/40/45/50
Adopting a brand-new concept and novel streamlined appearance design, which improves the visual effect. The whole vehicle has a compact appearance, simple appearance, firmness and reliability.
| Model | MK30 | MK35 | MK40 | ||
| Power Type | Battery | Battery | Battery | Battery | |
| Rated Capacity | Q(kg) | 3000 | 3000 | 3500 | 4000 |
| Load Center | C(mm) | 500 | 500 | 500 | 500 |
| Front Overhand | x(mm) | 433 | 433 | 484 | 484 |
| Wheelbase | y(mm) | 1700 | 1700 | 1800 | 1800 |
| Service Weight(incl.battery) | kg | 4370 | 4460 | 4870 | 5300 |
| Wheel Types | Pneumatic tire | Pneumatic tire | Pneumatic tire | Pneumatic tire | |
| Load Wheel | mm | 18×7-8 | 18×7-8 | 18×7-8 | 18×7-8 |
| Drive wheel | mm | 23×9-10 | 23×9-10 | 23×10-12 | 23×10-12 |
| Number of wheels,,front/rear(x=drive wheel) | 2x/2 | 2x/2 | 2x/2 | 2x/2 | |
| Wheel tread,drive side | b10(mm) | 970 | 970 | 1080 | 1080 |
| Wheel tread,load side | b11(mm) | 960 | 960 | 990 | 990 |
| Model | MK30 | MK35 | MK40 | ||
| Power Type | Battery | Battery | Battery | Battery | |
| Rated Capacity | Q(kg) | 3000 | 3000 | 3500 | 4000 |
| Load Center | C(mm) | 500 | 500 | 500 | 500 |
| Front Overhand | x(mm) | 433 | 433 | 484 | 484 |
| Wheelbase | y(mm) | 1700 | 1700 | 1800 | 1800 |
| Service Weight(incl.battery) | kg | 4370 | 4460 | 4870 | 5300 |
| Wheel Types | Pneumatic tire | Pneumatic tire | Pneumatic tire | Pneumatic tire | |
| Load Wheel | mm | 18×7-8 | 18×7-8 | 18×7-8 | 18×7-8 |
| Drive wheel | mm | 23×9-10 | 23×9-10 | 23×10-12 | 23×10-12 |
| Number of wheels,,front/rear(x=drive wheel) | 2x/2 | 2x/2 | 2x/2 | 2x/2 | |
| Wheel tread,drive side | b10(mm) | 970 | 970 | 1080 | 1080 |
| Wheel tread,load side | b11(mm) | 960 | 960 | 990 | 990 |
