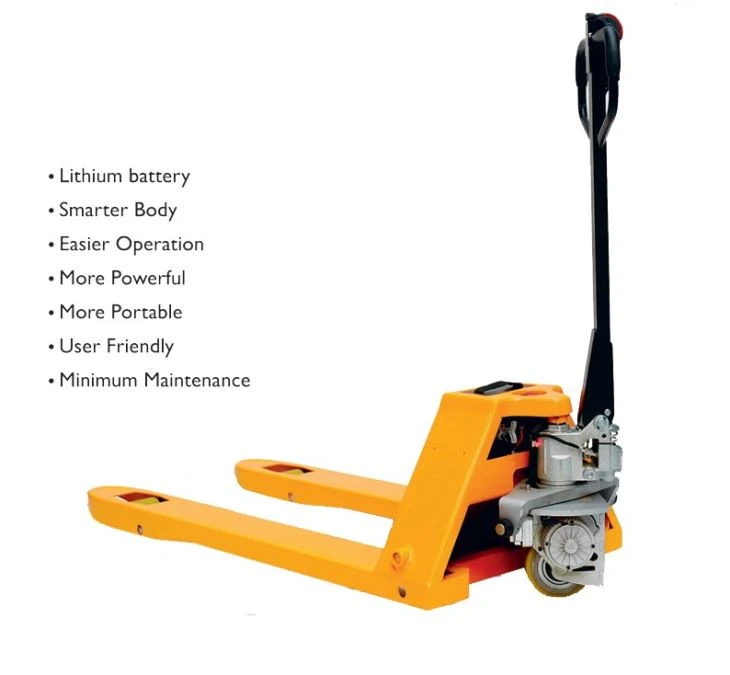

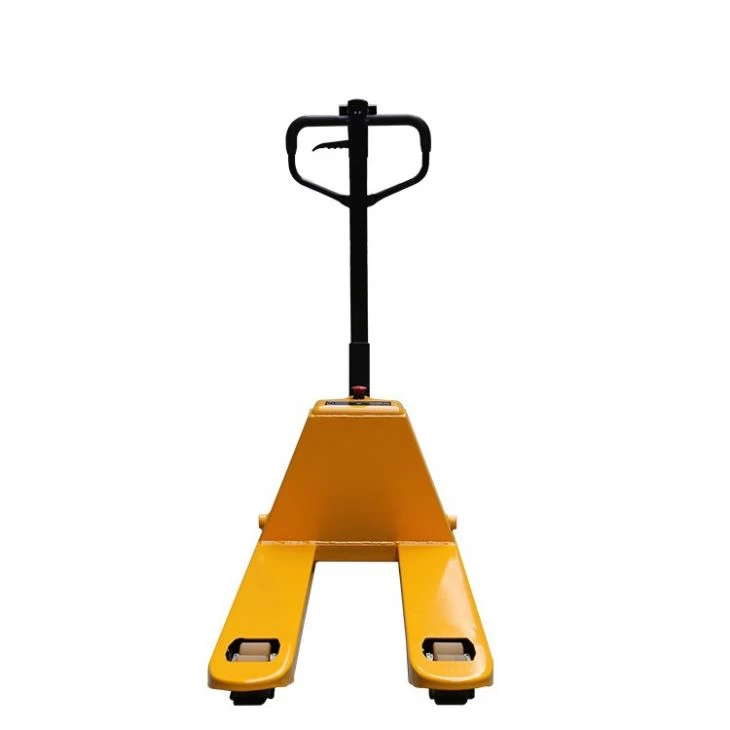

1.5ton Semi Electric Pallet Truck ET15MH
Lithium battery, easy to change and charge the battery.
Small demension, small turning radius, similar to hand pallet truck size.
Forks size 560x1150mm or 680x1150mm,
PU wheels. Lithium battery with charger.
Semi-electric Pallet Jack Specifications
Lower costs and more functional advantages are offered by semi-electric design. Like a regular pallet truck, the forks are raised manually. DC traction drive system that runs on batteries for easy transportation of large objects. The handle has an emergency stop button and throttle control levers for forward and backward motion.
Features include an on-board battery charger, a battery charge level indicator, and two 12V batteries.
Travel speed is 1.7 mph when loaded and 1.8 mph when empty. Five percent is the maximum grade.
Specifiction parameters
| 1 | Model | ET15MH | ||
| 2 | Operation type | walkie | ||
| 3 | Power Type | battery | ||
| 4 | Rated Capacity | Q,kg | 1500 | |
| 5 | Load Centre | C,mm | 600 | |
| 6 | Wheel type | PU | ||
| 7 | Wheelbase | Y,mm | 1170 | |
| 8 | * Fork width | mm | 540 or 680 | |
| 9 | Overall Height | H1,mm | 1250 | |
| 10 | Max. lifting height | H2,mm | 200 | |
| 11 | Fork height(Lowered) | H3,mm | 85 | |
| 12 | Turning Radius (outside) | R,mm | 1320 | |
| 13 | Overall Length | L1,mm | 1546 | |
| 14 | Overall Width | B,mm | 540/680 | |
| 15 | Drive motor | Kw | 0.45 | |
| 16 | Travel Speed(laden/unladen) | km/h | 4/4.5 | |
| 17 | Max.Gradeability(laden/unladen) | % | 3/18 | |
| 18 | Aisle width for pallet 1000x1200mm | mm | 1800 | |
| 19 | Aisle width for pallet 800x1200mm | mm | 1710 | |
| 20 | Battery Voltage/Capacity | V/Ah | 24/20 Li-battery | |
| 21 | Service weight | kg | 110 | |
Products Certifications
FAQ
Q1. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q2. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q3. How about your delivery time?
A: Generally, it will take 20 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q5: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
Our services
1. One-stop solutions offer
2. OEM services offer
3. 24 hours non stop service offer
4. Track the products for you once every two days, until you get the products.
5. During warrarnty, spare parts delivery within one week for free.
Products Information
NOELIFT EQUIPMENT CO.,LTD, works in forklift industrial for more than 10 years. we have agent in Malaysia and Peru and Canada. if you are looking for long-term cooperation, welcome to grow up together with us!
