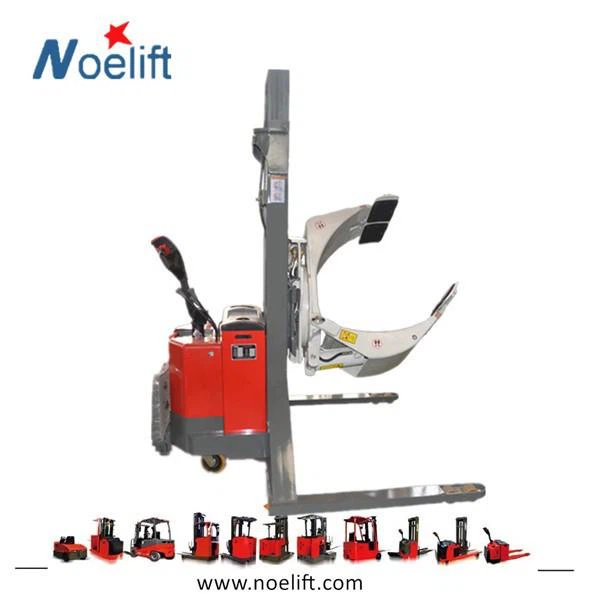

Paper Roll Clamp Electric Stacker

Product Description Product Application 2ton electric pallet stacker, TB Series steering wheel full electric pallet stacker with Paper Roll Clamp, rated load capacity: 2000kg, lift height: 1600-5000mm, used for single face pallet; loaing & unloading goods, carrying goods from warehouse to...

Send Inquiry

Product Introduction

Product Description

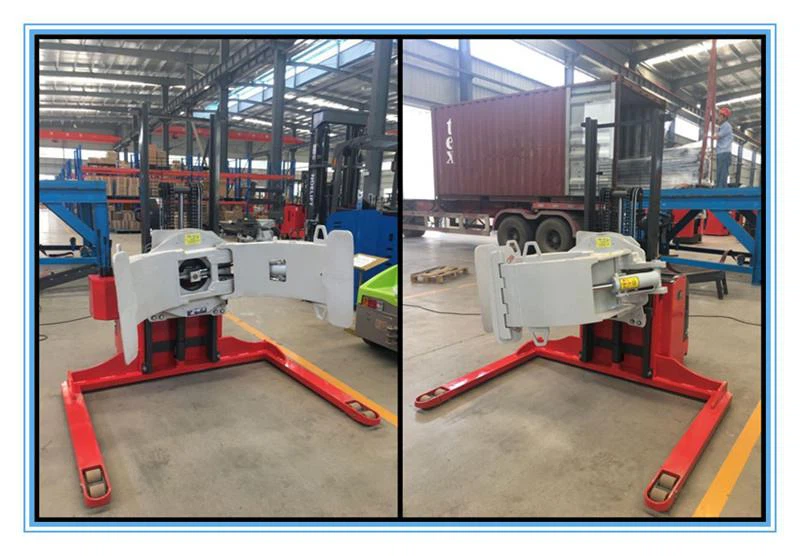

paper roll electric pallet stacker

Product Application for the electric pallet stacker with paper roll clamp

1.5ton electric pallet stacker, TB15-S Series steering wheel full electric pallet stacker with Paper Roll Clamp,

rated load capacity: 1500kg, lift height: 1600-5000mm, used for single face pallet; loaing & unloading goods, carrying goods from warehouse to shop, supermarket, logistics port so on.

SPECIFICATIONS FOR ELECTRIC PALLET STACKER
Model		TB15	TB20
Load capacity	kg	1500	2000
Load center	mm	500	500
Operate Type		Self propelled	Self propelled
Wheelbase	mm	1208	1208
Lift height	mm	1600/2500/3000/3300	1600/2500/3000/3300
Mast lowered height	mm	2150/1785/2035/2185	2150/1785/2035/2185
Fork height, lowered	mm	85	85
Overall length	mm	2056	2056
Overall width	mm	850	850
Fork size(LxWxH)	mm	1150x190x56	1150x190x56
Outside Fork Width	mm	680	680
Drive motor	kw	1.5	1.5
Lift motor	kw	2	2
Battery	V/Ah	24/210	24/210
Total weight	kg	1100	1115
