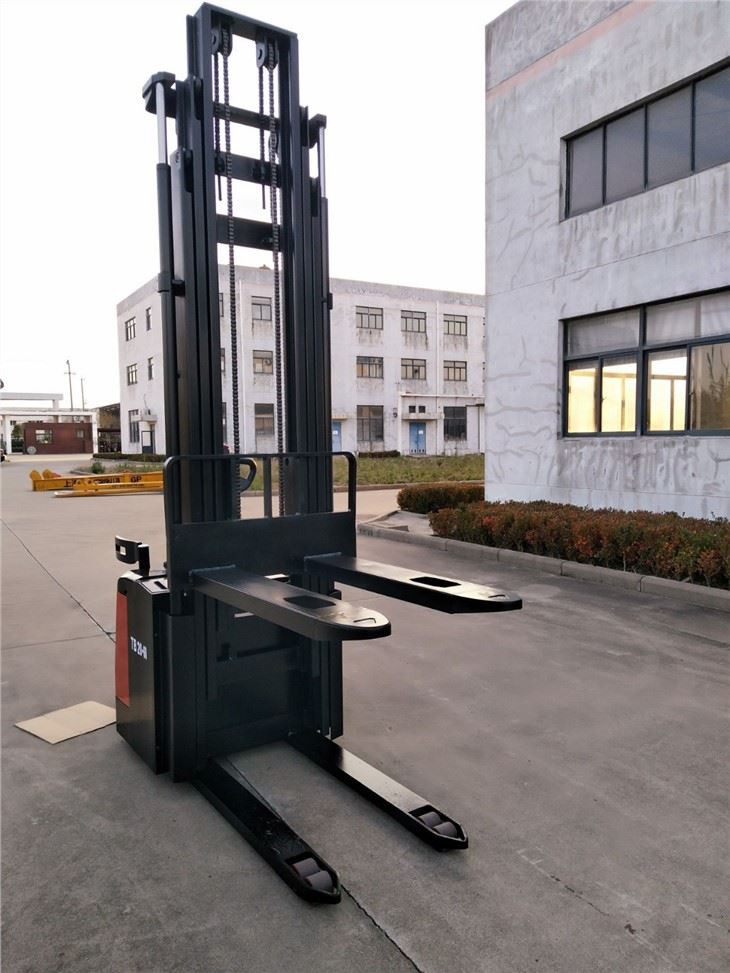

TB Warehouse Forklift 1500kg 4.5m Electric Pallet Stacker
Electric pallet stacker Series TB
TB15 is a platen pallet stacker with a rated load of 1500kg, It is mainly suitable for flat ground operation or floor and container operation.
TB
TB
PRODUCT ADVANTAGE
1.Station-driven steering makes the control more convenient and flexible.
2.The latest CURTIS AC control system is accurate, stable and eficient.
3.Station driving pedal adopts shock absorption design, which greatly improves station riding comfort and reduces long driving fatigue.

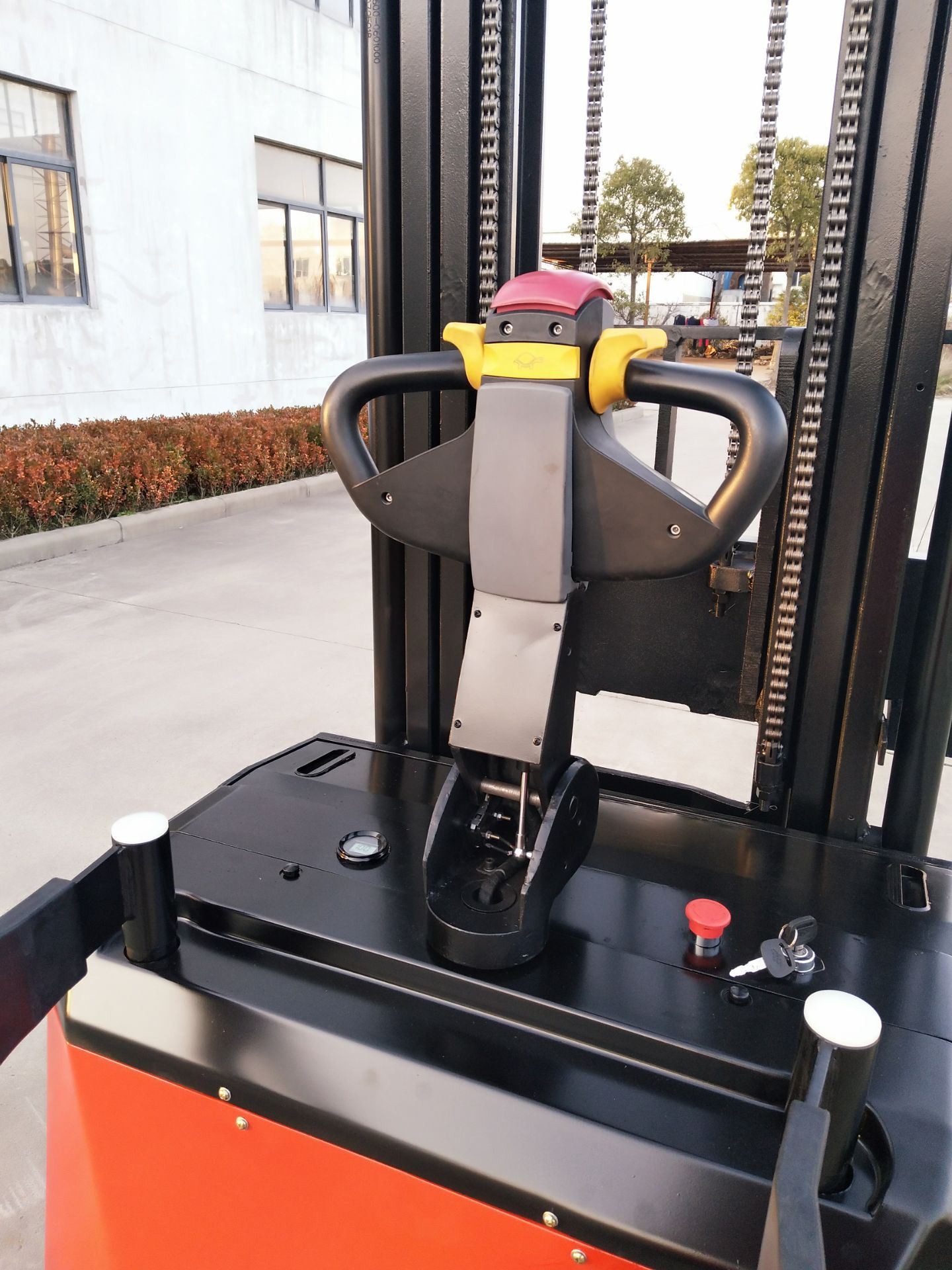

4.The integrated control handle is simple and beautiful, and all operation functions can be easily completed by one hand.
5.The frame is a high strength steel frame structure with 5 fulcrums and low center of gravity. It has a large redundant bearing capacity.Long service life;
6.he whole system adopts imported waterproof connectors, all wires and cables have reliable protection, greatly improving the electrical system.Relabilt;
7.It has three braking functions: release brake, reverse brake and emergency brake to ensure the safety of driving.
8.The stand-and-ride guardrail is formed in one body, which can better protect operators.
9.Station-driven standard vehicle speed automatically reduces with the increase of steering angle.
10.Ithas the function of reducing buffer and efectively protects the safety of goods.
TB
TB
Specification
item | value |
Applicable Industries | Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company |
After Warranty Service | No service |
Local Service Location | None |
Showroom Location | None |
Condition | New |
Place of Origin | China |
Brand Name | NOELIFT |
Power Souce | AC Motor |
Min. Lifting Height | 30 |
Fork Length | 1150mm |
Fork Width | 56mm |
Overall Dimensions | 2130*1000*2135mm |
Certification | CE |
Warranty | 1 Year |
Free spare parts | |
Machinery Test Report | Provided |
Video outgoing-inspection | Provided |
Marketing Type | Ordinary Product |
Warranty of core components | 1 Year |
Core Components | Pressure vessel, Motor, Other, Bearing, Gear, Pump, PLC |
Product Name | Electric pallet stacker |
Loading Capacity | 1500kg |
Power type | AC Power |
Model | TB15 |
Brand | NOELIFT |
Color | Customer Demanded |
Packing
