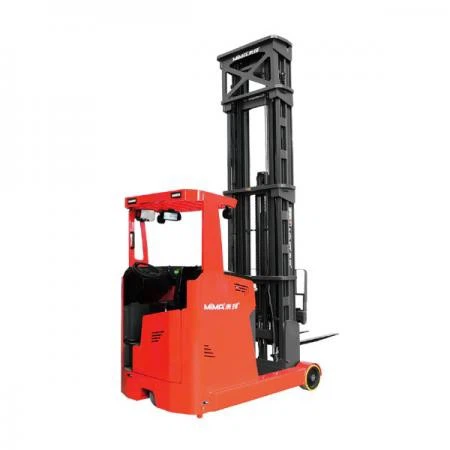

Seated Reach Truck with 7m Lifting Height
The TFZ series is a new type of reach forklift with a carrying capacity of 1.6 to 2.0 tons. The mast can be
Move forward or retract as a whole, with a smaller body and turning radius and higher
effectiveness.
Applies to: -Working conditions with medium storage density and high turnover rate -Stacking in narrow passage
| Brand | NOELIFT | NOELIFT | |
| Power type | Battery | Battery | |
| Operation type | Seated | Seated | |
| Rated capacity | Q(kg) | 1600 | 2000 |
| Load center | C(mm) | 500 | 500 |
| Front overhang | x(mm) | 205 | 205 |
| Free Lift height | h2(mm) | 3504 | 3504 |
| Lift height | h3(mm) | 10000 | 10000 |
| Mast extended height with load-backrest | h4(mm) | 10930 | 10930 |
| Overall length | l1(mm) | 2496 | 2496 |
| Overall width | b1/b2(mm) | 1270/1390 | 1270/1390 |
| Fork size | l/e/s(mm) | 1070×122×40 | 1070×122×40 |
| Fork carriage width | b3(mm) | 1090 | 1090 |
| Fork outside width | b5(mm) | 266-725 | 266-725 |
| Inner leg width | b4(mm) | 990 | 990 |
| Reach stroke | l4(mm) | 617 | 617 |
| Mast ground clearance | m1(mm) | 75 | 75 |
| Aisle width for pallet 1000*1200mm(C=500mm) | Ast(mm) | 2912 | 2912 |
| Aisle width for pallet 800*1200mm(C=600mm) | Ast(mm) | 2956 | 2956 |
| Turning radius | Wa(mm) | 1872 | 1872 |
| Driving speed(load/unload) | km/h | 8.5/10 | 8.5/10 |
| Lifting speed(load/unload) | mm/s | 200/300 | 260/360 |
| Lowering speed(load/unload) | mm/s | 300/250 | 300/250 |
| Max.gradeability(load/unload) | %(tanθ ) | ≤10 | ≤10 |
| Battery weight | kg | 780 | 920 |
| Steering system | EPS | EPS | |
| Battery replacement type | Side pull | Side pull |
