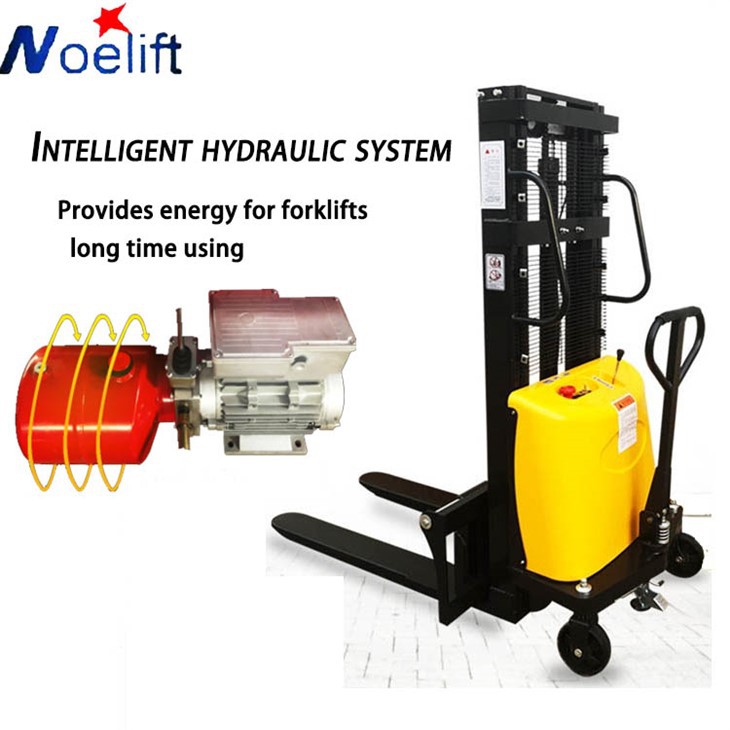

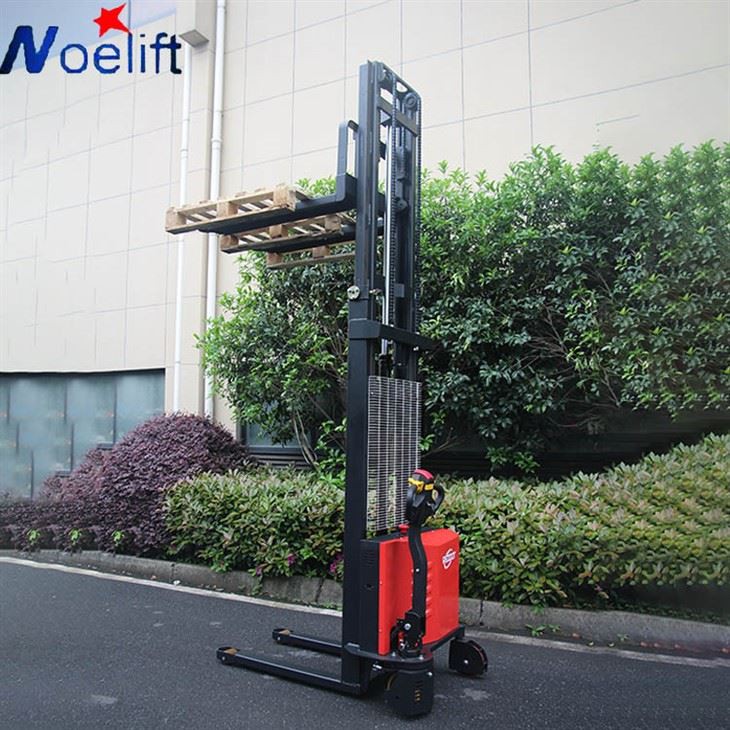

Portable Walkie Electric Stacker 2500mm Lifting Height
◆ Quick replacement and fast charging of lithium batteries;
◆ Compact and powerful, can work in small spaces;
◆ Low voltage protection function to remind users to charge in time;
◆ Modular design, easy maintenance and repair;
◆ Charging protection function, the vehicle is locked during charging to prevent misoperation.
ESC 15-25 Description
1. Compact body of 500 kg light weight; it allows to work more portable for confined space.
2. 1500kg loads capacity, 3000mm lift height.
3. Free maintenanced 24V/75ah big capacity battery.
4. Straddle leg design for Australia, American use particularlly.
5. Curtis controller for stable and efficiency operating system.
6. Dual side operating handle is easy for single hand operating, ergonomic for anti-fatique.
7. Limit switch automatically reduces maximum travel speed immediately when extention higher than 700mm.
8. The explosion-proof valve in the hydraulic system control the emergency of rapid fork decline caused by hydraulic tube rupture.
9. Big drive wheel is separatly protected and easy to change.
Important parameters
| Description | Electric Stacker | |
| 1 | Model | ES10-30 |
| 2 | Loading Capacity | 1000kg |
| 3 | Power type | Battery |
| 4 | Load center | 500mm |
| 5 | Operation type | Walkie |
| 6 | Wheelbase | 1255mm |
| 7 | Service weight(incl battery) | 480kg |
| 8 | Load wheel | PU,Φ100 |
| 9 | Drive wheel | PU, Φ210 |
| 10 | Number of wheels | 2/1x+2 |
| 11 | Height of mast, extended | 3516mm |
| 12 | Mast closed height | 2050mm |
| 13 | Lift height | 3000mm |
| 14 | Handle height | 1100/1390mm |
| 15 | Outside turning radius | 1405mm |
| 16 | Overall length | 1670mm |
| 17 | Min. height of fork | 70mm |
| 18 | Overall width | 800mm |
| 19 | Driving speed(Unload/Load) | 3.0km/h/ 2.5km/h |
| 20 |
Lifting speed(Unload/load) |
100/112 mm/s |
| 21 | Fork size | 1070*100*35mm |
| 22 | Brake type | Electromagnetic |
| 23 | Lifting motor | 2.2Kw (DC) |
| 24 | Driving motor | 0.65Kw(AC) |
| 25 | Battery | 24V/75Ah |
| 26 | Controller | Curtis, USA |
Products Certifications
Our services
1. One-stop solutions offer
2. OEM services offer
3. 24 hours non stop service offer
4. Track the products for you once every two days, until you get the products.
5. During warranty, spare parts delivery within one week for free.
Company Information
NOELIFT EQUIPMENT CO.,LTD, works in forklift industrial for more than 10 years. we have agent in Malaysia and Peru and Canada. if you are looking for long-term cooperation, welcome to grow up together with us!
