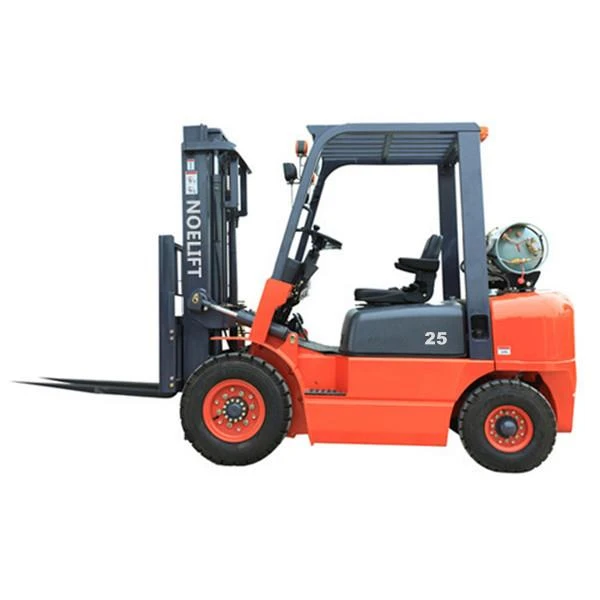

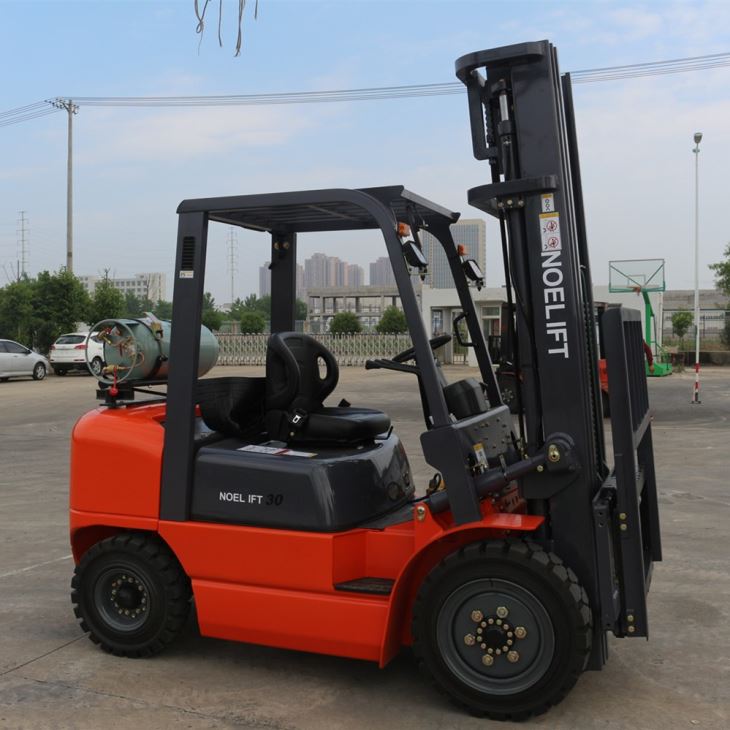

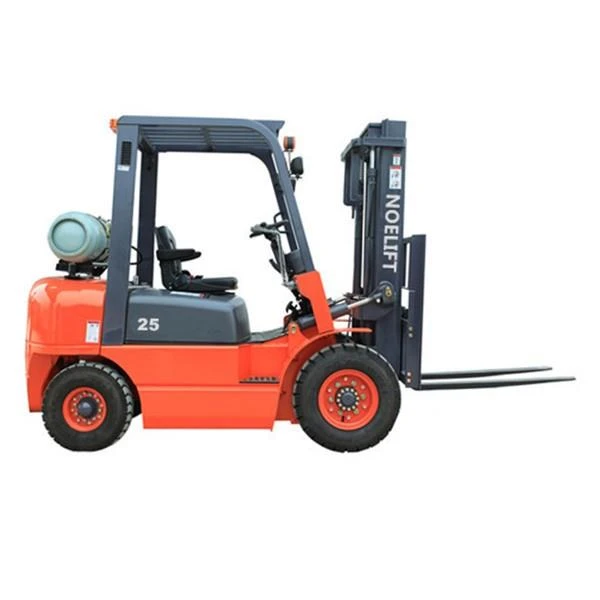

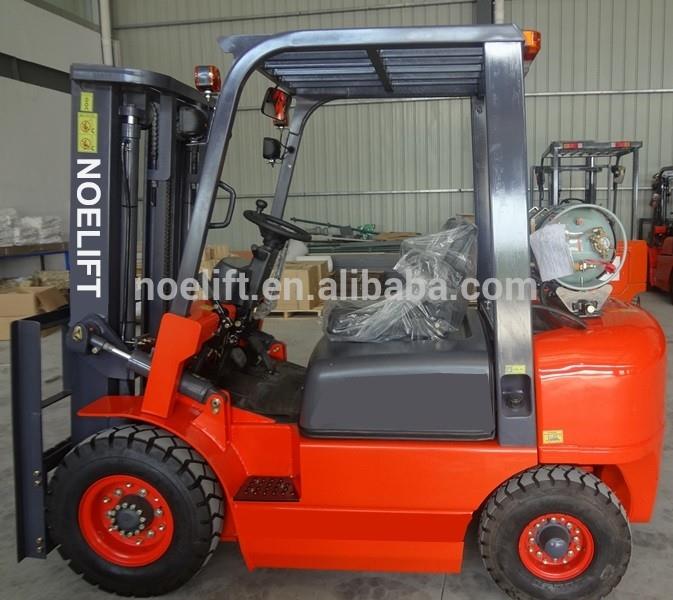

LPG Gasoline Powered Forklift With Paper Roll Clamp
Products Features
- The machine body is designed with big arc streamline and fitted with open anti-slippage pedal.High position air suction inlet is fitted behind the top protection frame above the column to ensure the engine absorbs clean air and prolong the service life.The engine hood has functions of sound absorption and heat isolation.
- Rear in-built dual lifting cylinder is used,wide visual view,safety operation and high efficiency.
- A hydraulic converter produced by introduction of japanese technology,high efficiency,no oil leakage,reliable work,compact structure of hydraulic transmission,shift gear valve,micromotion valve,characterized by smooth starting,stepless speed adjustmet,micromotion and acceleration performance.
Details Images
Attachment
Certifications
GQ-4Y 1.5 ton gasoline and LPG forklift
| Model | unit | FD15 | FD20 | FD25 | FD30 | FD35 | FD40 |
| Power type | LPG | ||||||
| Rated capacity | kg | 1500 | 2000 | 2500 | 3000 | 3500 | 4000 |
| Load center | mm | 500 | |||||
| Operator type | Drive in seat | ||||||
| Height of mast | mm | 1985 | 2000 | 2000 | 2065 | 2180 | 2150 |
| Free lift height | mm | 125 | 170 | 170 | 160 | 170 | 150 |
| Wheelbase | mm | 1400 | 1600 | 1600 | 1700 | 1700 | 1900 |
Min. turning radius (outside) | mm | 2060 | 2170 | 2240 | 2400 | 2420 | 2700 |
| Fork size | mm | 920*100*35 | 1070*100*40 | 1070*125*45 | 1070*125*50 | 1070*130*50 | |
| Quantity of wheels | 2X/2 | ||||||
| Type of tyres | Penumatic | ||||||
| Battery | v/ah | 12/80 | |||||
| Total weight | kg | 2680 | 3320 | 3680 | 4270 | 4700 | 5310 |
