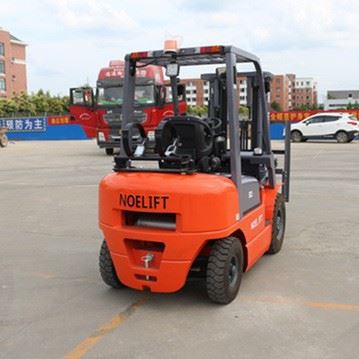

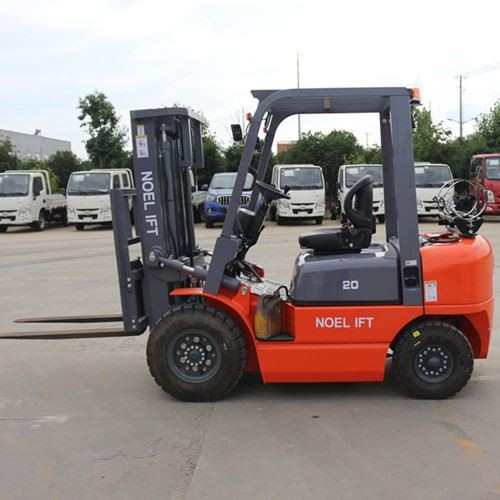

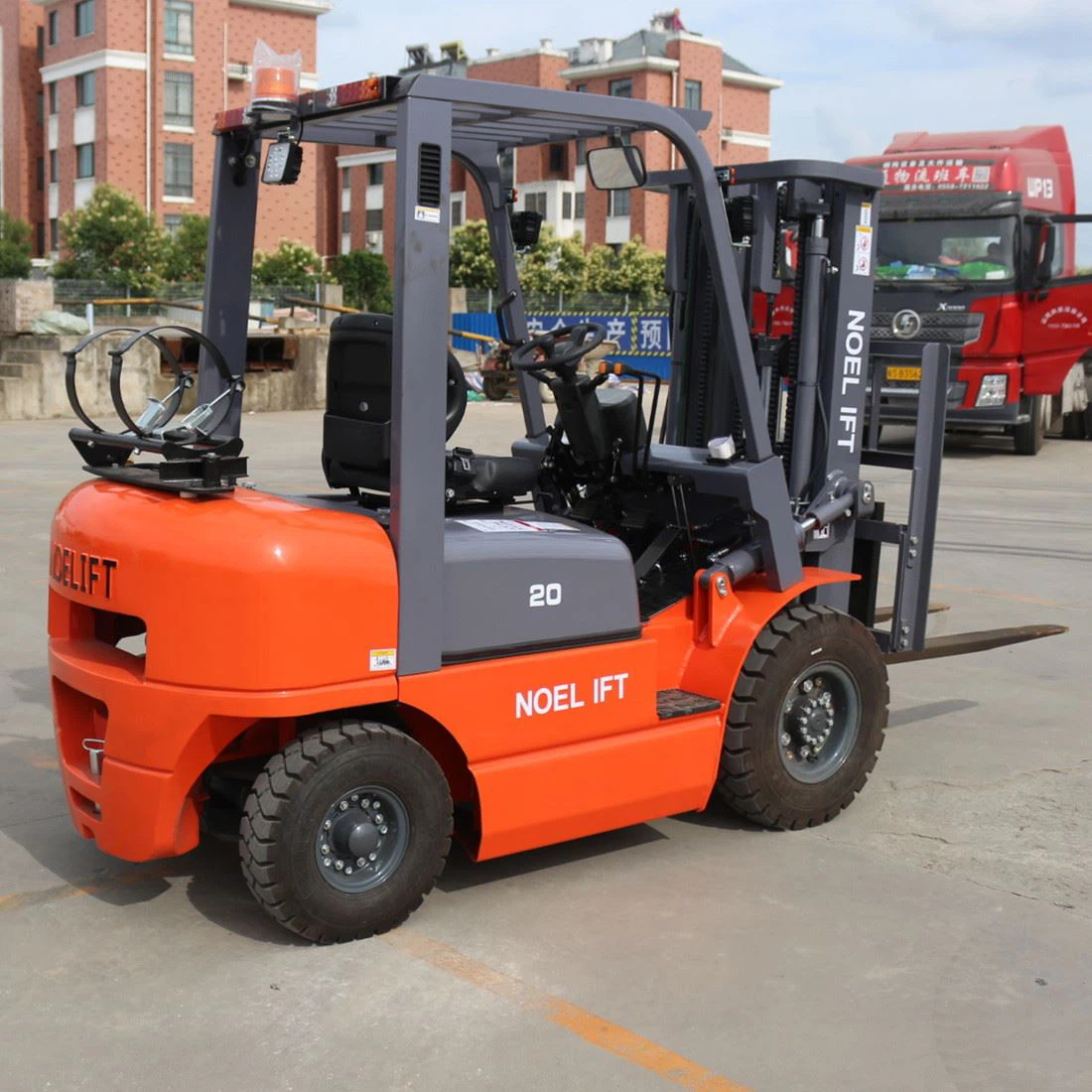

Industrial Triplex Mast Lpg Gasoline Forklift
Product Description of Industrial Triplex Mast Lpg Gasoline Forklift





Specification
| Model | FD20 FG(L)20 | FD25 FG(L)25 | FD30 FG(L)30 | FD35 FG(L)35 | ||||||
| Power type | Diesel/Gasoline/LPG | |||||||||
| Rated capacity | KG | 2000 | 2500 | 3000 | 3500 | |||||
| Load center | MM | 500 | ||||||||
| Liftheight | MM | 3000 | ||||||||
| Free lift height | MM | 140 | 145 | |||||||
| Fork size | MM | 1070×120×40 | 1070×120×45 | 1070×125×45 | 1070×130×45 | |||||
| Mast tilt angle | deg | 6\12 | ||||||||
| Front overhang | MM | 484 | 489 | 494 | 500 | |||||
| Length to fork facea | MM | 2510 | 2580 | 2720 | 2775 | |||||
| Overall width | MM | 1150 | 1225 | |||||||
| Mast lowered heightdimension | MM | 2050 | 2080 | 2230 | ||||||
| Mast extended height | MM | 4040 | 4272 | |||||||
| Overhead guard height | MM | 2060 | 2090 | |||||||
| Turning radius | MM | 2170 | 2240 | 2460 | 2540 | |||||
| Hydraulic | KG/H | 17/19 | 18/19 | |||||||
| Mechanical | Shift Ⅰ | 8.5/9 | 8.8/9 | |||||||
| ShiftⅡ | 18.5/19 | 18.5/20 | ||||||||
| Lift speed with load | MM/SEC | 470 | 430 | 400 | ||||||
| Max. grade ability | 20 | 15 | ||||||||
| Service weight | KG | 3550 | 3880 | 4380 | 4750 | |||||
| Front | 7.00-12-12PR | 28×9-12-12PR | 28×9-15-14PR | |||||||
| Rear | 6.00-9-10PR | 6.50-10-10PR | ||||||||
| Front | 970 | 1000 | ||||||||
| Rear | MM | 970 | 970 | |||||||
NOELIFT EQUIPMENT CO.,LTD, as one of the professional material handling equipment manufacturer, we provide whole product range including diesel/gasoline/LPG forklift truck with load capacities of 1 to 10tons and electric/warehouse trucks, which including 1-3.5tons electric forklift trucks, 1-2.5tons electric reach trucks, electric stackers, electric pallet trucks, hand-hydraulic pallet trucks, semi-electric stackers, electric tow tractors, etc. The full range encompassess close to 100 different models.
Our products passed ISO 9001: 2000 Quality System Certification, and got CE, GS certificate and third-party detection instituation test.
Considering the requirements of customers, we realize that a better price should be combined with the best service. Therefore, we will promise to provide quality products at a lower price, and provide you with 7x24 hours of online service. Let's join hands and you'll find what you want. Any agent or distributor would be very grateful.
