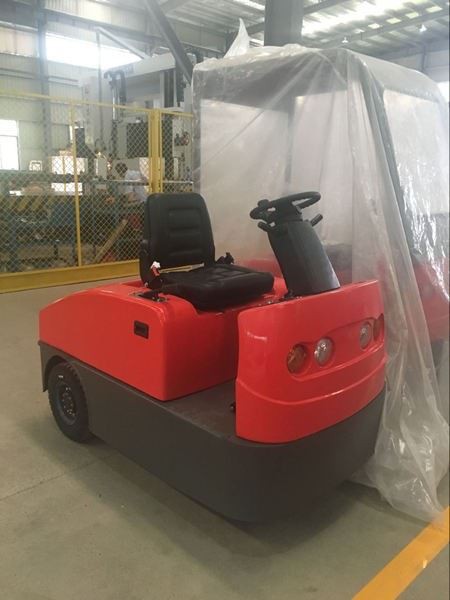

ELECTRIC TOW TRACTOR With A Capacity 4-6 Tons
electric tow tractor with a capacity 4-6 tons
PRODUCT ADVANTAGE
1. The maintenance-free AC drive system reduces maintenance costs. The high-efficiency and optimized AC power system extends the working time after one charge;
2. The integrated machine cover facilitates the maintenance of electrical components such as batteries, motors, and controllers;
3. The standard CURTIS AC control system of the whole system provides efficient and accurate adjustment performance and various regeneration functions;
4. The American AMP waterproof and dustproof plug-in provides reliable protection of the circuit and greatly reduces electrical failure;
5. The jog button at the rear of the vehicle makes it more convenient and quick for the operator to hang up the cargo and improve efficiency;
6. The battery sinks into the bottom of the frame, and the ultra-low center of gravity position ensures the stability of the whole machine;




| Manufacturer | NOELIFT | NOELIFT | |
| Model designation | TGA40 | TGA60 | |
| Power unit | Battery | Battery | |
| Operation type | Seat | Seat | |
| Rated drawbar pull | F(N) | 800 | 1200 |
| Wheel base | y(mm) | 1040 | 1040 |
| Service weight(incl. battery) | kg | 920 | 1000 |
| Axle loading, laden front/back | kg | / | / |
| Axle loading, unladen front/back | kg | 365/555 | 410/590 |
| Tyre,front/back | Solid /Pneumatic tyre | Solid /Pneumatic tyre | |
| Tyre size,front | mm | 4.00-8 | 4.00-8 |
| Tyre size,back | mm | 4.00-8/6PR | 4.00-8/6PR |
| Wheels number,front/back(x=driven) | 1/2X | 1/2X |
