Mini 3 Wheel Electric Forklift With Sideshift
video

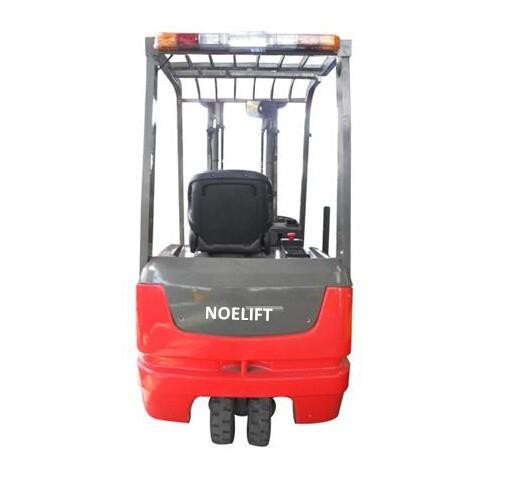

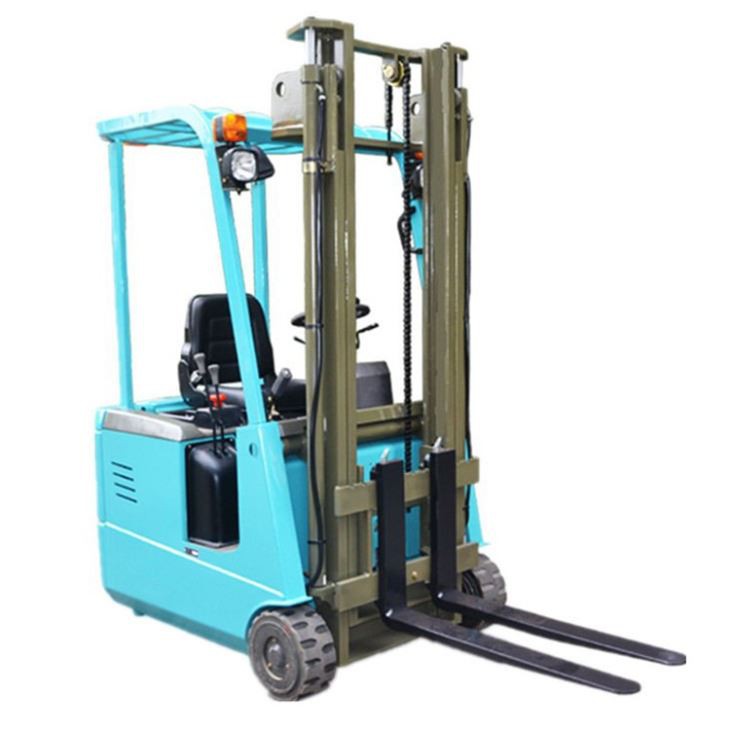

Mini 3 Wheel Electric Forklift With Sideshift

Welcome Noelift, this is 3 wheel electric forklift, a most popular forklift around the world. But why it is so popular? Because the qualitty? the transport? or the servise? Come on! It is the time to choose us. 3 WHEEL ELECTRIC FORKLIFT FEATURES 1.Loaded Capacity: 1ton, 1.5tons. Optional lift height: 3000-6000mm. 2. Environment-Friendly: Low noise and non-pollution electricity enegy adopted ensure Noelift 3-wheel electric forklift Environment-Friendly. 3. Reliability: 3.1: Two of the kinematic each a precursor is independent motor drive, can be separated into gear and motor two parts, each motor driver is a single and complete transmission device, it is superior performance, self-control and safe operation of the strong double driver. 3.2: Better Stability:Low layout for battery , low center of gravity; 3.3: full hydraulic power-assisted steering system,easy to steering and save the energy; 3.4: Curves safe control: the speed will automatic reduced when turning,to aviod the possibility of rollover; 3.5: Regenerative braking function to increase the working hours for forklift; 3.6: Better Durability: unitary frame with better strength and rigidity, 3.7: Full AC technology with high Efficiency and reliability; 4. Used place: apply to massive stacking level carrying cargo/discharge goods single/double tray, is similar to the flat cement and asphalt pavement. 5. Strict Quality Inspection System: ISO9001-2008, CE approved.
Send Inquiry
Product Introduction





Advantages:

1, Low door frame and low frame design, easy to pass elevator room and cold storage.


2, Front double drive and wet type brake,  effectively prevent the influence of dampness and refrigeration on the brake, front double drive can perfectly face the wet road condition.


3, Long battery working life, Optimitize the vehicle macthing degree, standard configuration with LED lights, EPS steering, AC motor, and AC motor high performance battery.



kuaiche


3-wheel-counter-balance-electric-forklift-for (1)




3 _副本





Other products


forklift 1

stacker

forklift 2

forklift4

forklift 3

forklift

壮观产品图 (1)(1)

壮观产品图 (2)











The Failure analysis of gear pump.
Phenomenon
cause
exclusion methods
The discharge quantity of oil is little
the level of oil tank is low
add oil to stipulates quantity
the Pipeline or oil leak detector was
Clean or replace
The Pressure of Pump is low
Lining board damaged
replace
spill valve improperly adjusted
Adjust the pressure of spill valve by pressure gage to specified value
System with air
Re-tighten the oil-absorbing side pipeline
There is noise when Operating
oil suction pipe damaged or Oil filter blocked
Check the pipe or Maintenance the oil filter
Loose or leak of the suction side
Tighten the loose
Oil viscosity is too high
Using viscosity oil compatible with operating temperature of the pump
There are bubbles in the oil
Find the cause of bubbles and to take measures
The oil spilled from the pump
Pump oil seal or seal damaged
replace
The pump is damaged
replaces
The Failure analysis of multi-way valve
Fault
cause
treatment method
Lifting oil pressure is not high
Slide-valve block
Cleaning after decomposed
Oil hole plug
Cleaning after decomposed
Shock pressure rise slowly
Slide-valve block
Cleaning after decomposed
Exhaust is not fully
Full exhaust
Steering oil pressure is greater than the specified value
Slide-valve block
Cleaning after decomposed
Oil hole plug
Cleaning after decomposed
Amount of oil does not meet the provisions
spill valve adjusted wrong
adjust
noise
spill valve adjusted wrong
adjust
Sliding surface wear
Replace the spill valve
External oil leak
O-ring aging or damaged
Replace o-shape sealing ring
The set pressure is low
Spring broken
Replace spring
Valve seat damage
Adjust or replace the spill valve
Internal leak oil
Valve seat damage
Fix seating faces
The set pressure is high
Valve block
Cleaning after decomposed
The analysis of Battery failure
Fault
Feature
cause
Remedial and preventive measures
Plate can be reversed sulphation
1. Reduced battery capacity.
2. Electrolyte density lower than normal.
3. Start charging and the battery when the charging is completed the Terminal voltage is too high.
4.Charging early bubble or charge so that they have a bubble.
5.When charging,the electrolyte temperature rises too quickly.
1.Insufficient charging at the beginning.
2. Has been discharged or placed half a discharge status for too long.
3. Insufficient long-term charge.
4. Often excessive discharge.
5. Electrolyte density exceeds the specified value.
6. Electrolyte fluid is too low, cause plates were exposed on liquid surface.
7. do not be balanced charged in time.
8. The discharge current is too large or too small.
9. The electrolyte not pure.
10. Internal short circuit of local effects or leakage.
1. the Light to adopt a balanced charge approach.
2. serious to use of "water therapy".
3. can't over discharge
4. The electrolyte density can't exceed the specified value.
5. The electrolyte liquid surface height and impurity content should be within the prescribed scope.
short circuit Inside the battery
1. When charging the battery, the terminal voltage is very low, even closer to zero.
2. End of charging ,the bubbles fewer or no bubbles.
3. When charging, the electrolyte temperature rise faster and the density rise slowly not even rising.
4. open circuit voltage of Battery is low,Discharge prematurely to cause the voltage terminated
5. Self-discharge serious.
1. Plate bending, swelling or loss of active substances, leading to partition damage, causing a short circuit
2. Sediment too much, resulting in short-circuit.
3. the conductive material Fall into the battery,resulting in short-circuit.
1.Replacement clapboard.
2. To remove sediment and conductive material.
3. Replace plate.

1. Reduced battery capacity.
2. Electrolyte turbidity.
3. Too much sediment.
1. Electrolyte does not meet the quality standards.
2. Charging and discharging too frequently or over charge, over discharge.
3. When charging, the electrolyte temperature is too high.
4. When discharging,the external circuit happen short circuit.
The light to remove sediment,The serious to Scrap
