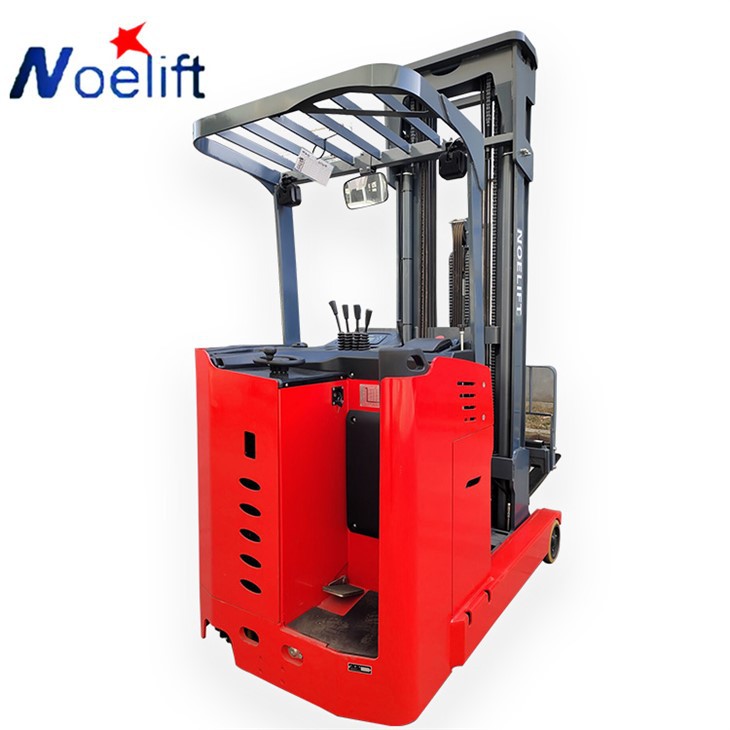

4 Direction Way Electric Reach Forklift Truck

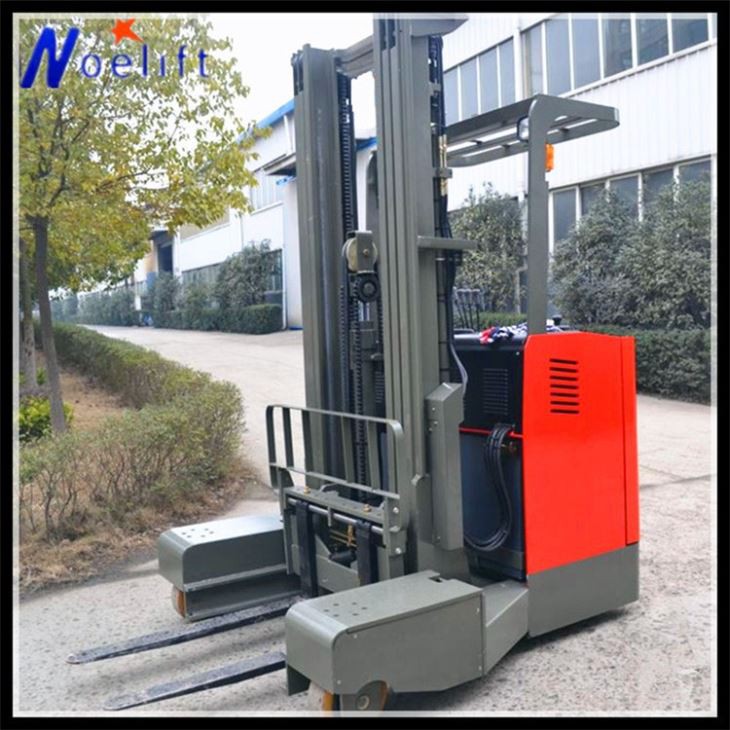

1.5 Ton Electric Reach Forklift Truck

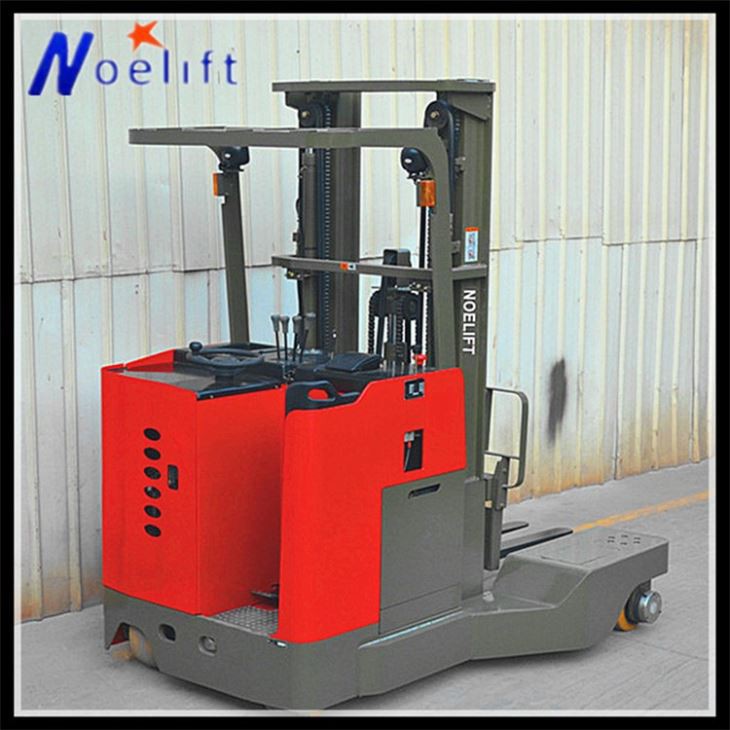

2ton 6000mm 7000mm Electric Reach Forklift Truck

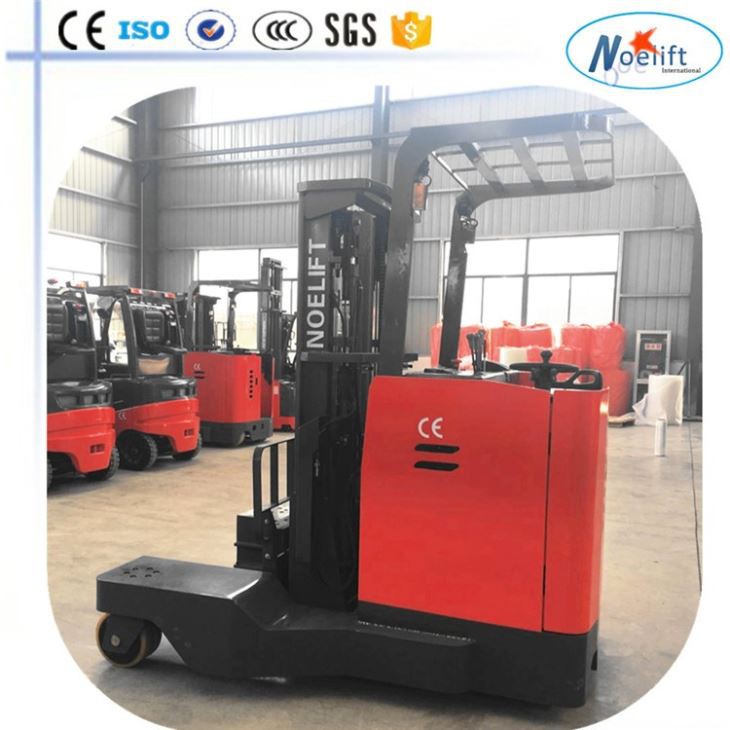

1.5 Ton 2ton 4 Direction Way Electric Reach Forklift
cheap 4 Direction Way Electric Reach Forklift Truck
wholesale 4 Direction Way Electric Reach Forklift Truck

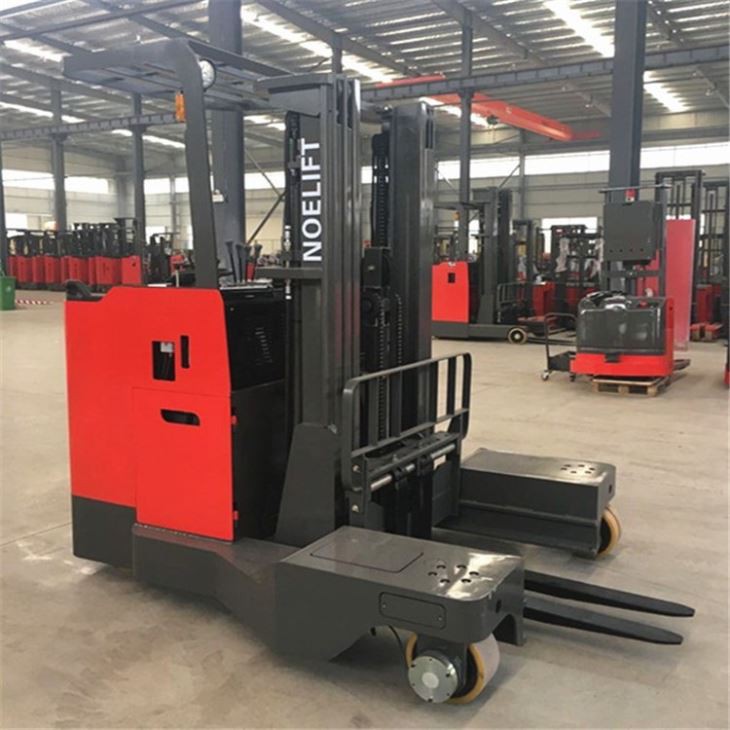

4 Direction Way Electric Reach Forklift Truck
4 direction electric reach truck
TFB Series with AC driving motor.
Rated load capacity(optional): 1500kg,2000kg, 2500kg,
Lifting height(optional): 3000-7200mm. Max. lift height: 7200mm.
Electric Reach Forklift Truck Description
Model: TFB Series. （with AC driving motor.）
Aisle width :2800mm
battery life: 2~3 years
full charge time :8~10 hours
Li battery is available.
Important parameters
|
Electric reach truck |
||||
|
2 |
Model |
TF15-30 |
TF20-30 |
TF25-30 |
|
3 |
Load capacity Kg |
1500 |
2000 |
2500 |
|
4 |
Load center mm |
500 |
500 |
500 |
|
5 |
Max. lifting height mm |
3000 |
3000 |
3000 |
|
6 |
Tilting angle (forward- backward) deg |
3/5 |
3/5 |
3/5 |
|
7 |
Wheel type |
Polyurethane solid tire |
||
|
8 |
Mast forwarding length mm |
560 |
675 |
675 |
|
9 |
Fork size(LxWxT)mm |
1070x100x35 |
1070x122x40 |
1070x122x40 |
|
10 |
Fork spread mm |
220-740 |
265-900 |
265-900 |
|
11 |
Overall length(with forks) mm |
2240 |
2450 |
2450 |
|
12 |
Overall width mm |
1098 |
1258 |
1258 |
|
13 |
Overall height mast closed mm |
2100 |
2100 |
2100 |
|
14 |
Overall height fork raised(with backrest) mm |
3900 |
3900 |
3900 |
|
15 |
Overhead guard height mm |
2320 |
2320 |
2320 |
|
16 |
Outside turning radius mm |
1615 |
1965 |
1965 |
|
17 |
Min. intersecting aisle(1000*1000pallet)mm |
2608 |
2879 |
2879 |
|
18 |
Max. walking speeds km/h |
7.5/8.5 |
7.0/8.0 |
7.0/8.0 |
|
19 |
Lifting speeds (Loaded/ Unloaded) mm/s |
117/243 |
110/243 |
110/243 |
|
20 |
Grade abitity % |
≤10 |
≤10 |
≤10 |
|
21 |
Total weight( with battery) Kg |
2300 |
2600 |
2600 |
|
22 |
Driving wheel mm |
Φ343*108 |
Φ343*108 |
Φ343*108 |
|
23 |
Front wheel mm |
Φ267*114 |
Φ267*114 |
Φ267*114 |
|
24 |
Balance wheel mm |
Φ180*76 |
Φ180*76 |
Φ180*76 |
|
25 |
Ground clearance mm |
80 |
80 |
80 |
|
26 |
Service brake |
mechanical |
||
|
27 |
Parking brake |
mechanical |
||
|
28 |
Battery V/Ah |
48/300 |
48/400 |
48/400 |
|
29 |
Charger V/A |
48/40 |
48/50 |
48/50 |
|
30 |
Driving motor Kw |
5.5(AC) |
5.5(AC) |
5.5(AC) |
|
31 |
Lifting motor Kw |
6.3 |
7.5 |
7.5 |
|
32 |
Control system |
MOSFET |
||
certification
Company Information
NOELIFT EQUIPMENT CO.,LTD, works in forklift industrial for more than 10 years. we have agent in Malaysia and Peru and Canada. if you are looking for long-term cooperation, welcome to grow up together with us!
